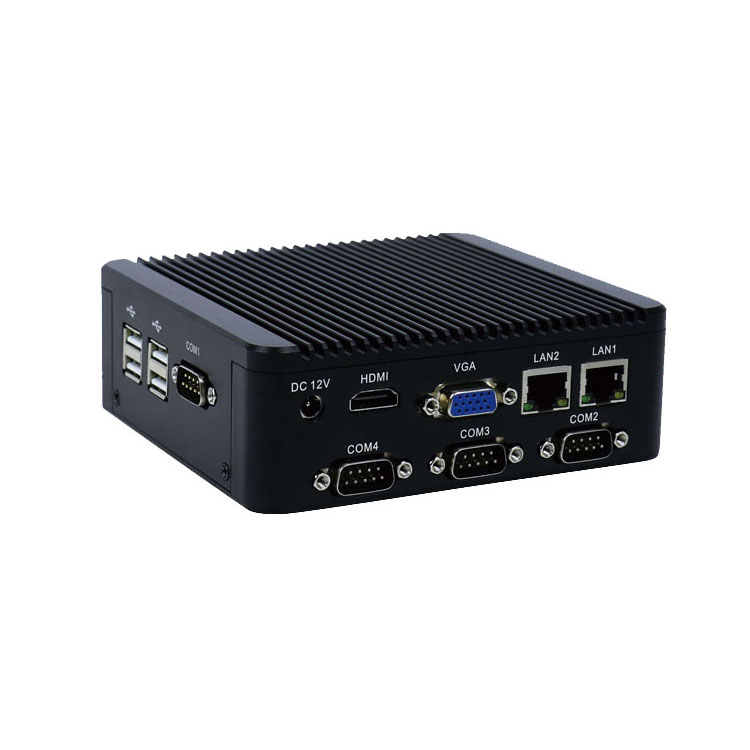

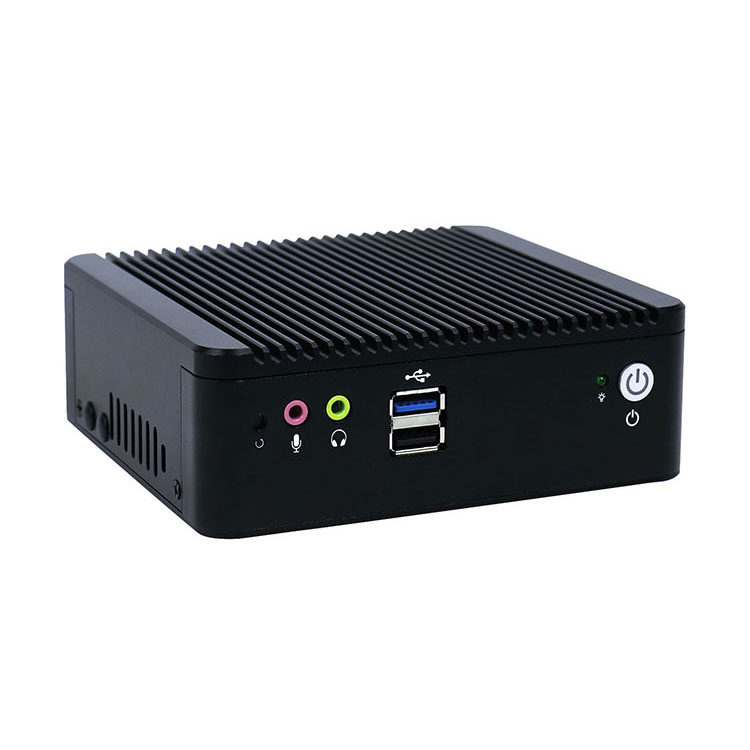

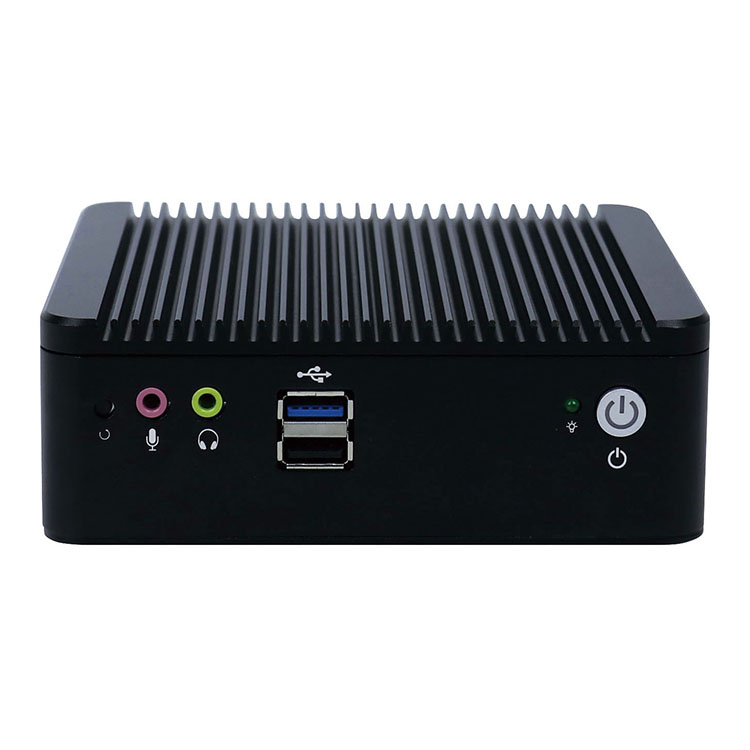

DC 12V mini pc with 2 ethernet

Quick Details:

CPUIntel J1900Hard Drive32/64/128GB ssd
NetworkIntel i211-ATOSWin7/10,Linux,Ubuntu
MaterialAluminum AlloyPower SupplyAC 100-240V, DC 12V

1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Onboard Intel Celeron J1900 quad core processor
4. Onboard DDR3L 1600MHz 4GB RAM
5. Support 1x MSATA, 1x 2.5'' SSD/HDD
6. Support 4x RS232
7. Support 1x USB3.0, 5x USB2.0
8. Compatible Windows 7/8/10, Linux.


Model: SM11
CPUOnboard Intel Celeron J1900, quad core, 2.0GHz
MemoryOnboard DDR3L 1600MHz 4GB RAM
StorageSupport 1x MSATA, 1x 2.5'' SSD/HDD
Display1x VGA, 1x HDMI
Display ChipIntegrated Intel HD Graphics
Network2x Intel i211-AT 1000M LAN

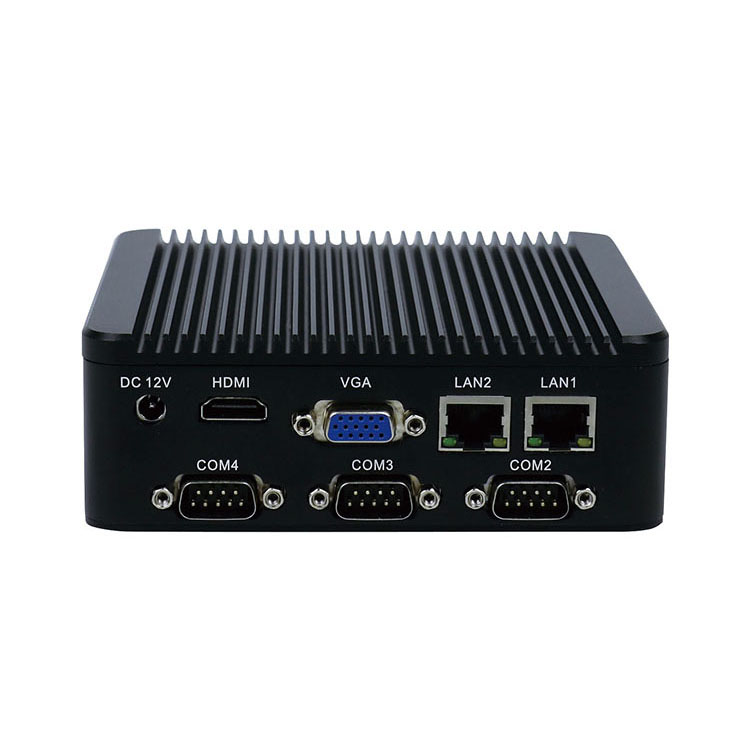

I/O Interface1x USB 3.0, 5x USB 2.0, 4x COM, 1x HDMI, 1x VGA, 2x RJ45 LAN, 1x RST button, 1x MIC IN, 1x Line out, 1x DC 12V port, 1x Power switch,
Expansion slotSupport 1 Mini PCIE slot (support WiFi Bluetooth optional, not include in standard quotation)
Support 1 Mini PCIE slot (Support MSATA)
Operation SystemSupport Windows 7/8/10,  Linux, Ubuntu, Debian etc.
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption≤40W
MaterialAluminum Alloy
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage: -10 to 60°C
Relative humidity0%~95% , non-condensing
Packing Details
Net weight0.6kg
Gross weight1.6kg
Product Dimension13.4*12.4*4.6cm
Packing size25*25*10cm

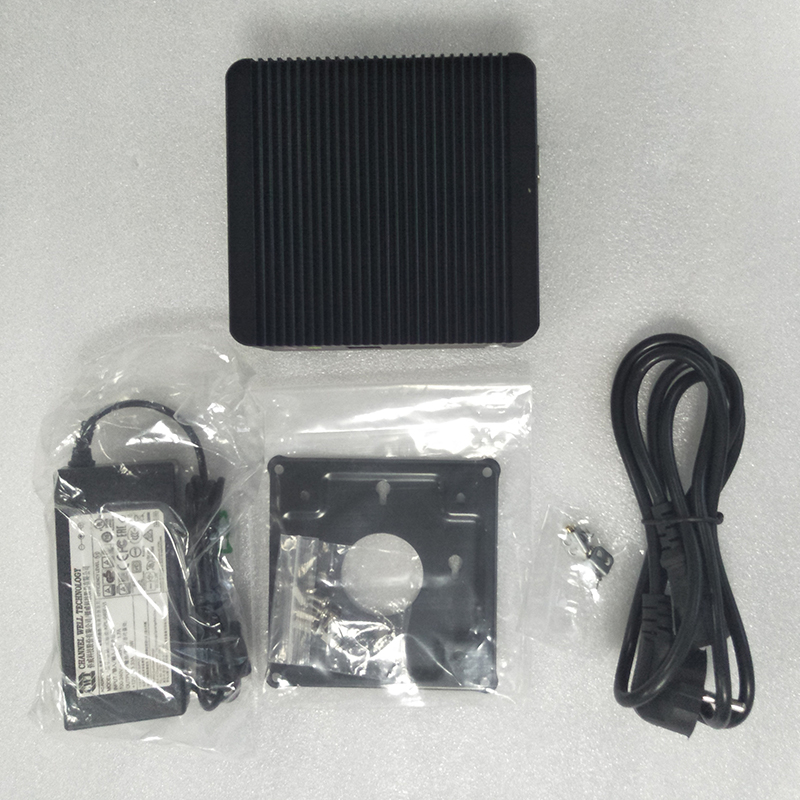

AccessoriesPower adapter, VESA brackets, screws, user manual, warranty card
Mounting (options)VESA bracekts (free)
open frame brackets (optional)
Warranty1 year warranty
