Features
2x RS-232 serial port
1xDDR3 SODIMM, Max 8GB memory
VGA+HDMI dual display, synchronous/asynchronous mode
Dual storage, 1 2.5" HDD, 1 mSATA
One-key restore, watchdog, diskless boot
low power fanless
Industrial grade working temperature -20℃~70℃
Specification
| Model: SM13 | |
| PC | |
| CPU | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 2.7GHz, Fanless |
| CPU Optional | Intel® Celeron J6246/J6413, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 3.0GHz, Fanless |
| CPU Optional | Intel® Celeron N100, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 3.1GHz, Fanless |
| Memory | 1x DDR3 SODIMM slot, supports up to 8GB |
| Storage | 1x MSATA 1x SATA HDD/SSD 1x M.2 (J6412/N100) |
| Display | 1x HDMI, 1x VGA(J6412/N100 be with 2xHDMI, 1x DP) |
| Network | 2 x GbE RJ45 Realtek 8111H |

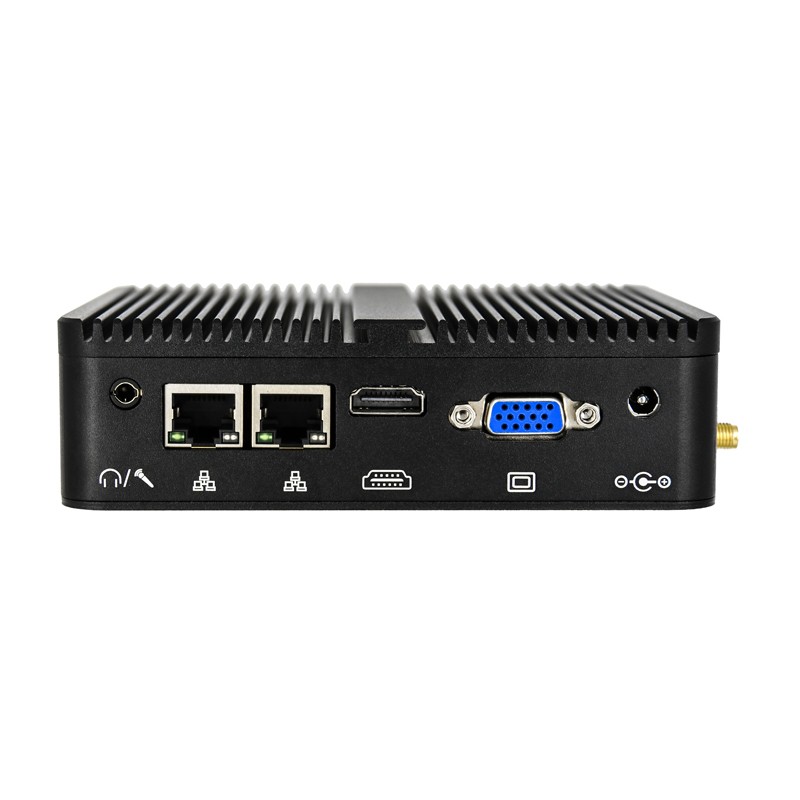

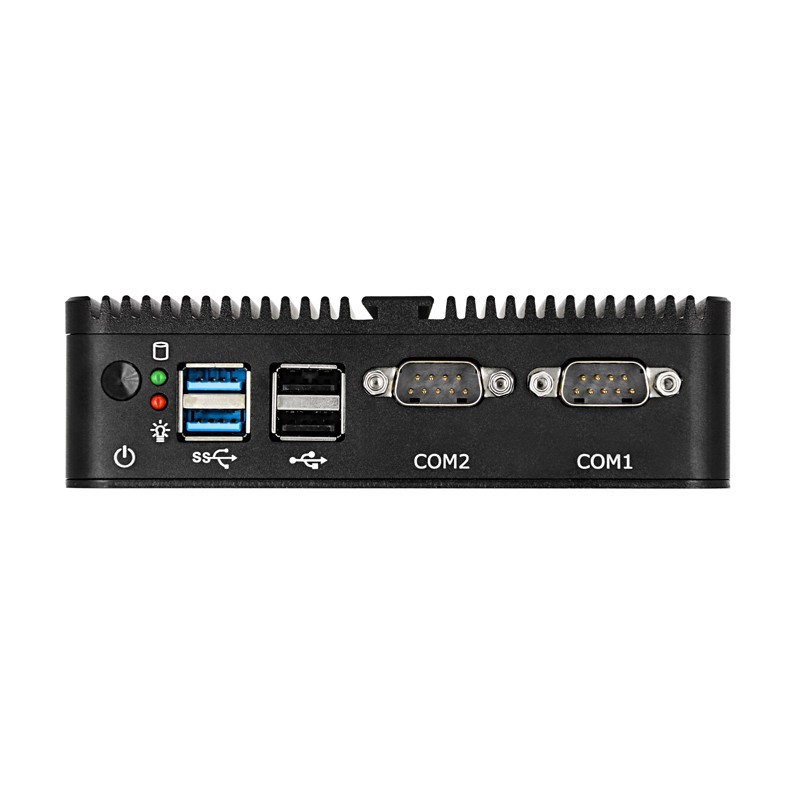

| I/O | 2x USB2.0, 2x USB3.0, 2x DB-9 COM1&COM2(RS-232), 1x Audio Line-out, 1x Audio Mic-in, 1x Power Button, 1x Power LED, 1x HDD LED, 1x Power input, 2x Antenna port, 2x LAN |
| Expansion Slot | Mini-pcie x1, Full card Support WIFI Bluetooth |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Windows® 10/11, WES 10, LINUX |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤15W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, Storage: -30 to 80°C, surface air flow |
| Relative humidity | 10%~95% , non-condensing |
| Packing Details | |
| Net weight | 1 kg |
| Gross weight | 2 kg |
| Product Dimension | 135 x 127x38.7 mm |
| Packing size | 30*20*12cm |
| Accessories | Power adapter, Screws |
| Other | |
| Mounting (options) | Wall mounting |
| Desktop installation | |
| Warranty | 3 years warranty |
