Features
Optional Intel® 7th/8th Generation Core i5/i7 CPU
2xDDR4 SODIMM, Max 16GB memory
VGA+HDMI dual display, synchronous/asynchronous mode
Dual storage, 1 2.5” HDD, 1 mSATA
9~36V wide voltage input
Low power fanless
Industrial grade working temperature -20℃~70℃
All connectors on-board
Specification
| Model: SM12 | |
| PC | |
| CPU | Intel® Core i5-7200U, 2 Cores, 4 Threads, Base 2.5GHz, Turbo 3.1GHz, Fanless |
| CPU Optional | Intel® Core i7-7500U/7600U, 2 Cores, 4 Threads, Base 2.7GHz, Turbo 3.5GHz, Fanless |
| CPU Optional | Intel® Core i5-8250U/8350U, 4 Cores, 8 Threads, Base 1.6GHz, Turbo 3.4GHz, Fanless |
| CPU Optional | Intel® Core i7-8550U/8650U, 4 Cores, 8 Threads, Base 1.8GHz, Turbo 4.0GHz, Fanless |
| Memory | 2xDDR4 SODIMM, Max 32GB |
| Storage | 1x MSATA 1x HDD/SSD |
| Display | 1x HDMI, 1x VGA |
| Network | 2 x GbE RJ45 Intel® i211-AT |
| I/O | 2x USB2.0, 2x USB3.0, 1x HDMI, 1x VGA, 6 x COM, 1x 8bit GPIO Phoenix Terminal, 1x Audio Line-out, 1x Audio Mic-in, 2x 4Ω 3W amplifier outputs (optional), 1x LVDS (optional), 1x Power Button, 1x Reset Button, 1x Clear CMOS button, 1x Power LED, 1x HDD LED, 1x Power input, 1x SIM card slot, 2x Antenna Ports for WIFI/3G/4G, 1x Phoenix terminal remote switch interface |
| Expansion Slot | 1x Mini-PCIe half card, support WIFI Bluetooth 1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Windows® 7 /8/10,WES 7,LINUX |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤15W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | White |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, Storage: -30 to 80°C, surface air flow |
| Relative humidity | 10%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.5 kg |
| Gross weight | 2.5 kg |

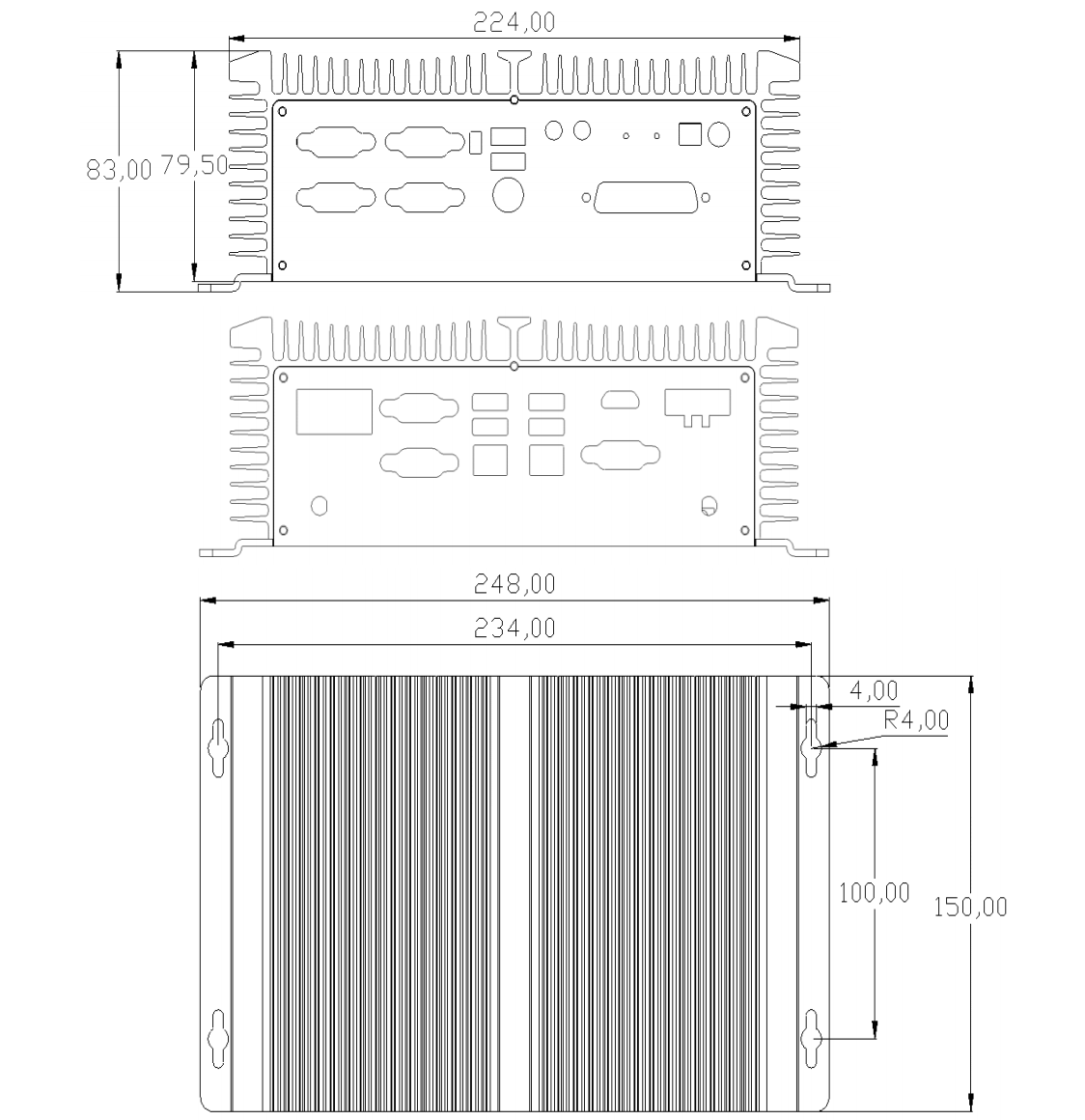

| Product Dimension | 248 x 150 x 83 mm |
| Packing size | 30*20*12cm |
| Accessories | Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws |
| Other | |
| Mounting (options) | Wall mounting |
| Embedded mount | |
| Warranty | 3 years warranty |
