Features:
Optional Intel 4th/5/6/7/8/10/11/12/13th Gen Core i3/i5/i7 CPU
Gen 4/5 - 1xDDR3L SODIMM , max 8GB
Gen 6/7/8/10/11 - 2xDDR4 SODIMM, max 64GB
Gen 12/13 - 2xDDR5 SODIMM, max 64GB
6 * COM serial ports (4 of which support RS485/RS442)
4x Intel i210/i211/i229 Gigabit LAN, 10x USB
One-key restore, watchdog, diskless boot
low power fanless
Industrial grade working temperature -20℃~60℃
All connectors on-board
Specification
| Model: SM10 | |
| PC | |
| CPU | Intel® Core i5-4278U, 2 Cores, 4 Threads, Base 2.6GHz, Turbo 3.1GHz, Fanless |
| CPU Optional | Intel® Core i7-4578U, 2 Cores, 4 Threads, Base 3GHz, Turbo 3.5GHz, Fanless |
| CPU Optional | Intel® Core i3-6157U, 2 Cores, 4 Threads, Base 2.4GHz, Turbo 3.0GHz, Fanless |
| CPU Optional | Intel® Core i5-7287U/7267U, 2 Cores, 4 Threads, Base 2.3GHz, Turbo 3.6GHz, Fanless |
| CPU Optional | Intel® Core i7-7560U, 2 Cores, 4 Threads, Base 2.7GHz, Turbo 3.5GHz, Fanless |
| CPU Optional | Intel® Core i5-8259U/8350U, 4 Cores, 8 Threads, Base 2.6GHz, Turbo 4.2GHz, Fanless |
| CPU Optional | Intel® Core i7-8560U/8569U, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.7GHz, Fanless |
| CPU Optional | Intel® Core i5-10210U/10310I, 4 Cores, 8 Threads, Base 1.6GHz, Turbo 4.2GHz, Fanless |
| CPU Optional | Intel® Core i7-10610U10810U, 6 Cores, 12 Threads, Base 1.1GHz, Turbo 4.7GHz, Fanless |
| CPU Optional | Intel® Core i5-1135G7, 4 Cores, 8 Threads, Base 2.4GHz, Turbo 4.2GHz, Fanless |
| CPU Optional | Intel® Core i7-1165G7/1185G7/1195G7, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.7GHz, Fanless |
| CPU Optional | Intel® Core i5-1235U/1245U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.4 GHz, Fanless |
| CPU Optional | Intel® Core i7-1265U/1255U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 5.0 GHz, Fanless |
| CPU Optional | Intel® Core i5-1335U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.4 GHz, Fanless |
| CPU Optional | Intel® Core i7-1355U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 5.0 GHz, Fanless |
| CPU Optional | Intel® Core i7-1370P, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 5.0 GHz, Fanless |
| Memory | 4gen/5gen 1xDDR3L SODIMM, Max 8G 6/7 gen 1xDDR4 SODIMM, Max 16G 8/10/11gen 2xDDR4 SODIMM, Max 64G 12/13gen 2xDDR5 SODIMM, Max 64G |
| Storage | 1x MSATA 1x M.2 NVME 2280(6/7/8/10/11/12/13gen) 1x 2.5 inch SATA |
| Display | 1x HDMI, 1x VGA |
| Network | 2 x GbE RJ45 Intel i211/i210//i229(4 x GbE RJ45 Intel i211/i210//i229) |

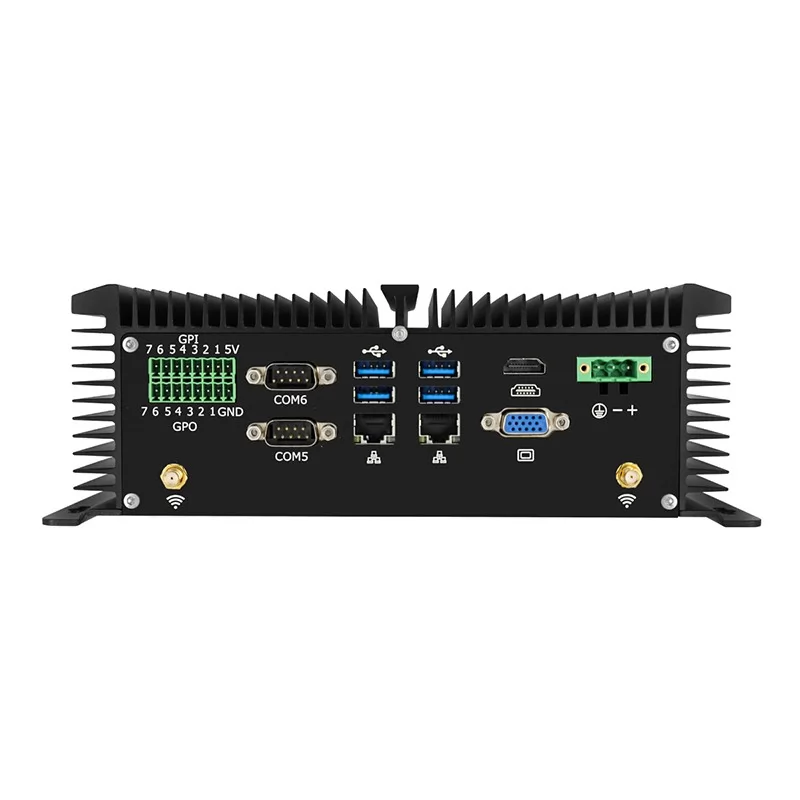

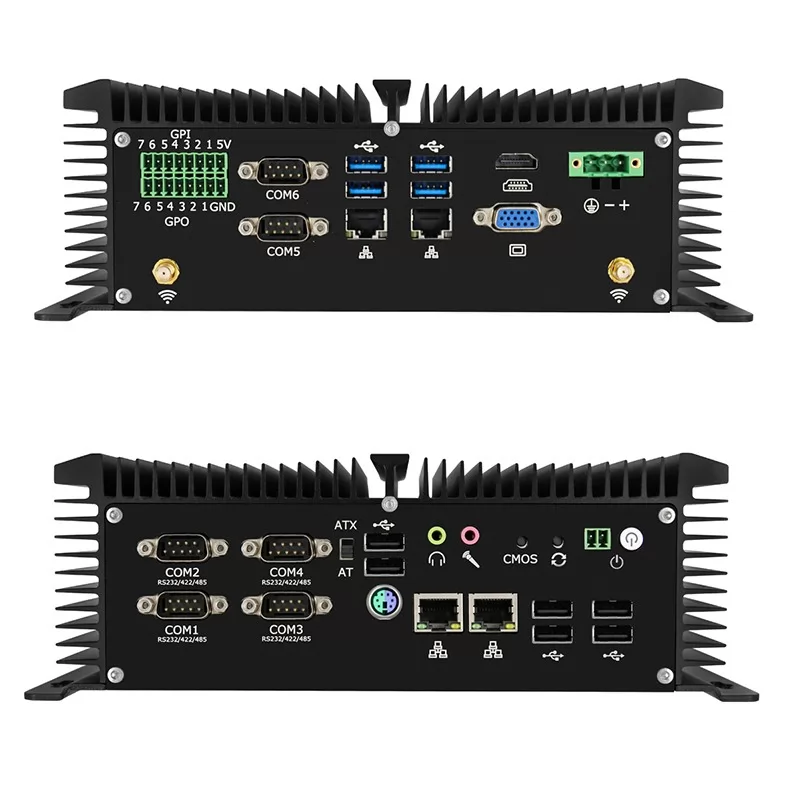

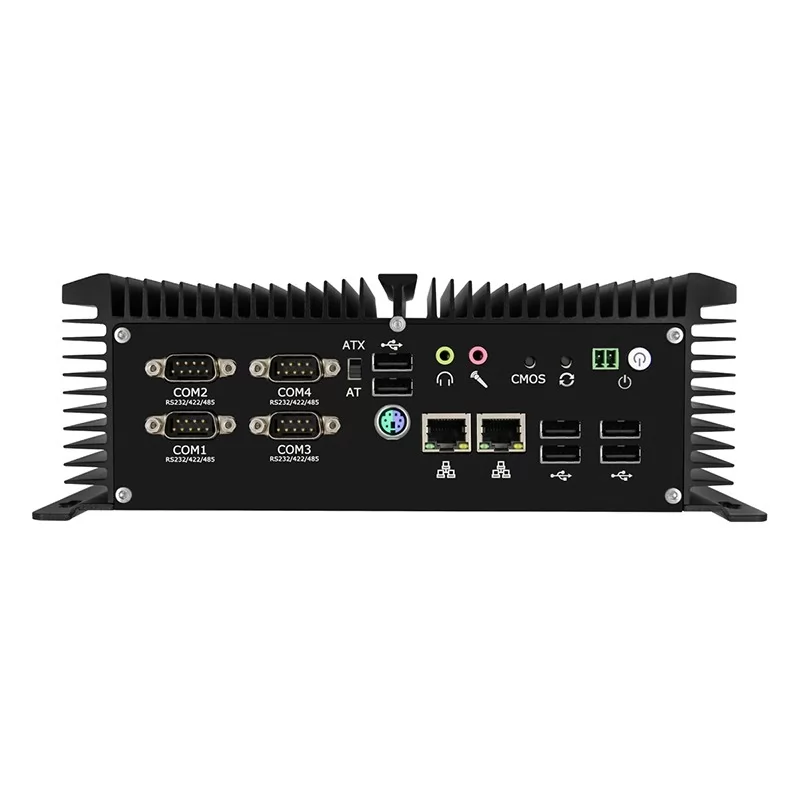

| I/O | 4x USB3.0/3.2, 6x USB2.0, 6x DB9 COM(COM1-COM4 Suports RS232/RS485/RS422, COM5 COM6 supports RS232), 1x HDMI, 1x VGA, 1x PS2 (Keyboard and mouse in one), 14x GPIO(7 input, 7 output), 1x Power Button,1x Reset Button,1x Clear CMOS Button, 1x 3pin Power phoenix，Support: 9-36V DC, 1x 3.5mm Jack, 1x Mic in, 1x ATX/AT, 2x Antenna port, for WIFI/3G/4G, 4xLAN(2 x Intel i211，2 x Intel i255V) |
| Expansion Slot | 1x Mini-PCIe half card, support WIFI Bluetooth 1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth 1x Expand IO, support LPC, USB, PCIE |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Windows® 7/8/10/11, WES 7/10, LINUX |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤20W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, Storage: -30 to 70°C, surface air flow |
| Relative humidity | 10%~95% , non-condensing |
| Packing Details | |
| Net weight | 2.2 kg |
| Gross weight | 3.5 kg |
| Product Dimension | 249 x 150 x 86 mm |
| Packing size | 30*20*12cm |
| Accessories | Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws |
| Other | |
| Mounting (options) | Wall mounting |
| Embedded mount | |
| Warranty | 2 years warranty |
