Features
1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Intel Core i3 7100U, i5 7200U.

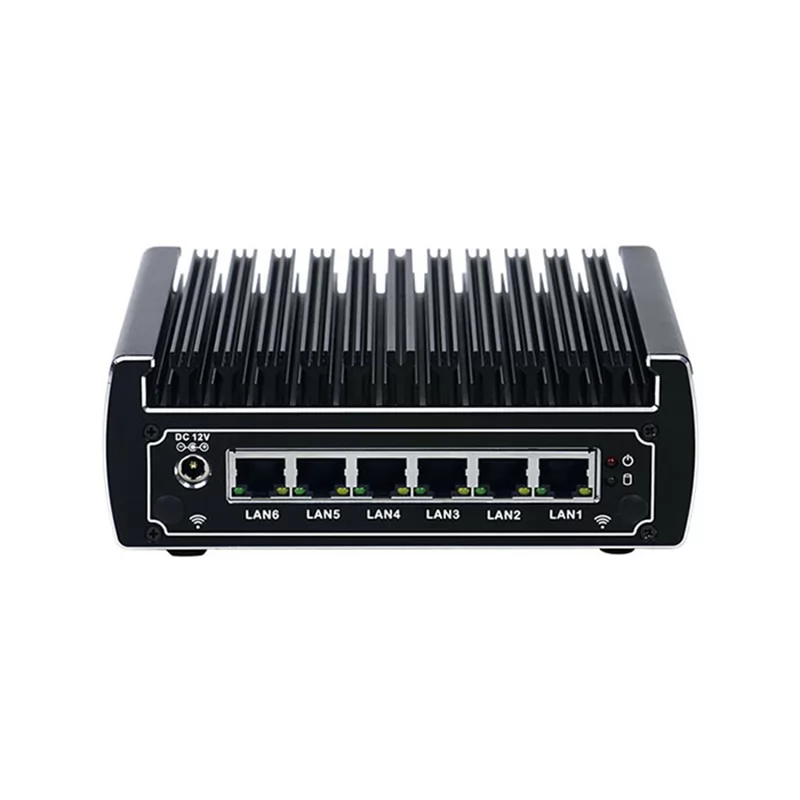

4. 1x HDMII + 6x LAN + 4x USB.
5. Support wifi and bluetooth optional (Not included in standard quotation).
6. Compatible Win7/8/10, Linux.
Specification:
| Model: SM13 | |
| PC | |
| CPU | Intel Core i3 7100U/ i5 7200U |
| Memory | 4/8GB |
| Storage | 64/128/256GB |
| Display | 1x HDMI |
| Display Chip | Integrated Intel HD Graphics 610/620 |
| Network | 6 x Intel 82583V 10/100/1000M LAN |
| I/O Interface | 4x USB 3.0, 1x H DMI, 6x RJ45 LAN,1x DC 12V port |
| Expansion | 1x Mini-PCIE, support MSATA and WiFi (WiFi is not included in standard quotation) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | operating: -10 to 50°C, storage: -10 to 50°C |
| Relative humidity | 0%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.6kg |
| Gross weight | 2kg |
| Product Dimension | 15.5*12.7*5.3cm |
| Packing size | 19*15*15cm |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Warranty | 1 year warranty |
