Features

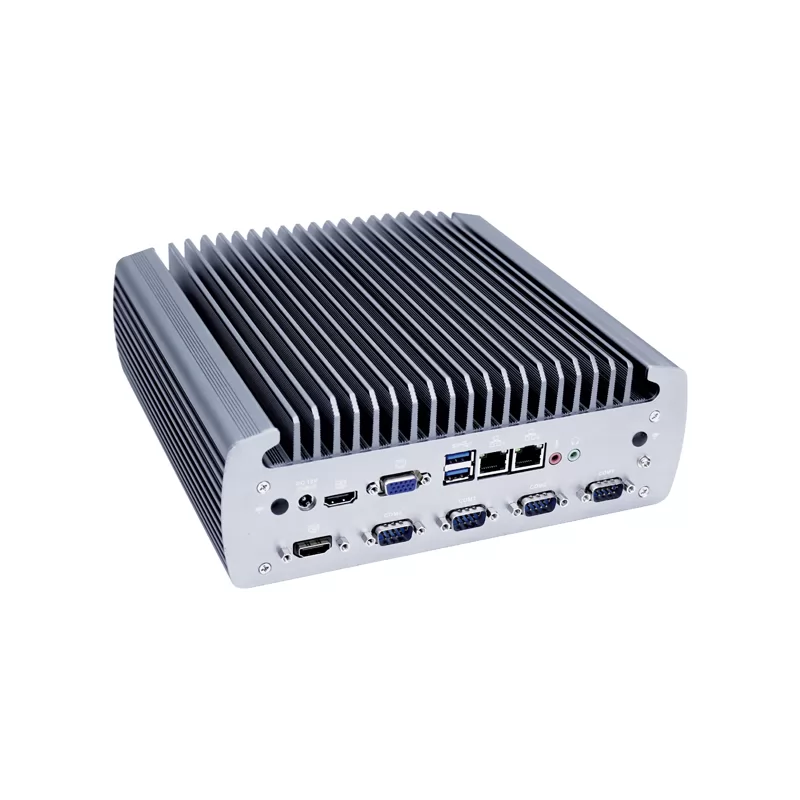

1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Intel Core i7 8700T, 6 core, 2.4 GHz
4. Support 2*DDR4 memory slot, Max. Support 32G.
5. Support 1*M.2 slot, 2*2.5”HDD optional
6. Support 6*COM (1*RS232/RS422/RS485 optional.)
7. Support 2 HDMI.
8. Support 12-19V wide voltage. (9V-36V wide voltage optional)
9. Support WIFI/4G optional.
10. Compatible Windows 7/8/10, Linux.
Specification
| Model: SM605 | |
| PC | |
| CPU | Intel Core i7 8700T, 6 core, 2.4 GHz |
| Memory | 2*DDR4 memory slot, Max. Support 32G |
| Storage | 1*M.2 slot, 2*2.5”HDD |
| Display | 1x VGA, 2x HDMI, (Support synchronous display or asynchronous display) |
| Display Chip | Integrated Intel HD Graphics 630 |
| Network | 2*Intel RTL811 10/100/1000M LAN |
| Front I/O | 6*USB2.0, 2* COM, 1*Metal switch |
| Rear I/O | 1*DC-IN 12V, 2*USB3.0, 2*HDMI, 1*VGA, 2*Intel 1000M LAN, 1* Mic, 1*Line out, 1* DC |
| Expansion Slot | Support 1*M.2 2280 slot（Support M.2 PCIE X4 and M.2 SATA SSD） Support 1*MINI PCIE slot（WIFI/3G/4G choose one from three, embedded SIM socket |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V-19V |
| Power consumption | ≤20W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Grey |
| Operating Environment | |
| Temperature Range | operating: -20 to 60°C, storage: -20 to 60°C, surface air flow |
| Relative humidity | 0%~95% , non-condensing |
| Packing Details | |
| Net weight | 3.5 kg |
| Gross weight | 4 kg |
| Product Dimension | 25.54 * 21.9 * 8.9 cm |
| Packing size | 30*27*15cm |
| Accessories | Power adapter, Wall mount braket, user manual, warranty card |
| Other | |
| Mounting (options) | Embedded mounting |
| wall mounting brackets | |
| Warranty | 1 year warranty |
