Full IP65 Touch Panel PC SC100W

Quick Details:

CPUIntel i5/i7/J4125RAM8GB
Hard Drive128G SSDPanel size10.4"-21.5"
Brightness1000nitsView angle160/170
Power Supply9-36V wide voltageIP-GradeFull IP65


  1. Sturdy and durable aluminum Alloy front bezel + High strength cold rolled steel back case.

  2. Industrial  LCD panel,  wide viewing angle,  high nits, true color.

  3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference.

  4. High performance motherboard, 7x24 continuous operation.

  5. Full sealed and fanless design, full IP65 waterproof , sunlight readable.


CPUIntel® Celeron J4125, Quad Cores, Quad Threads, Base 2.4 GHz, Turbo 2.7 GHz, Fanless
CPU OptionalIntel® Core i5-5200U, Base 2.0 Ghz, Turbo 2.7 Ghz, Fanless
CPU OptionalIntel® Core i5-6300U, Quad Cores, Quad Threads, Base 2.4 GHz, Turbo 3.0 GHz, fanless
CPU OptionalIntel® Core i3-7100U, Dual Cores, Quad Threads, Base 2.4 GHz, Turbo 3.0 GHz, Fanless
CPU OptionalIntel® Core i7-8550u [email protected], Fanless
CPU OptionalIntel® Core i5-10210U 4 Cores, 8 Threads, Base 1.3 GHz, Turbo 4.2 GHz, 8MB Cache, Fanless

J4125: 1x DDR4 SODIMM,  Max 8G DDR4

Core i5/i7: 2x DDR4 SODIMM, Max 64G DDR4

Hard Drive Capacity128GB, 256GB, 512GB, 1TB, 2TB, 4TB, SSD, 500GB, 1TB, 2TB, 4TB HDD Optional
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
NetworkOnboard Realtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI optional

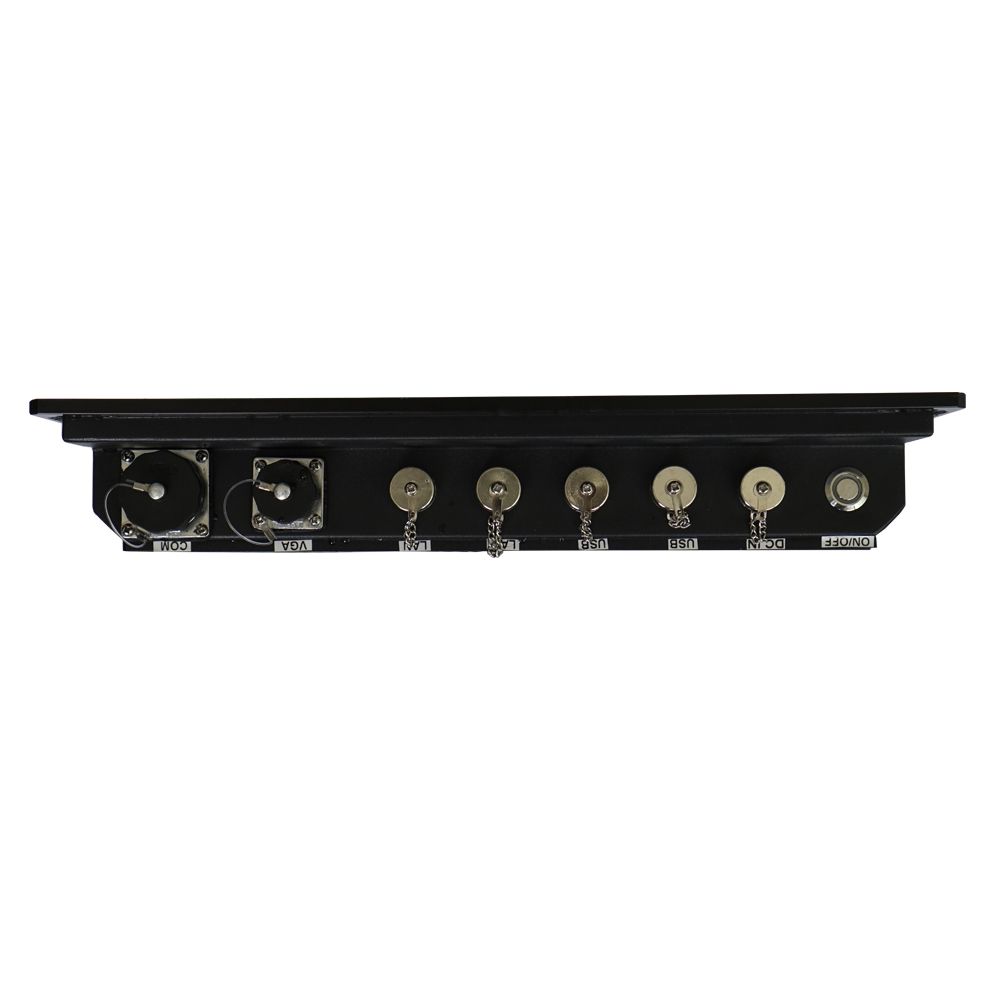

I/O Interface3 xCOM RS232,  2 xLAN,  4xUSB,   1xVGA,   1xHDMI
Operation SystemSupport Windows 7/8/10,  Linux, Ubuntu, Debian etc.
LCD panel
Panel size10.4"-21.5"
Support Color16.7M colors
Brightness (cd/m²)1000 nits,sunlight readable
Response time10ms
Contrast ratio1000:1
View angle80°/80°/85°/85° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch options5 wire resistive touch
Power Supply
External Power SupplyAC 100 - 240V
Working voltage9-36V wide voltage
MaterialAluminum Alloy front bezel + High strength cold rolled steel back case
ColorBlack( white, Silver , color can be customized )
VESA mounting100×100mm
Operating Environment
Temperature Rangeoperating: -10 to 60°C,  storage :-20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Mounting (options)1) provide wall bracket for wall-mounting, VESA 100×100mm
2) provide stable metal holder  to support the monitor
AccessoriesPower adapter,waterproof VGA/HDMI/RS232/LAN/USB cable,touch driver,touch pen
CertificatesCE, FCC, RoHs
Warranty1 year warranty

Available Sizes:

SizeResolutionAspect ratioTouch type
10.4"1024*7684:3no touch/capacitive/resistive
11.6"1920*108016:9no touch/capacitive/resistive
12.1" Widescreen1280*80016:10no touch/capacitive/resistive
12"1024*7684:3no touch/capacitive/resistive
15"1024*7684:3no touch/capacitive/resistive
15.6"1920*108016:9no touch/capacitive/resistive
17"1280*10245:4no touch/capacitive/resistive
17.3"1920*108016:9no touch/capacitive/resistive
18.5"1366*76816:9no touch/capacitive/resistive
19"1280*10245:4no touch/capacitive/resistive
19" Widescreen1440*90016:10no touch/capacitive/resistive
21.5"1920*108016:9no touch/capacitive/resistive

12" All-In-One PC


15" All-In-One PC


17" All-In-One PC


19" All-In-One PC


21.5" All-In-One PC


Full IP65 Touch Panel PC SC100W

Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
