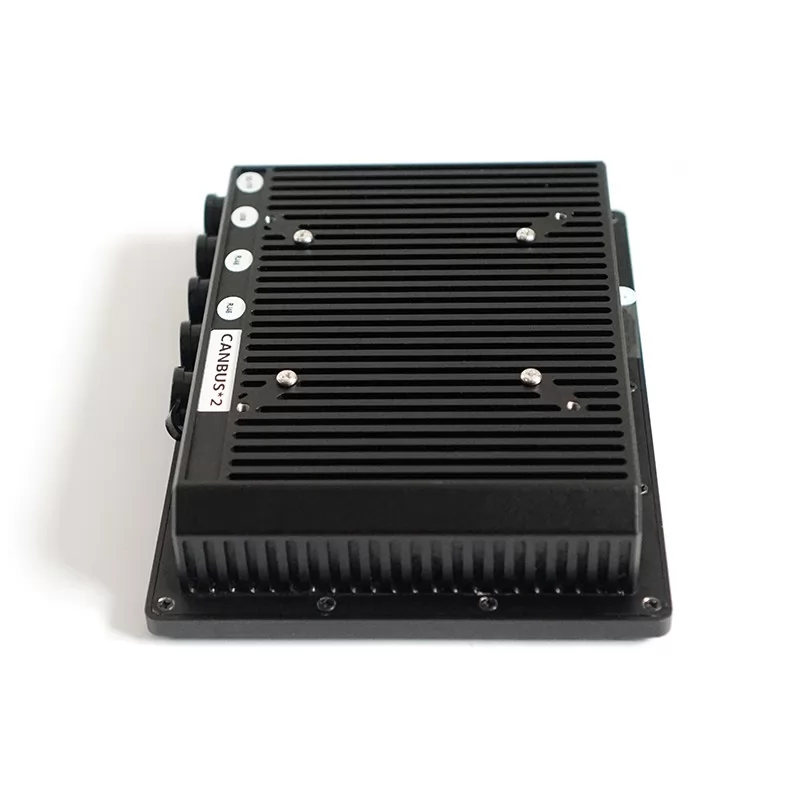

IK07 Impact Protection All In One IP67 Panel PC CANBUS

Quick Details:

CPUIntel J1900RAM4G
Hard Drive64G SSDOperating-20 to 70°C
Brightness300+nitsImpact ProtectionIK07
Touch TypeCapacitiveIP GradeFull IP67


Features

1. Made of sturdy and durable aluminum Alloy front bezel+High strength cold rolled steel back case.

2. Industrial  LCD panel, wide viewing angle, high nits, true color.

3. Fully sealed and fanless design, full IP65 waterproof, Sealed I/O with cable set included.

4. Adopt multi-points PCAP touch panel, high sensitive and fast-response.

5. High performance motherboard, fanless design, 7x24 continuous operation.

7. 9V-36V wide voltage, 3 Pin Phoenix terminal, Shock - proof. Impact Protection Rating: IK07.

8. Customized interface for vehicle use: CANBUS.


Specification


Model:SC07
PC
CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
ChipsetIntel ValleyView SSA-CUnit
Memory4G DDR3
Hard Drive Capacity64G SSD
Hard Drive OptionalSSD: 32G , 128GB, 256GB
HDD: 500GB, 1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI
I/O Interface2xUSB,2xLAN, 1xPhoenix terminal 9-36V
1xCANBUS
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size7"
Resolution1024*600
Aspect ratio16:9
Support Color16.7M colors
Brightness (cd/m²)1000 nits
Brightness controllight sensor for auto dimming
Response time5ms
Contrast ratio800:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Impact Protection RatingIK07
Working life>50 million times
Touch options(5 wire resistive touch optional)
Power Supply
External Power SupplyAC 100-240V
Working voltage9V-36V wide voltage
Power consumption≤35W
Enclosure
MaterialAluminum Alloy
ColorSilver, Black, white, color can be customized
VESA mounting75×75mm/100×100mm
IP gradeFull IP67 waterproof
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight1.65kg
Gross weight3kg
Product Dimension21x15.5x4.65cm
Packing size28x30x14cm
AccessoriesPower adapter, waterproof LAN/USB cable/Power cord, CANBUS cable
Other
Mounting (options)Wall mounting brackets (optional)
Desk stand holder (optional)
Warranty1 year warranty
CertificateCE, FCC, RoHS
