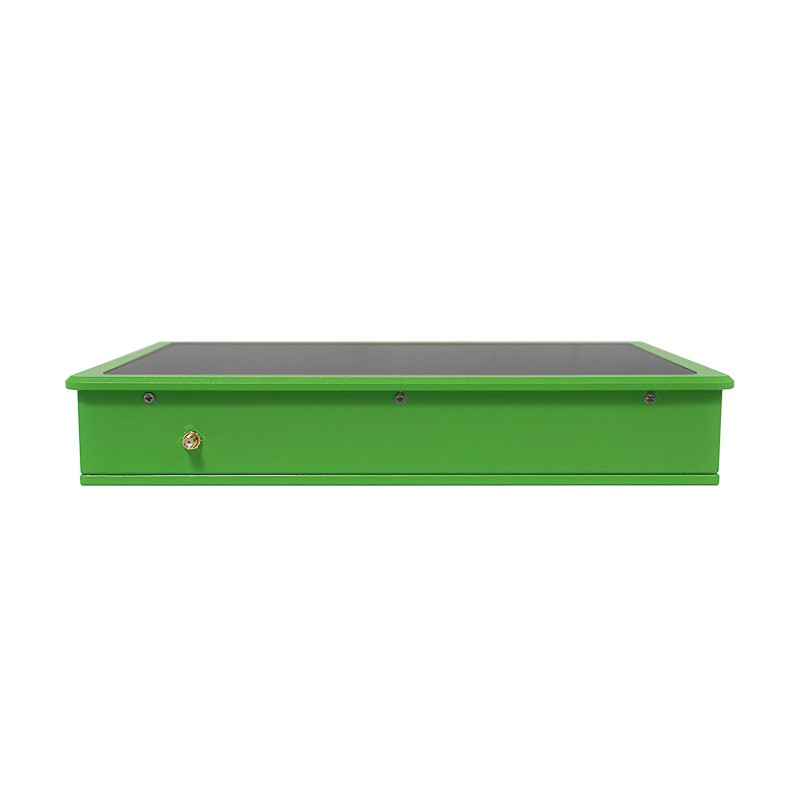

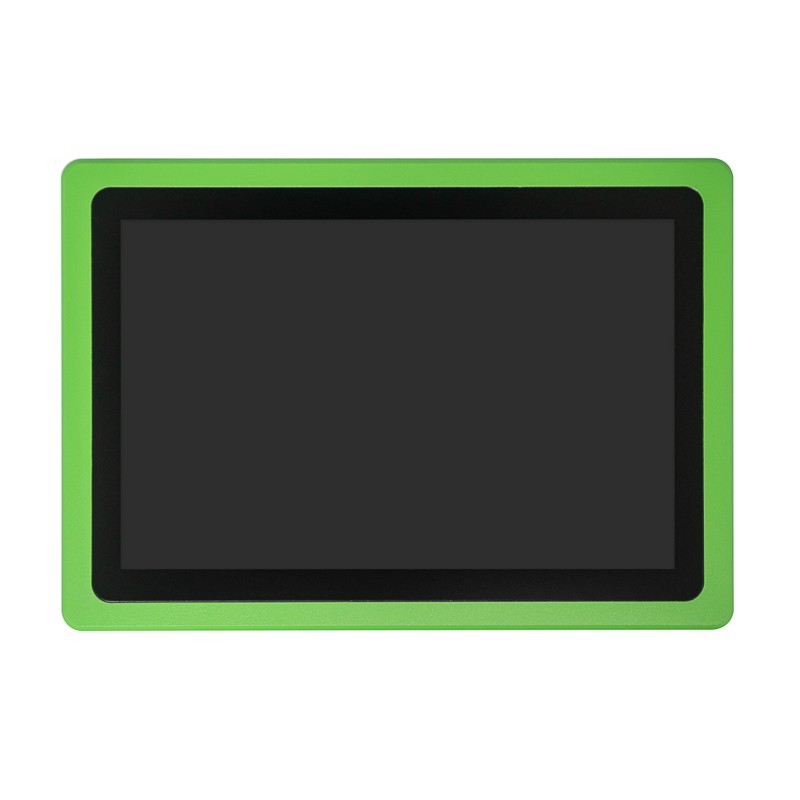

Customized Panel PC IP65 1280*800 Optical Bonding Screen

Quick Details:

CPUCore I5 8250URAM16G DDR4
Hard Drive256G SSDTouchCapacitive
Brightness1000 nitsScreen and GlassOptical bonding
FeatureAnti-GlareIP GradeFull IP65


Feature

  1. Made of sturdy and durable aluminum Alloy front bezel, High strength cold rolled steel back case.

  2. 12.1 inch 1280*800 Industrial  LCD panel, 176°/176° wide viewing angle.

  3. The backlight up to 1000 nits, and the exterior is covered with anti-glare glass, sunlight readable.

  4. Optical bonding technology is used between the LCD screen and the touch screen, true color.

  5. Full IP65 waterproof, suitable for harsh environments.

  6. Adopt 10 points capacitive touch screen, anti-interference.

  7. High performance motherboard, fanless design, 7x24 continuous operation.


Specification


Model:SC121W
PC
CPUIntel® Core I5-8250U, Quad core, 8 threads, Base1.6GHz turbo 3.2 GHz, fanless
ChipsetIntel ValleyView SSA-CUnit
Memory16G
Hard Drive Capacity256G SSD
Hard Drive OptionalSSD: 32G, 128GB, 256GB, 1TB
HDD: 500GB, 1TB, 2TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1*Realtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI ( INTEL WIFI 6GEN AX200 MODEL) with AX

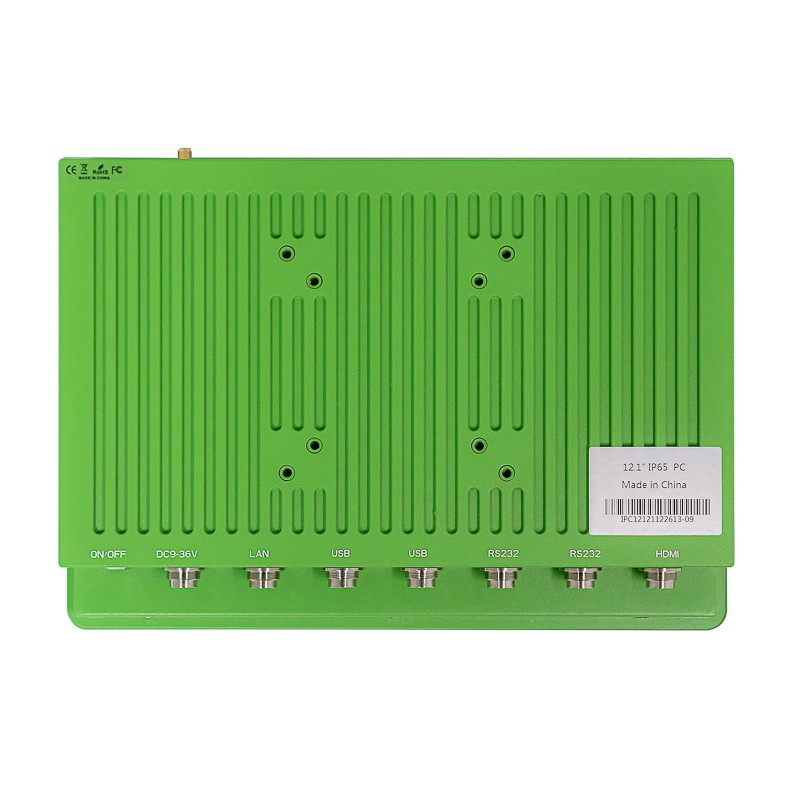

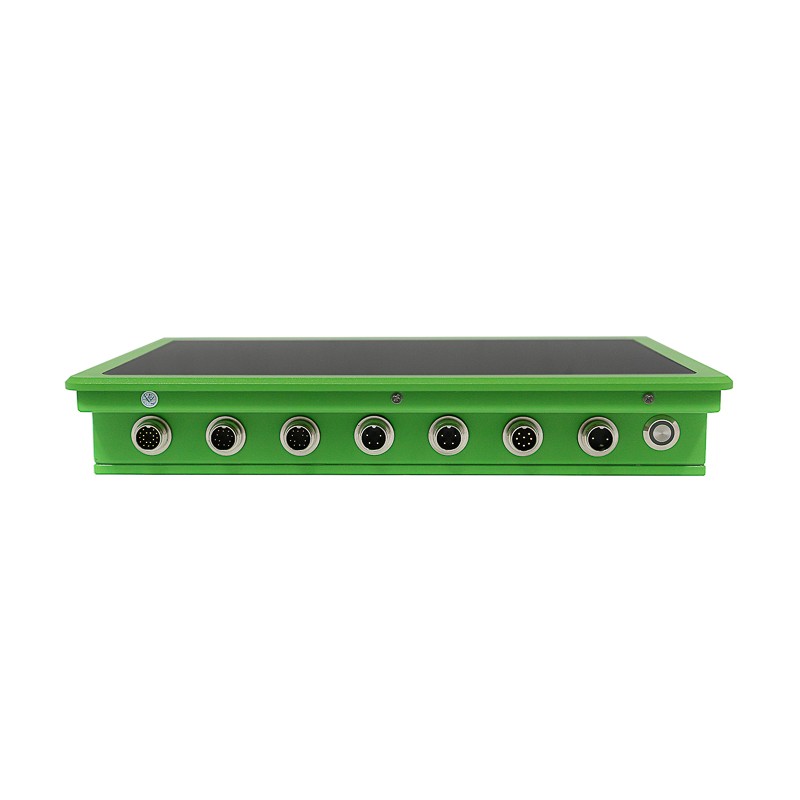

I/O Interface2*USB, 2*COM,1*RJ45
1*HDMI, 1*POWER DC
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size12.1"
Resolution1280*800
Aspect ratio16:10
Support Color16.7M colors
Brightness (cd/m²)1000 nits, sunlight readable
Response time5ms
Contrast ratio1000:1
View angle88°/88°/88°/88° (R/L/U/D)
Screen and GlassOptical bonding
GlassAnti-Glare glass
Touch panel
Touchscreen TypeEETI Capacitive touch
Touch InterfaceUSB (RS232 optional)
Touch response time<8ms
Luminousness90%
Surface Hardness7H
Working Life >35 million times
Touch options(5 wire resistive touch optional)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 9-36V
Electric Current1.8A-3.5A
Power consumption≤45W
Enclosure
MaterialAluminum Alloy front bezel+High strength cold rolled steel back case
ColorNo woodgrain texture RAL6018 Yellow green for Glossy Chassis and bezel
VESA mounting75x75mm/100x100mm
IP gradeFull IP65 waterproof
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight3 kg
Gross weight6 kg
Product Dimension31.8x25.6x5cm
Packing size41x35x17cm
AccessoriesPower adapter, waterproof VGA/RS232/LAN/USB cable/Power cord, Wall mount
Other
Mounting (options)embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty1 year warranty
CertificateCE, FCC, RoHS


Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance
