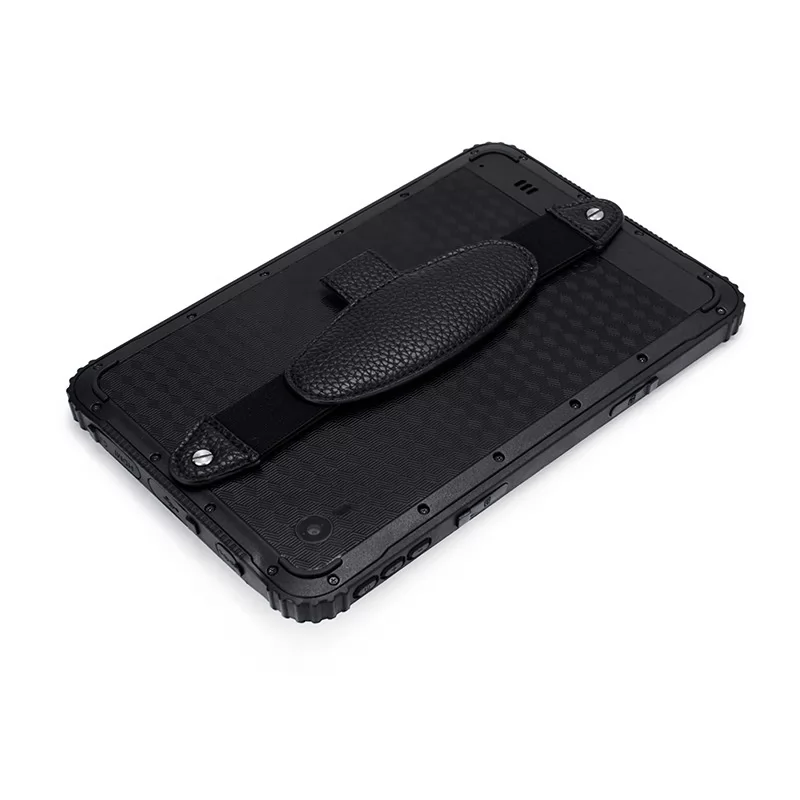

Industrial Tablet PC Rugged 2D Barcode Scanner

Quick Details:

CPUIntel Cherrytrail Z8350RAM2GB
Hard Disk32GBScreen8"
Brightness450nitsTouch TypeCapacitive
Battery3.7V/7500mAhIP GradeIP67


Feature

  1. Support Windows 10 system;

  2. Support standard USB3.0 connector;

  3. Optional with Docking charger docking extension;

  4. Support NXP NFC(13.56M);

  5. Support GPS navigation;

  6. Rugged IP67 protection level;

  7. Support  high strength Glass Touch Panel;

  8. Support Wrist Strap.


Specification


Model:R-I88KLH
PC
CPUIntel cherrytrail Z8350, 1.44Ghz-1.92GHz
GPUIntel® HD Graphics
RAM2GB, Optional: 4GB
SSD32GB, Optional 64G/128G
G_sensorGravity acceleration sensor
WIFIWIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG
BluetoothBT4.2 (BLE) class1 transmission distance: 10m
3GIC: H350-A30: WCDMA (900/2100MHz), GSM (900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.7Mbps, LGA interface.
4GOptional: EC25-EC (Europe), LTE FDD: B1/B3/B7/B8/B20/B28A, WCDMA: B1/B8, GSM: B3/B8
GPSU-blox NEO-7; Capture sensitivity: -160 dBm; Cool Start Time:<50 seconds, Hot start time:<28 seconds, frequency: 0.25 Hz~10 MHz (configurable)
CameraFront:2.0MP with indicator light, Rear: 5.0MP
Speaker 8Ω/0.8W waterproof BOX speaker*1
MicSensitivity:-42db, output impedance 2.2kΩ
Operation Systemwindows 10  S mode/ Pro 32bit /64bit
LCD panel
Panel size8", optional SLR Sunlight visible film
Resolution800*1280 IPS LCD
Aspect ratio16:10
Brightness (cd/m²)450 cd/m2
Touch panel
Touchscreen Type10points Capacitive, G+G
Surface Hardness7H
Interface
USB1*Micro usb3.0 (Host) for windows
Audio Output1*3.5mm
HDMI1*HDMI 1.4a Type C
TF Slot1*TF Slot, max 128G
SIM1*SIM
Power1*DC 5V 3A
Power Supply
Power AdaptorAC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
BatteryBuild in Lithium-ion polymer battery
Capacity: 3.7V/7500mAh
7hrs(default 50% volumn, default200 lumens brightnessplay 1080P HD video)
Operating Environment
IP gradeIP67 waterproof
Drop Height1.22cm  composite wood floors, in operation status
Operate Temperature-20 °C to 60 °C
Store Temperature-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing
Packing Details
Net weight649g
Gross weight1317g
Product Dimension220*143*16mm
Packing size357*186*60mm
Other
Warranty1 year warranty
CertificateCE, FCC, RoHS
Colorblack, silver
AccessoriesPower Adaptor, Micr USB cable
Module extension (Optional)
NFCNXP NFC 13.56MHz  support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm
Optional Accessories
AccessoriesHand-strap, Leather Cover, 5V3A Car Charge





None

None
Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
