Durability & Protection:
The all-metal enclosure with sealing provides maximum protection against physical damage, dust, and water ingress
Full waterproof rating means it can handle harsh environmental conditions
Sealed I/O connections prevent moisture and contaminants from entering through ports
Display Quality:
The 15.6" industrial LCD with 1000 nits brightness is specifically designed for outdoor use - standard indoor displays are typically 250-400 nits
Anti-glare coating reduces reflections for better visibility in bright conditions
Optical bonding eliminates air gaps between display layers, improving contrast and reducing reflections
Touch Functionality:
EETI's waterproof touch technology allows the screen to respond accurately even when wet, which is crucial for outdoor or industrial applications
Environmental Resilience:
Operating temperature range of -10°C to 70°C covers most industrial environments
Storage range of -30°C to 80°C ensures the device won't be damaged during transport or storage
Reliability:
High-performance mainboard designed for 24/7 continuous operation without degradation
Specification:
| Model:SL156W | |
| LCD panel | |
| Panel size | 15.6" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Surface treatment | Anti glare |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/65° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch optional) |
| Singal Ports | |

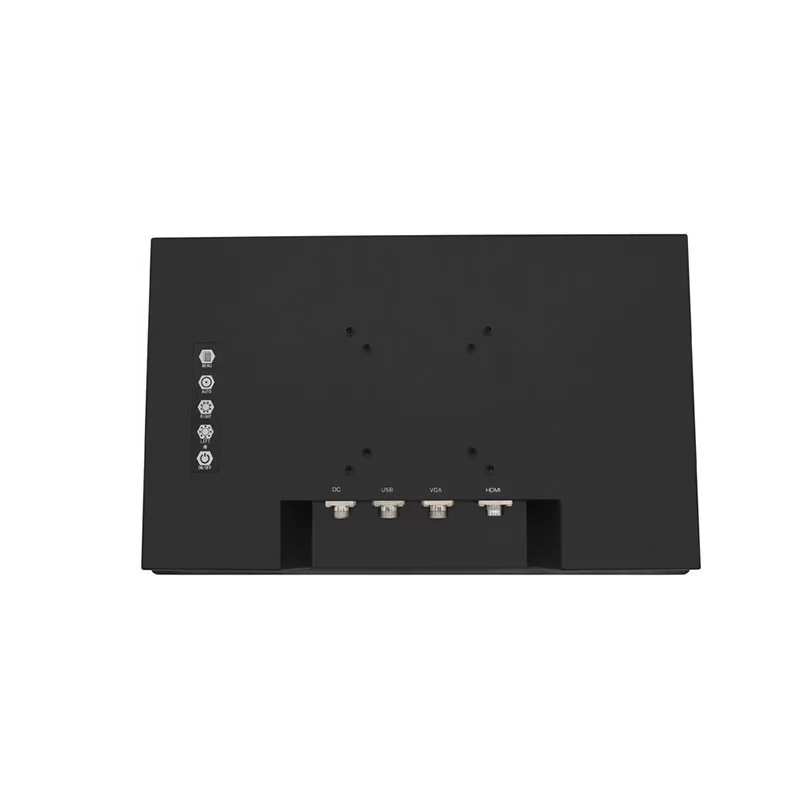

| VGA | 1xVGA |
| HDMI | 1xHDMI |
| DVI | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤30W |
| Enclosure | |
| Material | aluminium alloy front bezel + High strength cold rolled steel back case |
| Color | Black, white, Silver, color can be customized |
| VESA mounting | 75x75mm/100x100 mm |
| IP-grade | Full IP67 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 5 kg |
| Gross weight | 6 kg |

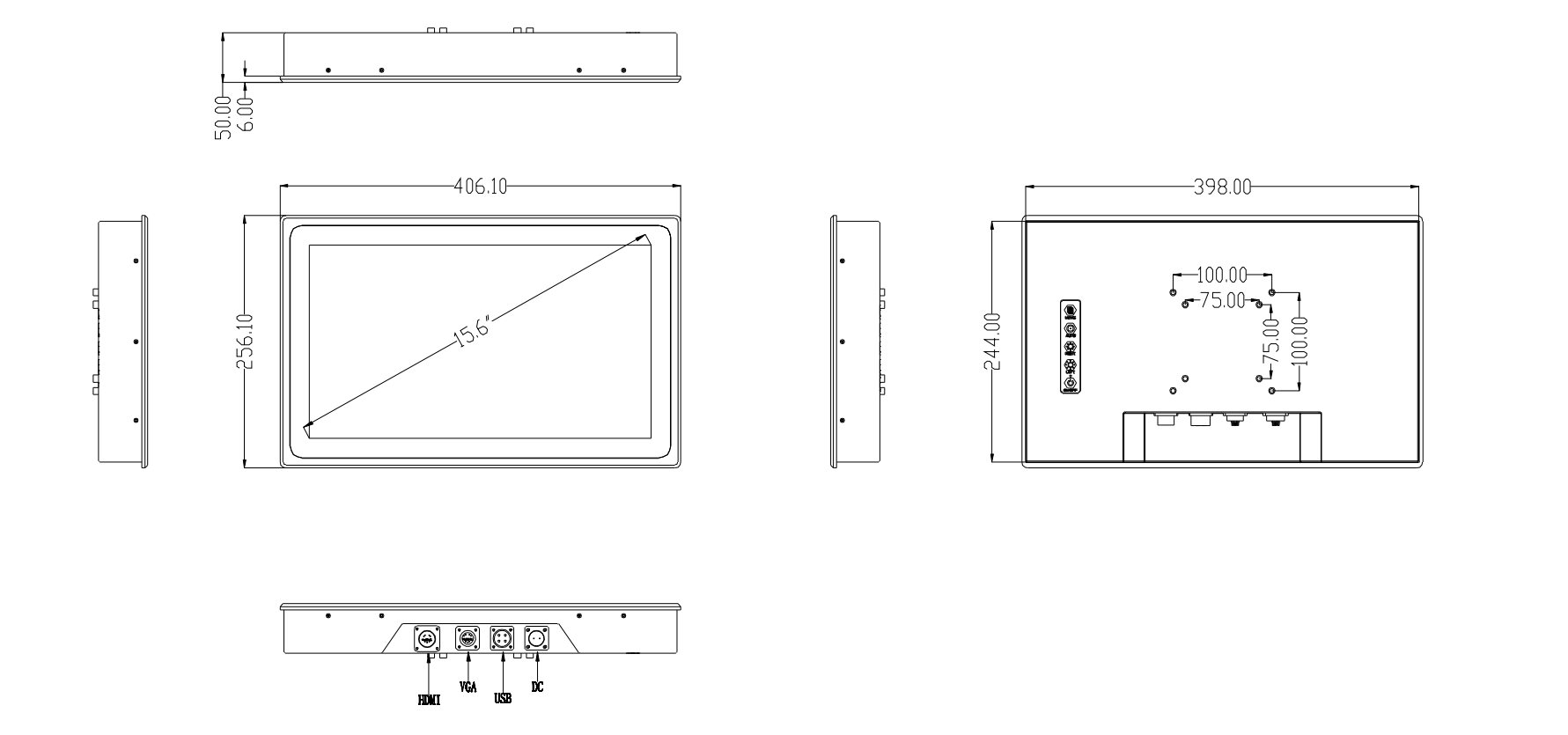

| Product Dimension | 40.61×25.61×5 cm |
| Packing size | 55x49x21 cm |
| Accessories | Power adapter, Waterproof Power cord, Waterproof VGA/HDMI/USB cable, Wall mount |
| Other | |
| Mounting (options) | 1) wall brackets for wall-mounting, VESA 100×100 mm |
| 2) stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
