Features

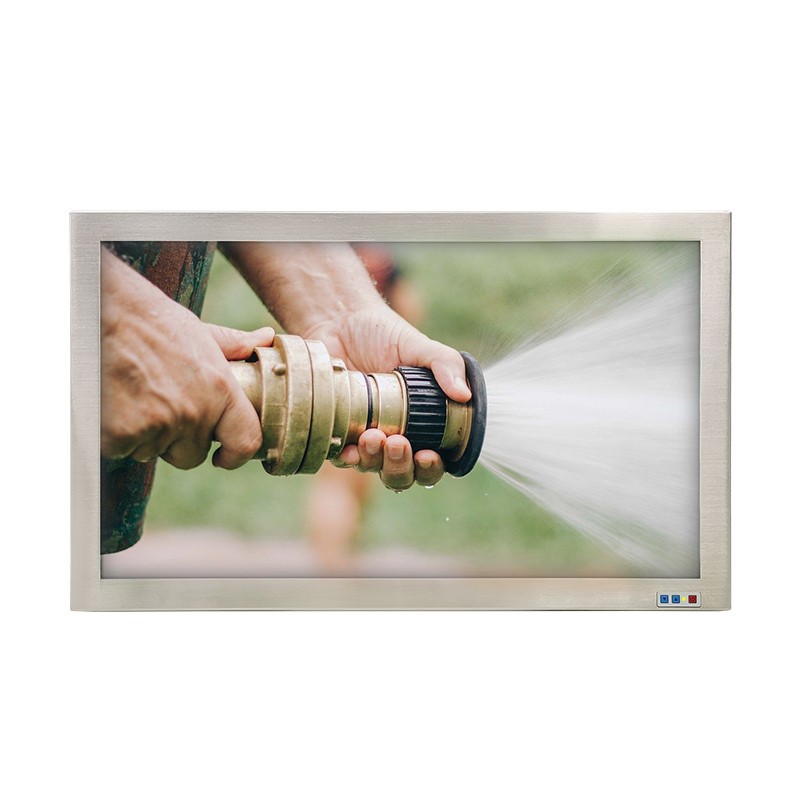

Full IP67 waterproof and dustproof
Industrial LCD panel, full view angle, 1500nits sunlight readable with automatic light sensing, UV-protection
10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness
Anti-glare surface treatment, Reduce ambient reflections
Optical bonding, Prevent condensation and fogging inside the screen and increase transmittance

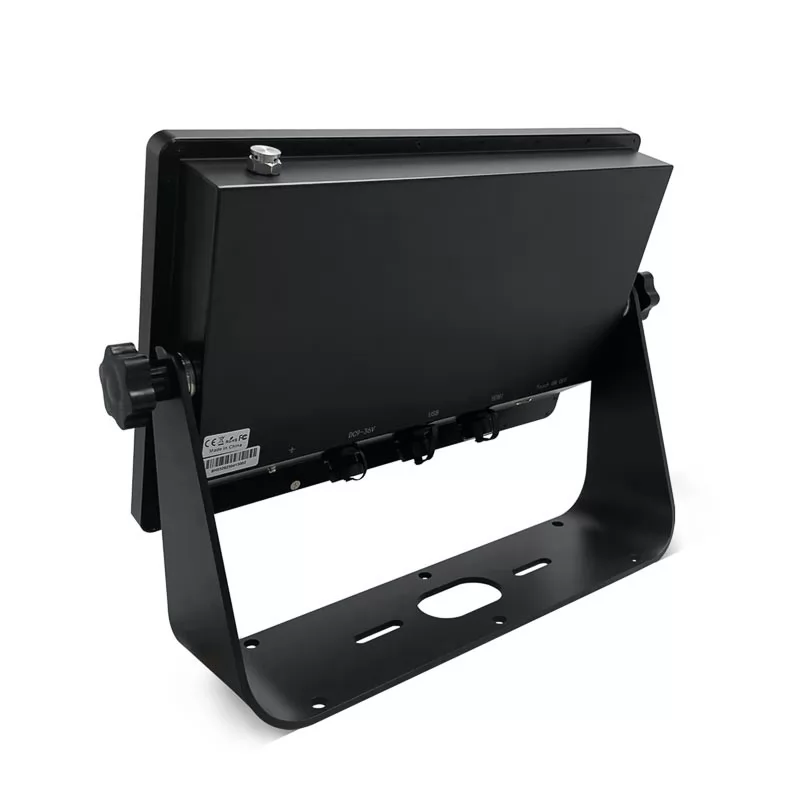

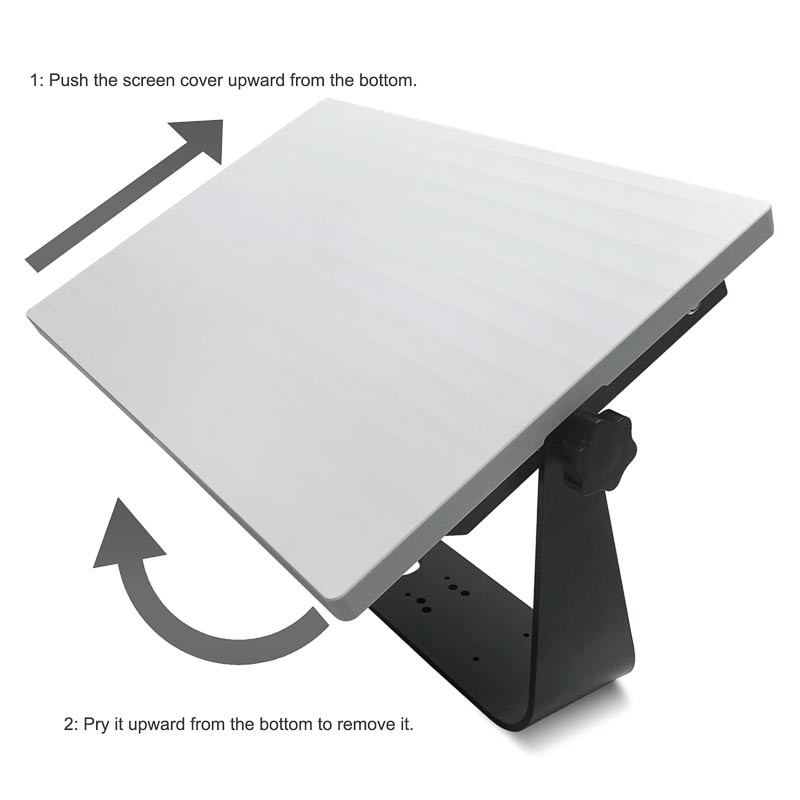

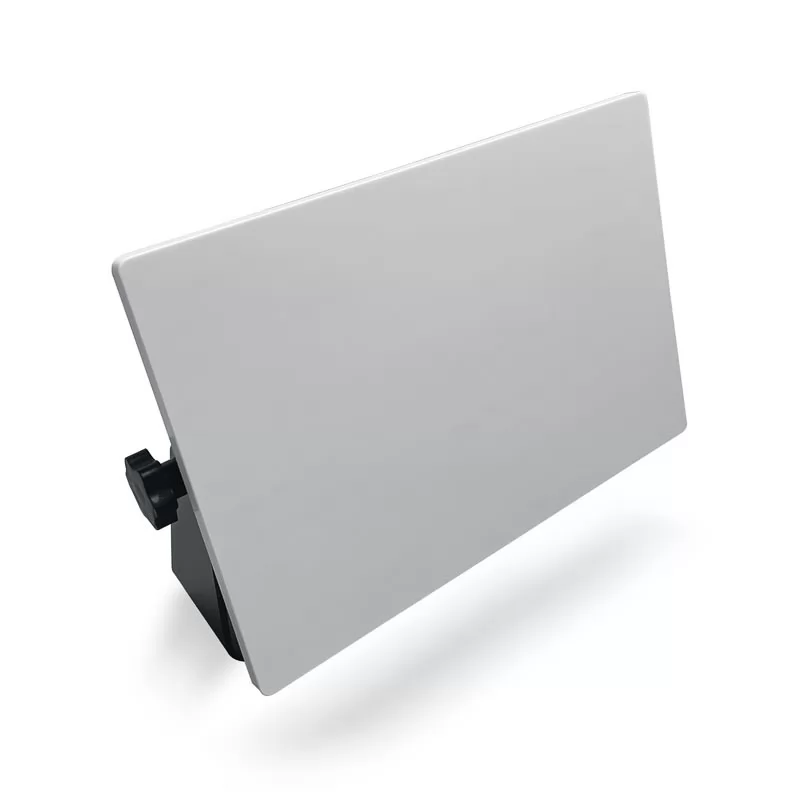

With stand and screen protector cover

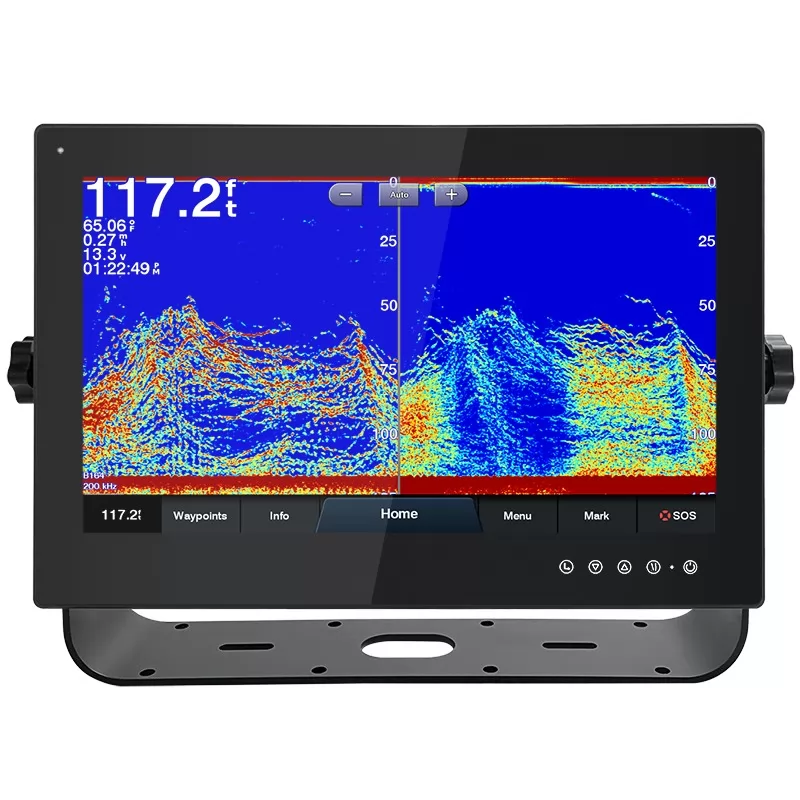

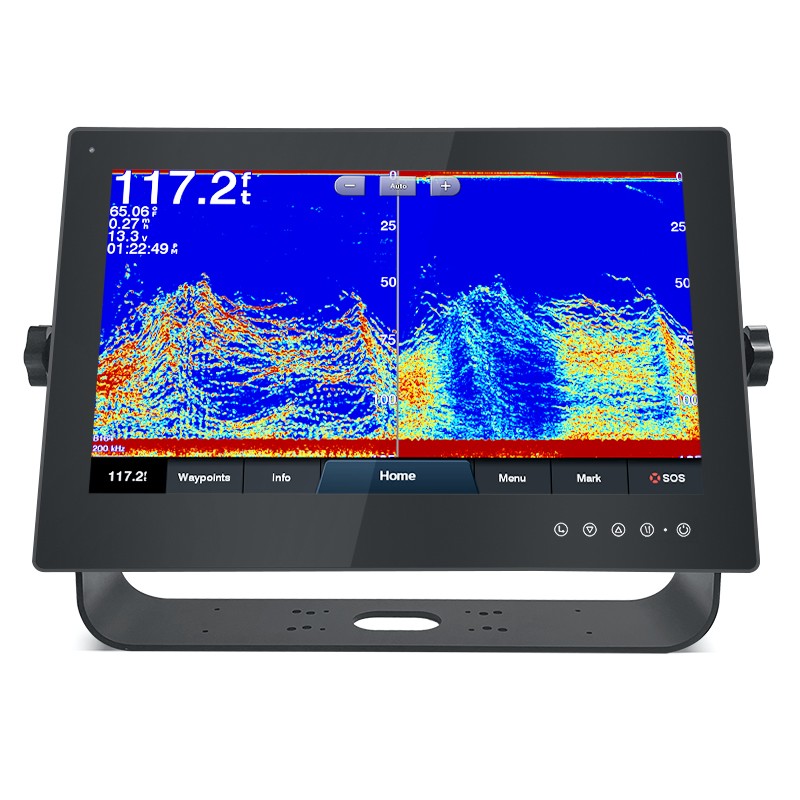

Waterproof interface compatible with Garmin MFD
Specification
| LCD panel | |
| Panel size | 18.5" |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16: 9 |
| Brightness (cd/m²) | 1500 cd/m² |
| Brightness control | Automatic light sensing, OSD, (Optional dimming knob) |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Support Color | 16.7M, 73% NTSC |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥ 85% |
| Touch controller IC | ILITEK2510 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical Bonding |

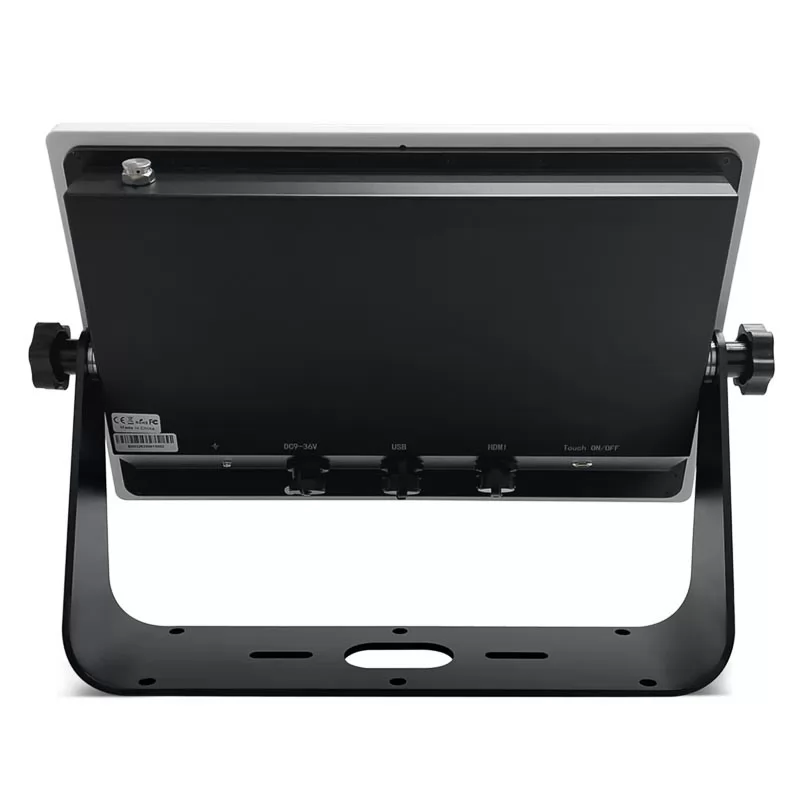

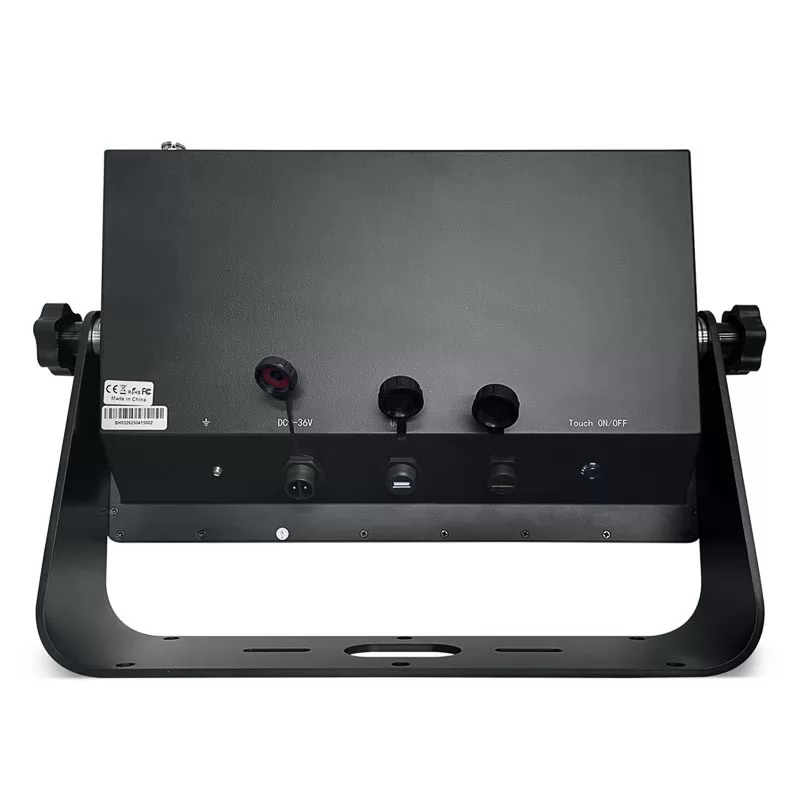

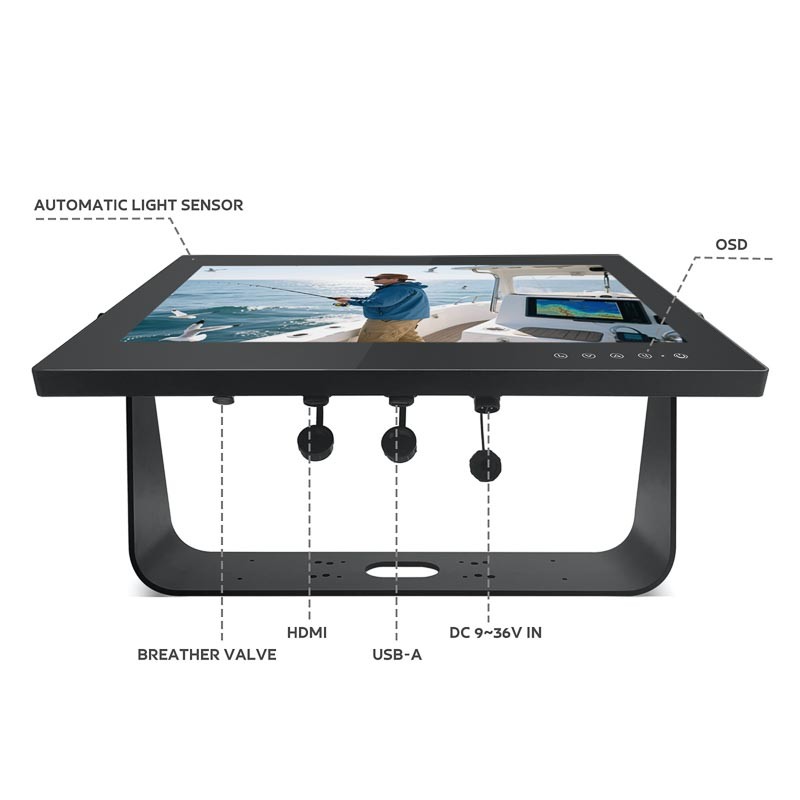

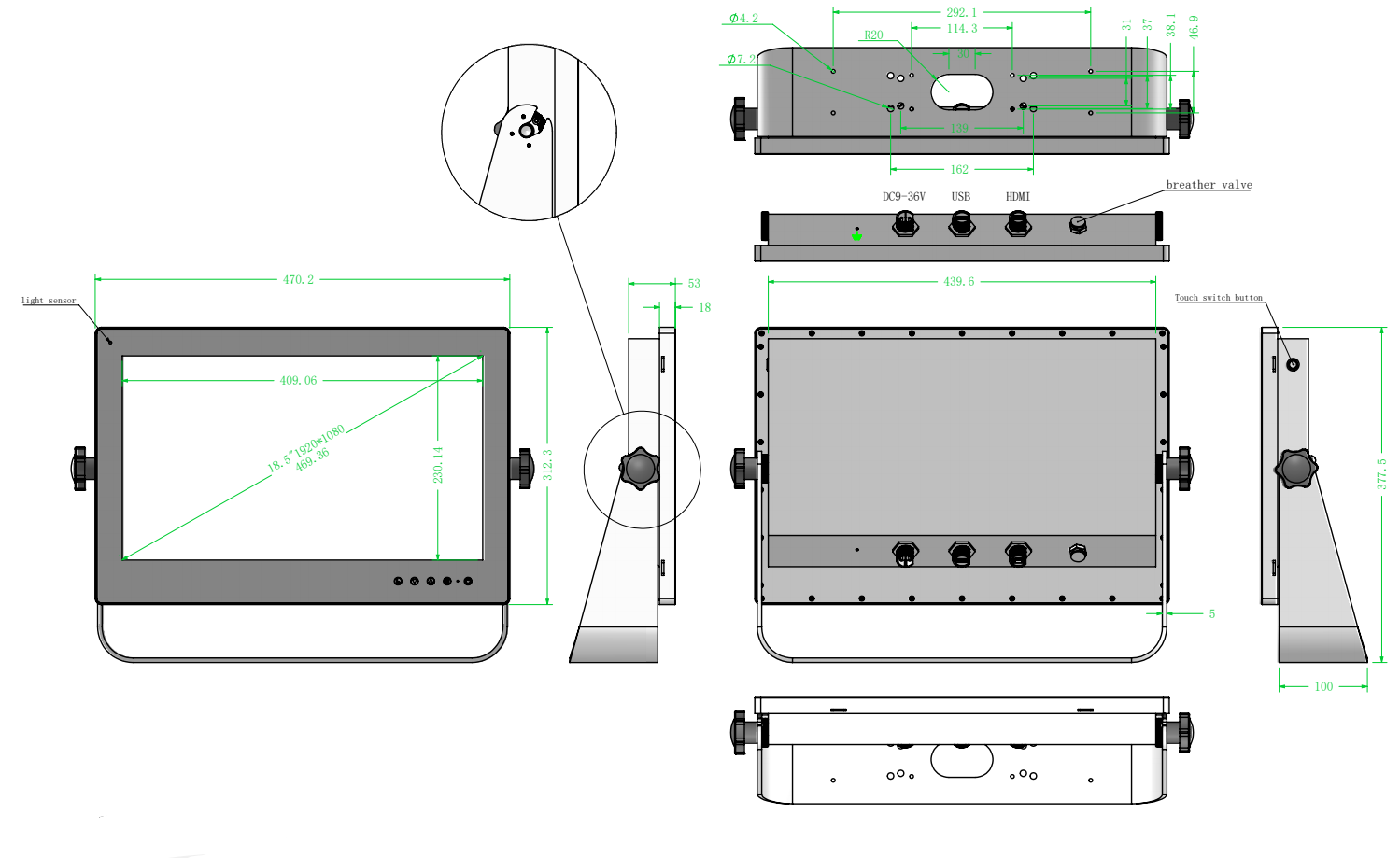

| External I/O Ports | |
| Video input | 1 x IP67 M20 HDMI |
| Touchscreen interface | 1 x IP67 M20 USB-A |
| Power connector | 1 x IP67 M20 DC 9-36V |

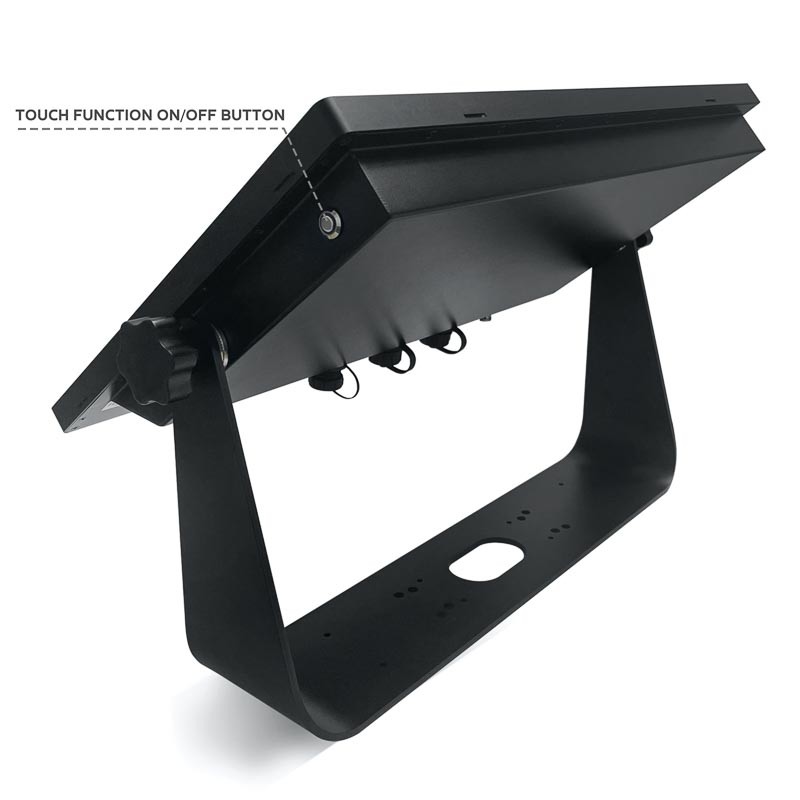

| Other | 1 x IP67 Breather valve, 1 x IP67 Touch ON/OFF Button, |
| 1 x GND Point | |
| Power Supply | |
| Working voltage | DC 9 ~ 36V |
| Power consumption | ≤ 45W |
| Power adapter | AC 100 ~ 240V input and DC 12V@5A, Max output 60W |
| OSD | |

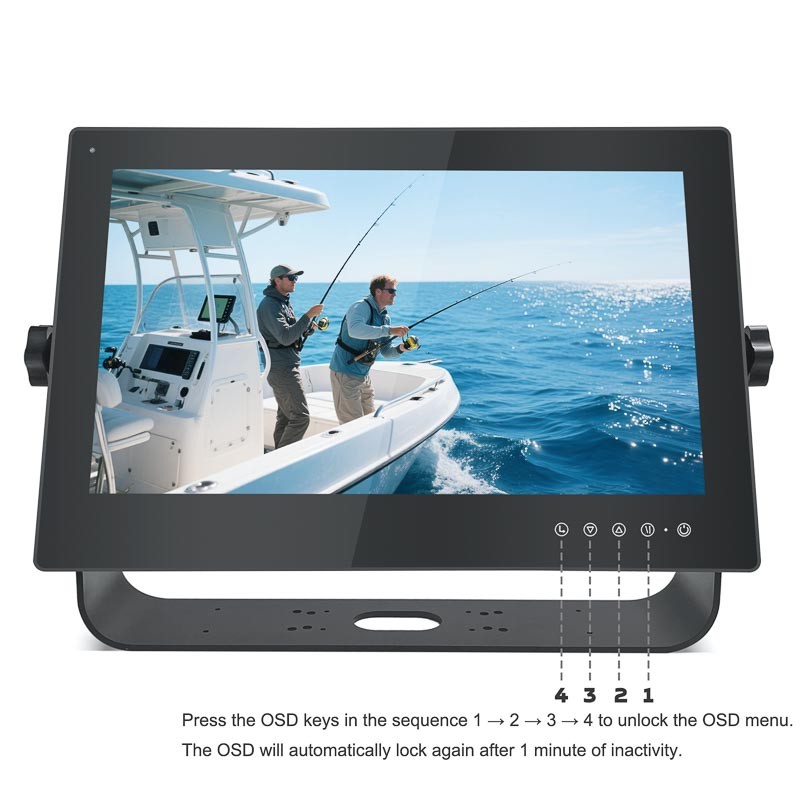

| Function Keys | 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, |
| OSD Language, Auto Adjust, Reset etc. | |
| Support languages | English, Français, Español, Português, Deutsch, Italiano,Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文，简体中文 |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, |
| UV-protection and Anti-discoloration treatment | |
| Rear housing: powder coated | |
| Color | Black |
| Mounting | Stand |
| IP rating | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C Storage: -30 °C ~ 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
| Accessories | 5M power supply, DC cable, 5M Waterproof Micro USB cable, 5M Water proof HDMI cabled |
