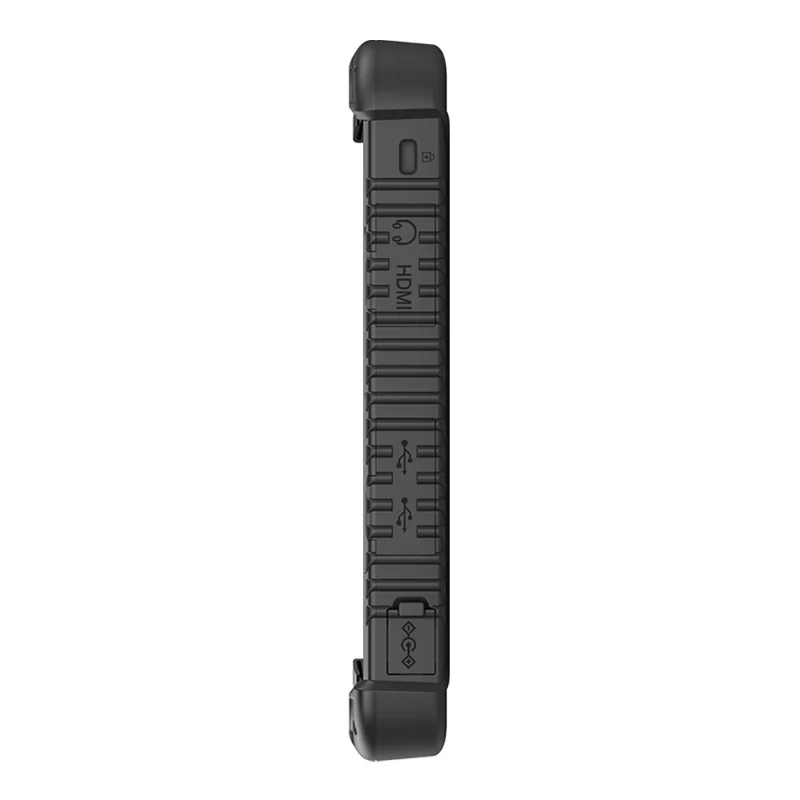

1200*1920 10.1 inch Rugged Tablet Windows

Quick Details:

CPUIntel Skylake M3-6Y30RAM4G
Hard Disk64GScreen10.1"
Brightness330nitsTouch TypeCapacitive
Battery3.7V/5000mAhIP GradeIP65


Feature

  1. Support Windows 10;

  2. Support  USB2.0 type A connector;

  3. Support Battery Single Charger Docking;

  4. Support GPS navigation;

  5. Support 1D/2D barcode scanner;

  6. Support Finger Identification;

  7. Rugged IP65 protection level;

  8. Support 5000mAh pluggable battery;

  9. Support UART port, RJ45 port and customized port;

  10. Support Wrist Strap and back jacket.


Specification

Model:R-I16BMK
PC
CPUIntel® Skylake M3-6Y30, 4M Cache, 2.20 GHz
Optional: kabylake Core™ m3-7Y30 /8200Y
GPUIntel® HD Graphics 515
RAM4GB, Optional: 8GB
SSD64GB, Optional: 128G
G_sensorGravity acceleration sensor
WIFIWIFI 802.11(a/b/g/n/ac)  dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v)
BluetoothBT4.2 (BLE) class 1, Transmission distance: 10m
3GOptional: FIBOCOM_H350 GSM/GPRS/EDGE Band(MHz):900/1800; WCDMA Band(MHz):900/2100, 1.Asia Pacific,Europe, 2.China Unicom 3G
4GEC25-EC
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
GPSCapture sensitivity: -160 dBm; Cool Start Time:<50second,Hot start time:<28seconds, frequency: 0.25 Hz ~10 MHz (configurable)
CameraFront:2.0MP with chargeing indicator light, Rear: 8.0MP USB Camera
Speaker 8Ω/0.8W waterproof BOX speaker*1
MicSensitivity:-42db, output impedance 2.2kΩ
Operation Systemwindows 10 Home/ Pro/ IOT 64bit
LCD panel
Panel size10.1", Optional SLR Sunlight visible film
Resolution1200×1920
Aspect ratio10:16
Brightness (cd/m²)330 cd/m2
Touch panel
Touchscreen Type10 points Capacitive, G+G
Surface Hardness7H
Interface
USB1*USB 3.0 ,1*Micro USB
Pogo Pin1*12pin  Pogo Pin
Audio Output1*3.5mm
HDMIHDMI 1.4a Type C*1
TF Slot1*TF Slot, max: 128G
SIM1*SIM
Power1*DC 12V 4A
DB9 PORT1*(RS232) TTL electrical level
RJ45 PORT1*(10/100 self-adaption)
Air outlet1*( build in small board for customer customized ), TLU1HPO2H0709J-50( tong mao Plug), LU1HR04H0709K(tong mao Plug)
OTG CableUSB OTG to MICRO USB cable length: 45mm
USB CableUSB to micro 5P L=1.2M  4core aluminum foil shield cable
Power Supply
Power AdaptorAC100V ~ 240V, 50Hz/60Hz, Output DC 12V/4A
BatteryLithium-ion polymer battery, pluggable, dimension: 121.8*92.3*9.5mm, Optional: 2pcs
Capacity: 7.4V/5000mAh
6hrs(default 50% volumn,default200nit,play 1080P HD video)
Operating Environment
IP gradeIP65 waterproof
Drop Height1.22cm  composite wood floors, in operation status
Operate Temperature-20 °C to 60 °C
Store Temperature-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing
Packing Details
Net weight1207g
Gross weight2365g
Product Dimension280*187*22mm
Packing size384*222*90mm
Other
Warranty1 year warranty
CertificateCE, FCC, RoHS
ColorBlack(Front and Rear Panel: Black, Decorate Board:Black)
Module extension (Optional)
One-dimension barcodeMOTO  SE655E100R  ,Support Buzzer, Optical Position: 5mil, Scan speed: 50/s, Symbol system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
Two-dimension barcode Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Optional Accessories
AccessoriesDocking Charger, Hand-strap, Vehicle Mount, Leather Cover, Back-strap, Shoulder-strap, Carry handle, 5V3A Car Charge, Removable Battery
