Thermal Scanner Face Recognition Temperature Measure System

Quick Details:

ProcessorHi 3516CV500Panel size7"
Detection Accuracy0.3°CStorage8G
Detection Distance30cm-100cmCameraSONY IMX327
Detection  Range35℃~41℃IP GradeIP65


Feature

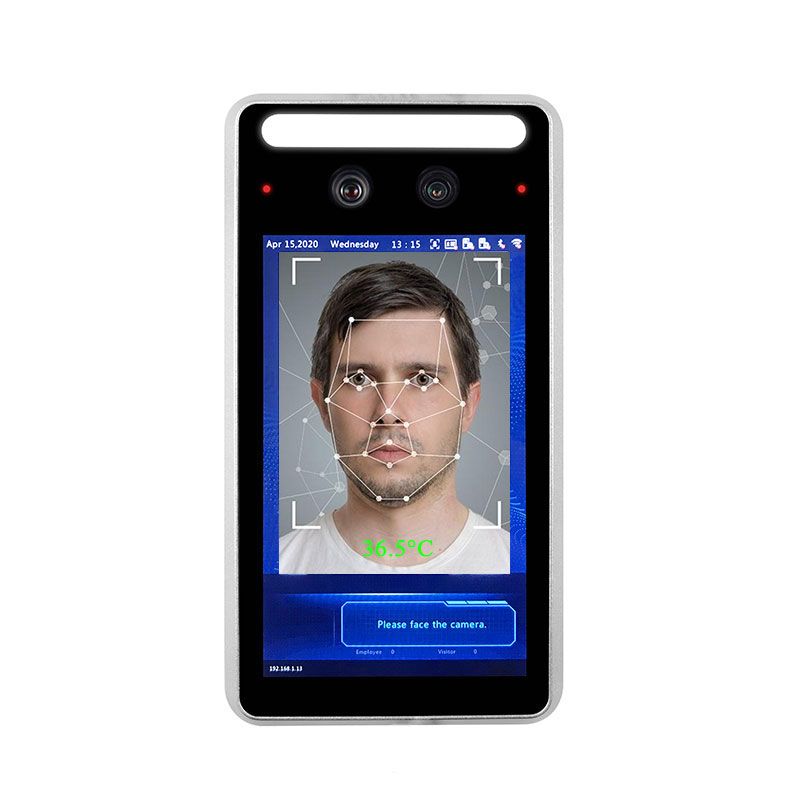

1. Hisilicon 3516CV500 series high-performance CPU and SONY HD IMX327/2MP image sensor 2. High precision infrared temperature collector, non - contact automatic temperature detection, accurate and efficient 3. Temperature measurement range:30-45(℃),Precision can reach ± 0.3℃ 4. Real-time output of authentication results and voice broadcast to give tips 5. Automatic identification of people not wearing masks and real-time warning 6. Automatically register, record information, avoid manual operation, improve efficiency and reduce missing information 7. Monocular liveness detection, face recognition distance of 0.3-1 meters, photos, video false-proof

8. Unique face recognition algorithm to accurately recognize faces, face recognition time is less than 500 ms,10000 faces compared database.


Specification

StorageRAM: 2Gb,  Flash:8G ,  TF card 128G
Display7inch LCD
Thermal imaging parameterssensorThermal image infrared temperature sensor
Detection Range30 ~ 45 ℃,
Detection Accuracy± 0.3 ℃
Detection Distance0.5m~1m
Visible Light ParametersImage SensorSony COMS 1 / 2.8 IMX327
LensFocal length 1.8mm, angle of view: 118 °
Minimum illumination[email protected] color mode
Dynamic Range≥120dB
Signal to noise ratio≥46dB(AGC OFF)
Exposure modeProgram mode (shutter interval can be customized), shutter mode (1/5-1 / 20,000s), support slow shutter
White balanceAutomatic, indoor, outdoor, sodium lamp mode, manual
Digital noise reductionSupport DNR, 3DNR
Day and night modeFixed color
Image and CompressionVideo compressionH.265 Main Profile / H.264 High profile / M-JPEG
Maximum resolution1920x1080@30fps
ResolutionMain stream1920x1080、1280x960、1280x720、720x576
Secondary stream640x480、352x288、320x240、176x144
MJPEG1920x1080、1280x720、Close
Output code rateFixed bit stream (CBR) or variable bit rate (VBR), the bit stream can be set range: 32Kbps ~ 10Mbps
Audio compressionG711, PCM
Character overlaySupport channel name, date and time superposition, the superposition position can be adjusted;
AI AlgorithmNumber of face librariesMaximum 10,000 sheets
Recognition speed≤300ms
BiopsySupport
Mask detectionSupport
Abnormal body temperature alarmSupport (voice broadcast)
Hardware InterfacePower interfaceDC12V
Network Interface1 channel 10 / 100BaseT Ethernet RJ45 interface
Wiegand Interface1 Wiegand interface output
Switch Interface1 relay output
MICBuilt-in
Audio portBuilt-in 2 audio output
USB Interface
General SpecificationsOperating temperature5°C ~50°C
Working humidity0%-90% RH (No condensation)
Power consumption5W
Size--


None

None
Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
