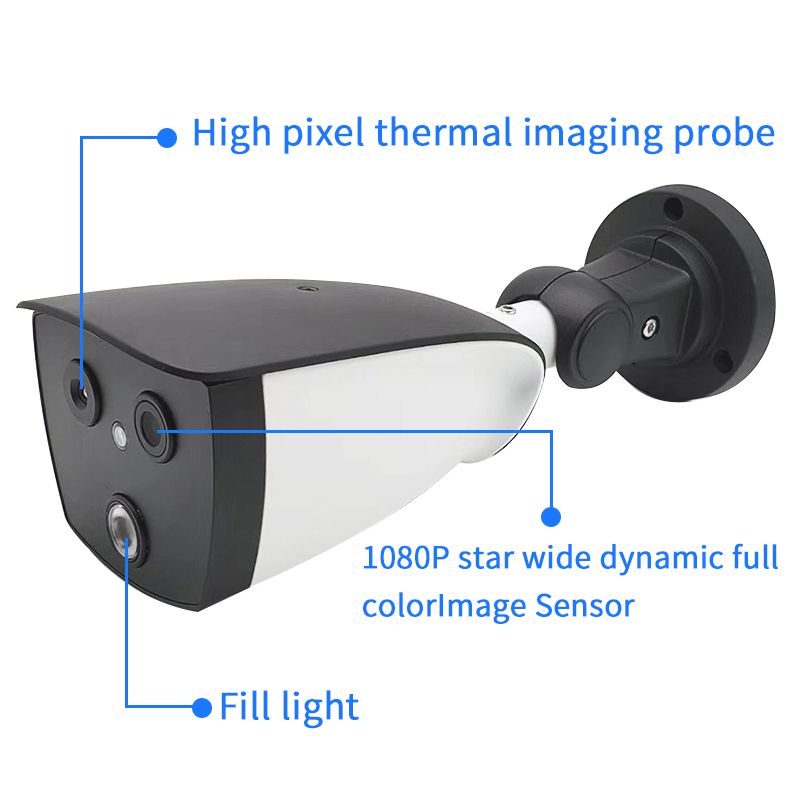

infrared thermal imaging camera

Quick Details:

Resolution256x192Pixel size12μm
Accuracy± 0.3 ℃NETD≤60mk
Imaging Sensor1/2.8" CMOSFocal length4mm
Wide Dynamic≥80dBIP GradeIP67


Features

1. Multiple target tracking (Be able to check 20 perspm together)

2. Fast readings (suitable for lot of people walking through)

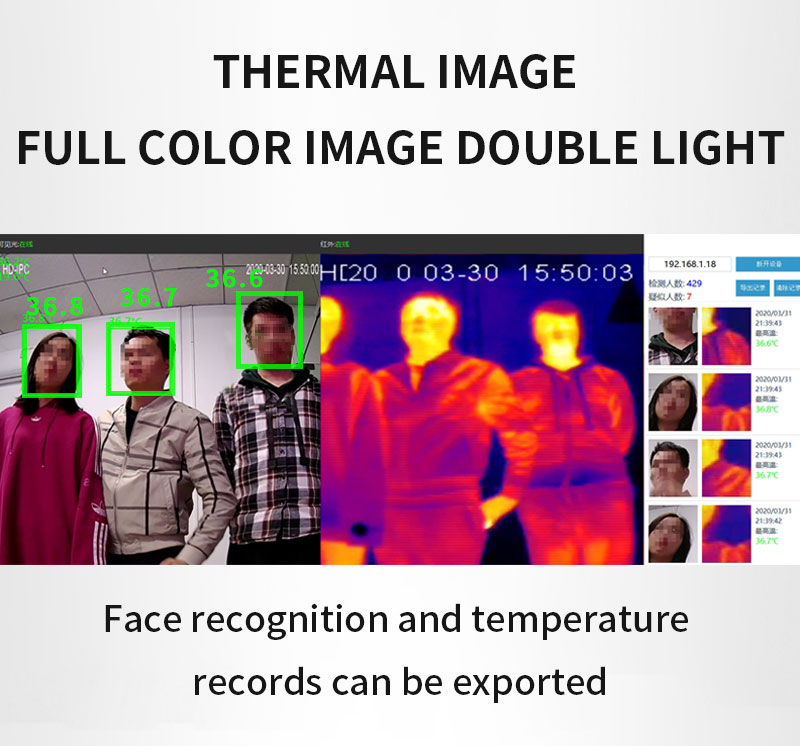

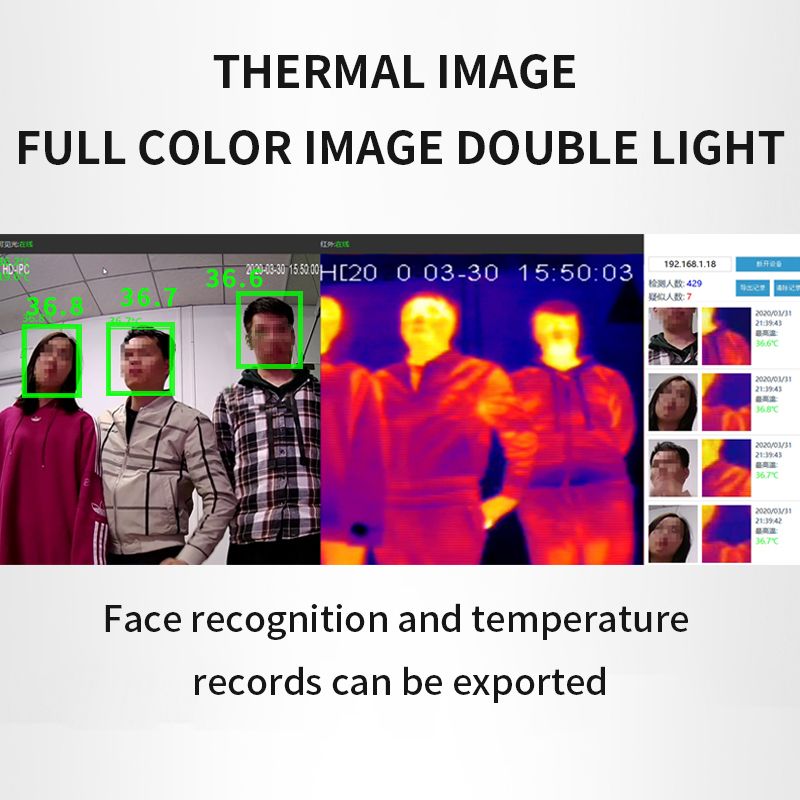

3. Support both thermal image and normal image of the person on the same screen

4. Temperature measure range from -15℃ ~ 150℃

5. Temperature readings is easy to cross check with standard Excel temperature plate

6. Reliable temperature-anomaly color

7. NETD is less than 60 mk (@25℃,F#=1.0)

8. Support contrast adjustment

Specification


Model: SH-C100T
Thermal imaging module
Sensor typeSilicon oxide uncooled infrared focal plane detector
Resolution256x192
Pixel size12μm
NETD≤60mk @25℃,F#=1.0
Temperature measurement accuracyObject temperature35℃~38℃: accuracy ± 0.3 ℃
Object temperature 20℃~33℃ or 38℃~50℃:accuracy ± 0.6 ℃
Other temperature range: ± 2 ℃
Field angleHorizontal:35°   vertical: 27°
Image modelBlack hot/White hot/iron red/iridescence etc.
Visible light module
Imaging sensor1/2.8”2.0M Pixel CMOS
Minimum illumination0.005Lux@F1.2(Color mode), 0.001Lux@F1.2(Black/white mode)
Wide dynamic range≥80dB
Signal to Noise Ratio≥46dB (AGC OFF)
Focal length4mm
Field angleHorizontal:84°   vertical: 45°
AI  Function
Automatic face captureBuilt-in deep learning AI algorithm, support simultaneous detection of 20-30 faces, face detection, exposure, scoring, screening, snapshot upload, support FTP, HTTP and other methods to upload faces, head and shoulders, upper body, full body, original image, etc.
Temperature measurementSupport whole and part temperature measurement
Abnormal temperature alarmHigh temperature limit, Low temperature limit ,Zone temperature difference alarm
 Functions
Network protocolSupport RTSP, RTP, TCP, UDP, UPNP, DHCP, PPPoE, ONVIF, GB / T 28181 protocol, etc.
Network port1 channel 10 / 100BaseT Ethernet, RJ45 interface
Alarm interfaceReserved
Audio portReserved
General specifications
Operating temperature-20℃~55℃
Working humidity0% -90% RH (no condensation)
IP gradeIP67
Power supply12V DC
Power consumption≤5W (without heating)
Product dimension246mm * 101mm * 81mm (with bracket)
Weight<1kg
Other

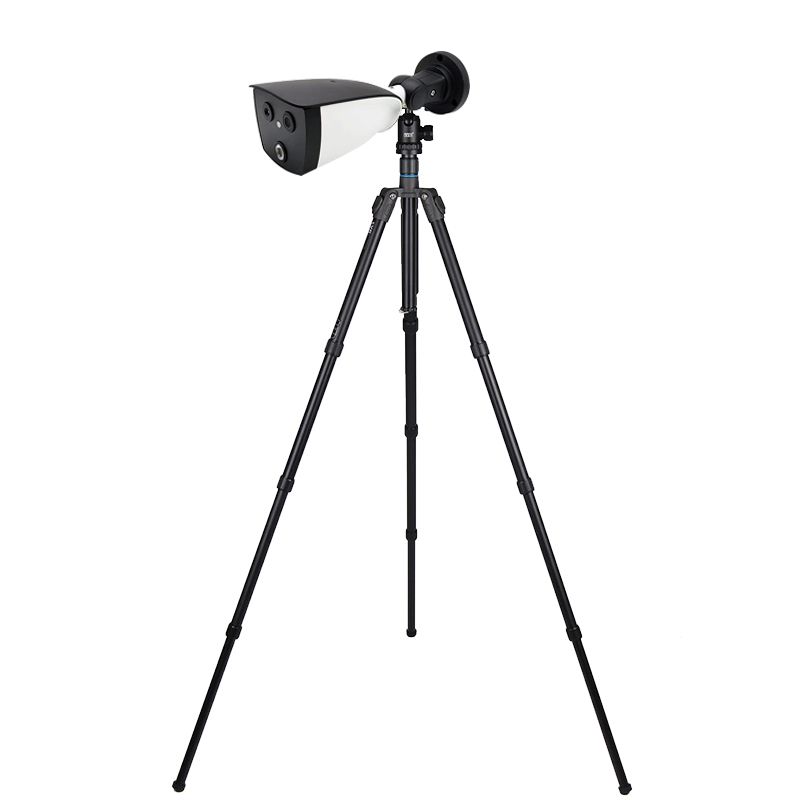

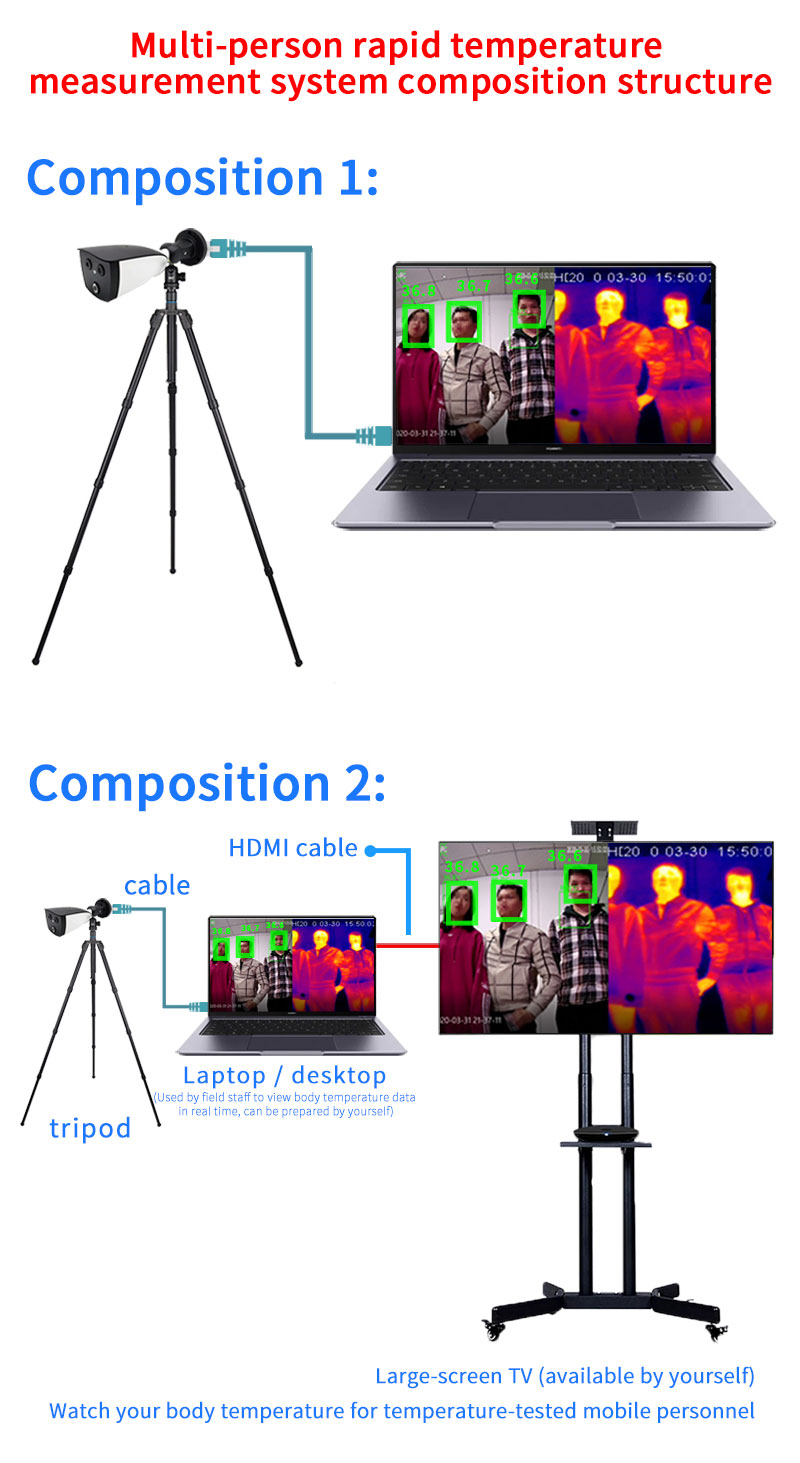

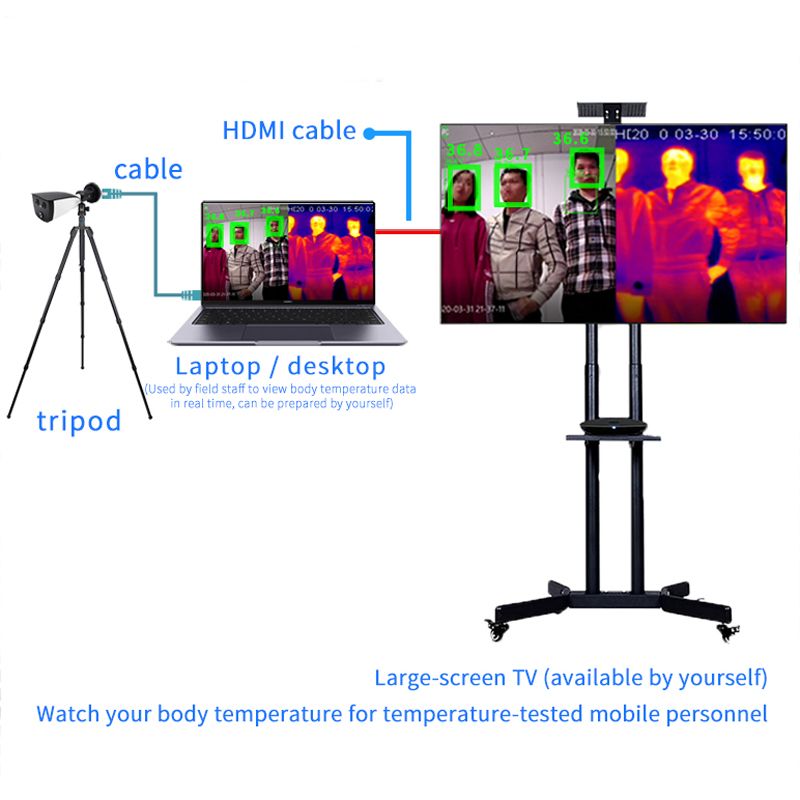

AccessoriesTripod  (free of cost)
LCD display (self-provided )
Warranty1 year warranty
