Face recognition tablet with infrared thermometer

Quick Details:

CPUHi3516D V300Panel size8"
Face Database≤50000RAM8G
Recognition distance≤ 50 cmEMMC16G
Thermometry  Range-10~150℃IP GradeFull IP66


Face Recognition Infrared Thermometer Features

1. Built in high-precision thermal infrared module, temperature detection range - 10 ℃ ~ 150 ℃, accuracy ± 0.3 ℃

2. Support OSD real-time display and superposition of human body temperature

3. It supports low temperature alarm, high temperature alarm, regional temperature difference alarm and other alarm modes

4. Binocular face recognition, supporting infrared live detection, large face database, which can support up to 50000

5. IP66 waterproof and dust proof

6. Equipped with 8-inch Ultra HD display

7. Good environmental adaptability, adapt to low light and strong backlight, and support automatic face exposure

8. It supports Wigan protocol, can directly drive access control, and control various gates, etc

9. 1 / 2.8 "2 million pixel progressive scanning image sensor, excellent low illumination

10. The maximum output resolution is 1920 × 1080 @ 30fps, and the image quality is clear and smooth

11.Super fast recognition speed, complete recognition within 300 milliseconds


We began as most companies do, with an idea. Since the mid 90s of last century, chinese industry has been growing rapidly, there is a great demand for industrial computer for factory automation . Different with personal computer, the requirements of industrial computer is diversified and each requirement doesn’t demand a big quantity. Industrial computer producers don’t like this, they like mass production and sell their standard models. The founders of Shinho want to create a special factory , which is flexible, efficient, tailored, to produce customized products to meet customers’ diversified requirements,our certificates.

Face Recognition Infrared Thermometer Introduction:

Face recognition system is built on face recognition algorithm and infrared temperature measurement algorithm. Its functions include living face recognition function, temperature display function, ultrasonic  dynamic distance measurement function, and fever temperature alarm function. Forming a new "face comparison + temperature detection" biometric testing solution, which meets a variety of application scenarios. The device opens the interface to the customer for secondary development, which helps to meet different needs and to fight for the Corona-Virus and various fever and disease!

Face Recognition Infrared Thermometer Specification

Model: SC08YF
PC
CPUHiSilicon Hi3516D V300 dual core, Cortex-A7, 1.0 TOPS
Memory8GB
Storage16GB
GraphicsSupport 1920*[email protected]
Operation SystemLinux
Network Support One 10/100 Base TE thernet RJ45 interface
Image FormatJPG/BMP/GIF/TIFF/PNG
Video FormatRMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc.
Audio FormatMP3, WMA, AAC, etc.
Sensors
Far infrared temperature sensor
Spectral range:  8~14um
Resolvingpower: 80*60
Thermometry  Range:-10~150℃, Accuracy:±0.3℃
Support global temperature measurement and regional temperature measurement
High temperature limit low temperature limit alarm, temperature difference alarm
Support OSD real-time display and superposition of human body temperature
Recognition distance: ≤ 50 cm
Field angle:  33°
CameraPixel: 1/2.8" 2 million pixel progressive scanning image sensor
Focal length: 3.6mm,Field angle: 118°
Minimum illumination: [email protected](Colormode); [email protected](Blackandwhitemode)
Dynamic range:  ≥120dB
Signal-to-noise ratio: ≥46dB(AGCOFF)
Large face database, which can support up to 50000
Recognition distance: 10cm~ 120cm
Exposure mode: Programmode(cancustomize the shutter interval),shutter mode(1/5-1/20000s),support slow
Super fast recognition speed, complete recognition within 300 ms
Face verification accuracy: 99%
Single face storage capacity: Not more than 180KB
Good environmental adaptability, adapt to lowl ight and strong backlight, and support automatic face exposure
LCD panel
Panel size8"
Resolution800*1280
Aspect ratio10:16
Support Color16.7M colors
Brightness 500 cd/m²
Response time25ms
Contrast ratio800:1
View angle85°/85°/85°/85° (R/L/U/D)
Interfaces
NetworkOne 10/100 Base TE thernet RJ45 interface *1, support display output to PC
Power12V DC input *1
Wigonchannel Wigan interface output *1
Switch value interfacerelay output *1
HDMIoptinal for bulk order
USBoptinal for bulk order
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V 4A
Power consumption≤15W
Enclosure
AppearanceFlat panel
MaterialAluminum alloy
ColorBlack, Silver
VESA mounting75x75mm
IP gradeFull IP66 waterproof
Operating Environment
Working temperature-20°C to 60°C
Storage temperature-30°C to 70°C
Relative humidity20%-95% (non-condensing)
Vibration resistance5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration
Impact resistance10g acceleration, 11ms period
Anti-interferenceEMI/EMC
Packing Details
Net weight0.8kg
Gross weight1.2kg
Product dimension215x125x25mm
Packing size10 units in 1 carton, carton size: 59*42*31cm
AccessoriesPower adapter, warranty card, user manual
Other
Mounting wayDesk stand holder
Wall mounting brackets (Optional)
Embedded mounting(Optional)
Customization (optional)3G, 4G, RFID reader etc. optional
Warranty1 year warranty


Face Recognition Infrared Thermometer

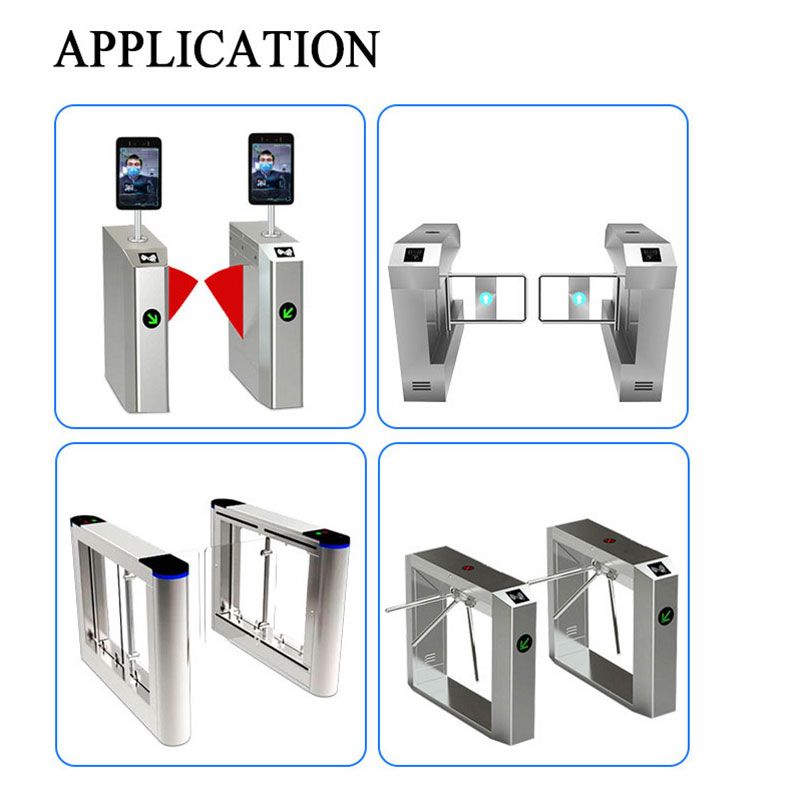

Face Recognition Infrared Thermometer Application:

It is suitable for customs, government, airports, railway stations,

enterprises, communities, schools, buses, and other crowded public places.

This thermal screening solution can be widely used in all sectors like hotels, school, commercial buildings, factories, MRT stations, supermarkets, medical centre and retail stores that usually has high amount of traffic.
