Features
Fully enclosed design, the whole tablet PC is dustproof.
Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, crrosion resistance, excellent performance of heat dissipation.
Industrial LCD panel, full viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
High performance motherboard, 7x24 continuous operation.

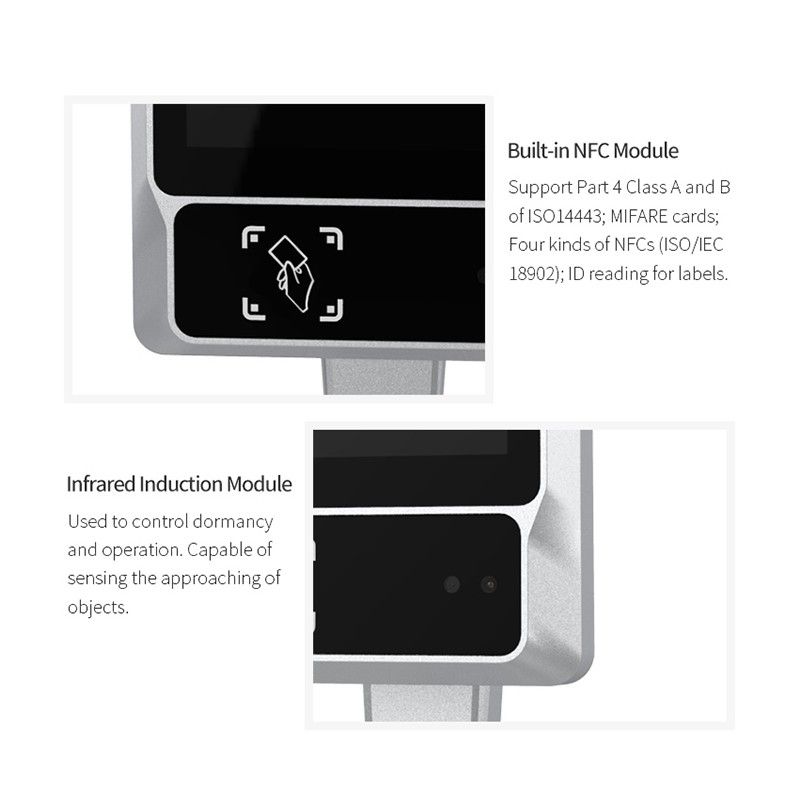

Built-in 13.56MHz, IC Card reader(ISO14443-A, ISO14443-B).
Support WIFI(2.4G) and Bluetooth(BT4.1).
Specification
| Model: SC08AF | |
| PC | |
| CPU | RK3288 Cortex-A17, Quad core, 32bit, 1.8GHz |
| Memory | 2GB DDR3 (4G Optional) |
| Storage | 16GB EMMC (8G/32G/64G Optional) |
| Graphics | ARM Mali-T764 GPU |
| Operation System | Android 7.1(Can upgrade via USB) |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | 3G, 4G, TD-LTE (optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc. |
| Audio Format | MP3, WMA, AAC, etc. |
| RTC Real Time Clock | YES |
| Timing switch | YES |
| Speaker | Twin channel 8Ω/2W |
| LED Light | White light, RGB camera supplementary light source, SDK with control interface |

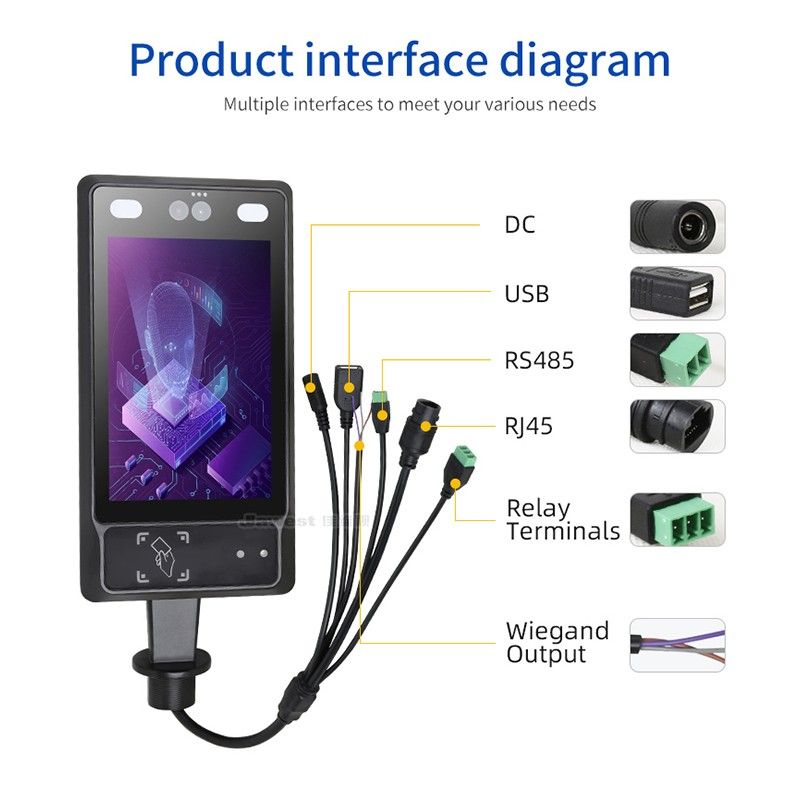

| I/O Interfaces | |
| USB | 1xUSB |
| COM | 1xRS485(half-duplex operation, transfer distance above 100m) |
| LAN | 1xRJ45, 10M/100M adaptive ethernet |
| Wiggins output | 1xWiegand output(support 32 bit or 64 bit) |
| Relay terminal | 1xRelay terminal |
| Proximity detector | 1xProximity detector(straight line 1M, auto sleep) |
| MIC | 1xMIC |
| DC | 1xDC |
| LCD panel | |
| Panel size | 8" |
| Resolution | 800*1280 |
| Aspect ratio | 10:16 |
| Support Color | 16.7M colors |
| Brightness | 500 cd/m² |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| Display area | 107.64×172.22 mm |
| Pixel pitch(mm) | 0.0448(H) X 0.1345(V) |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 points capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 6H |
| Working Life | >50 million times |

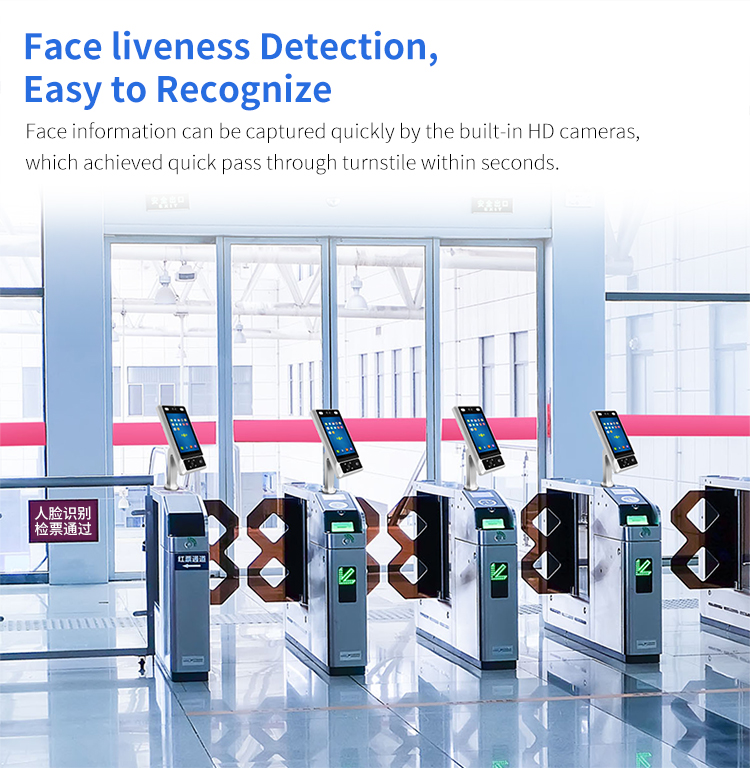

| Face recognition parameters | |

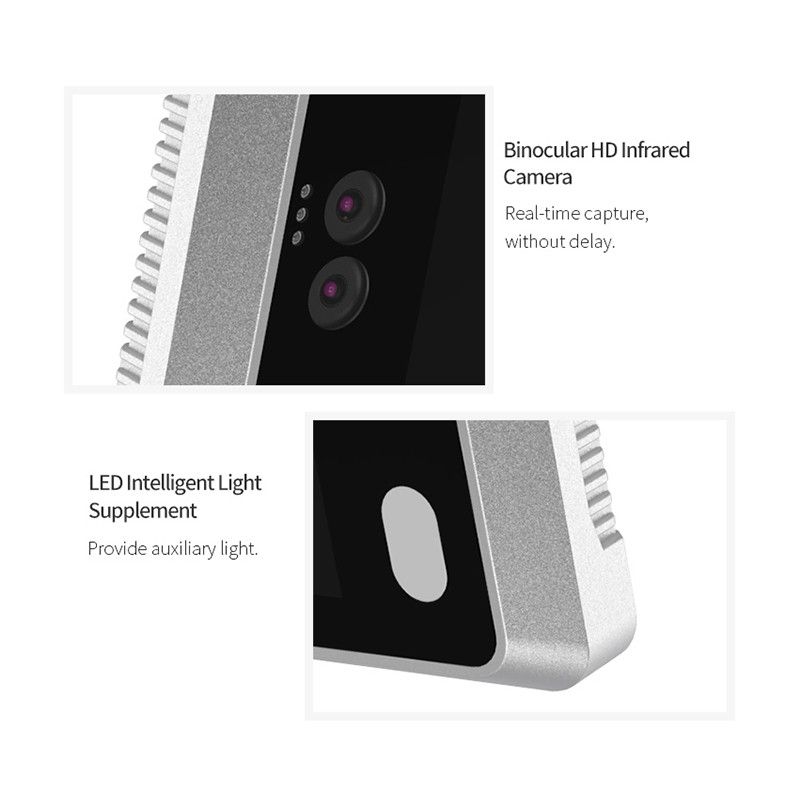

| Camera | 200W pixel wide dynamic binocular camera |
| Identify distance | 0.3m-1m |
| Identify time | Less than 1s |
| Bio-assay | YES |
| Single face storage capacity | Not more than 180KB |
| Face verification accuracy | 99% |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V 4A |
| Power consumption | ≤15W |

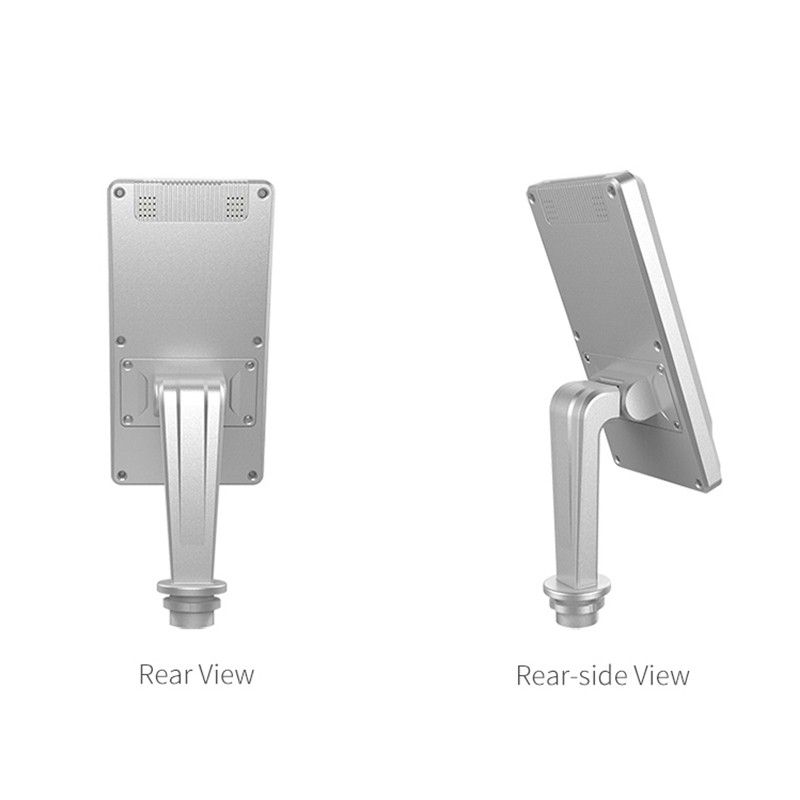

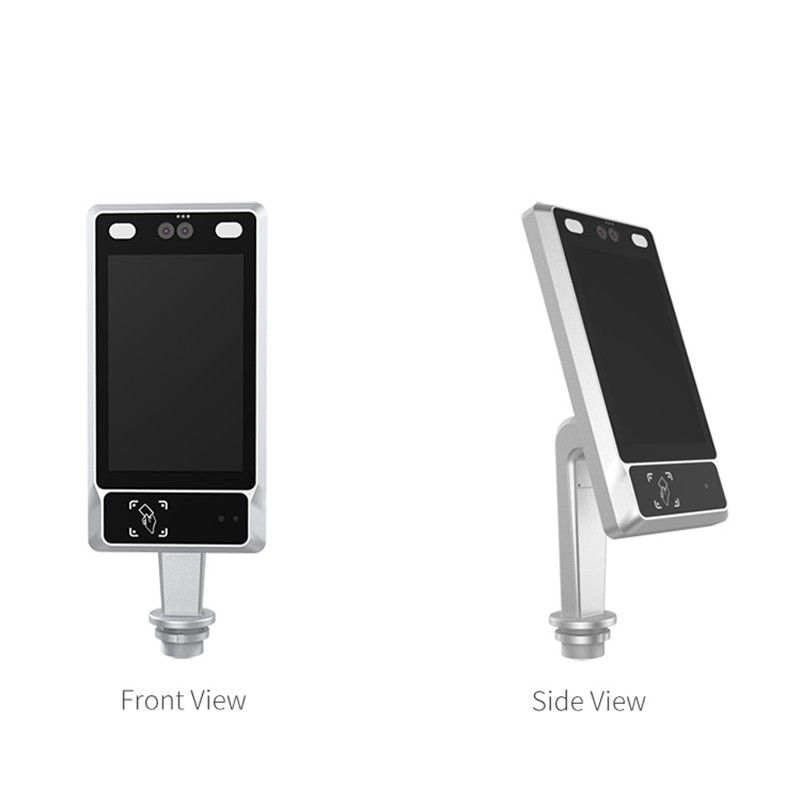

| Enclosure | |
| Appearance | Flat panel |
| Material | Aluminum alloy |
| Color | Black, Silver |
| VESA mounting | 75x75mm |
| IP grade | Front IP65 waterproof |
| Operating Environment | |
| Working temperature | -10°C to 60°C |
| Storage temperature | -20°C to 70°C |
| Relative humidity | 20%-95% (non-condensing) |
| Vibration resistance | 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration, 11ms period |
| Anti-interference | EMI/EMC |
| Packing Details | |
| Net weight | TBD |
| Gross weight | TBD |
| Product dimension | TBD |
| Packing size | TBD |
| Accessories | Power adapter, warranty card, user manual |
| Other | |
| Mounting way | Desk stand holder |
| Wall mounting brackets (Optional) | |
| Embedded mounting(Optional) | |
| Customization (optional) | 3G, 4G, RFID reader etc. optional |
| Warranty | 1 year warranty |
