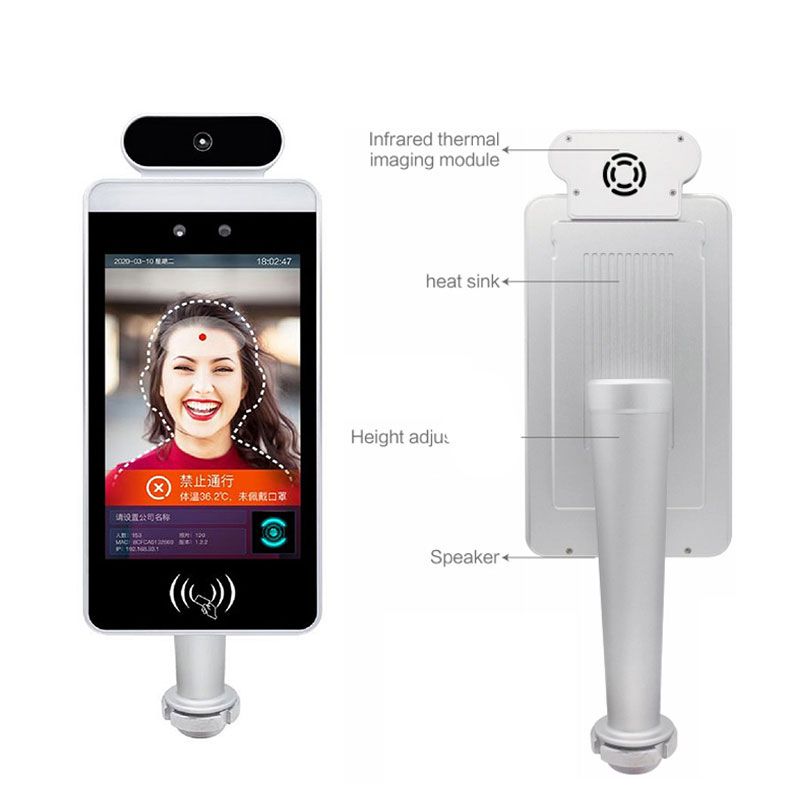

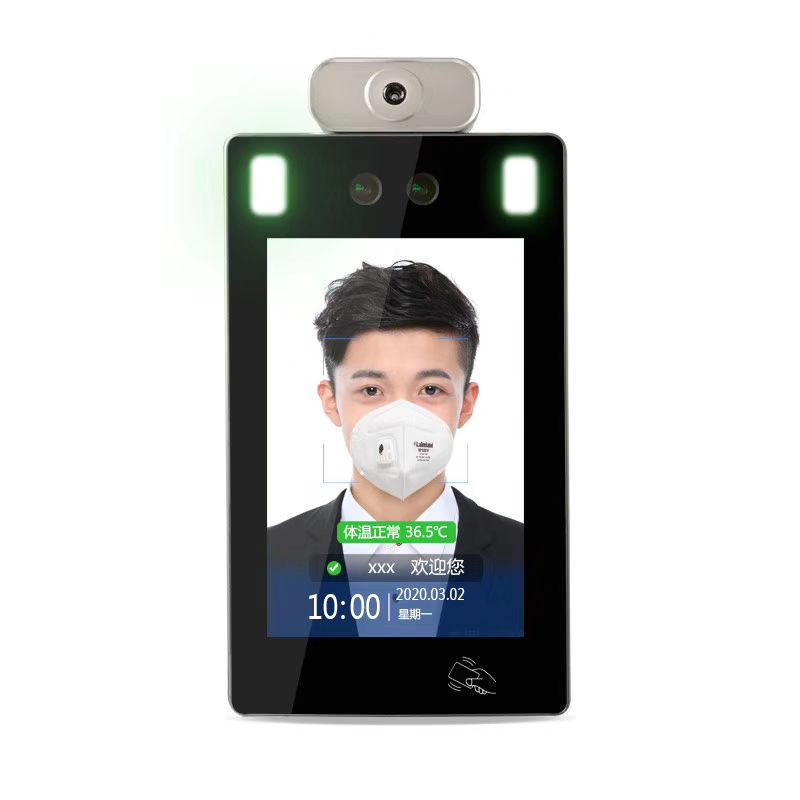

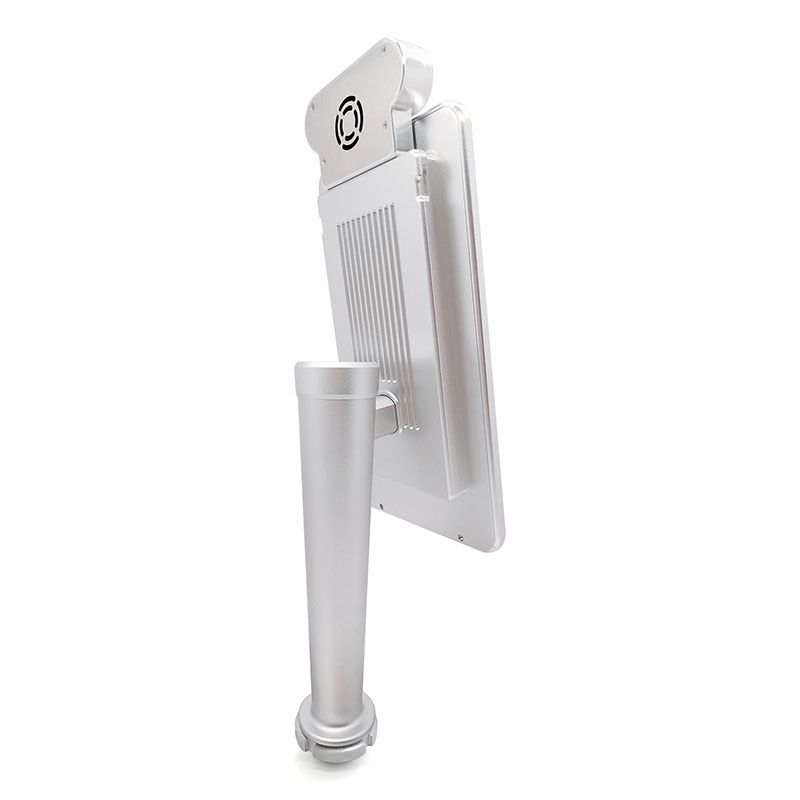

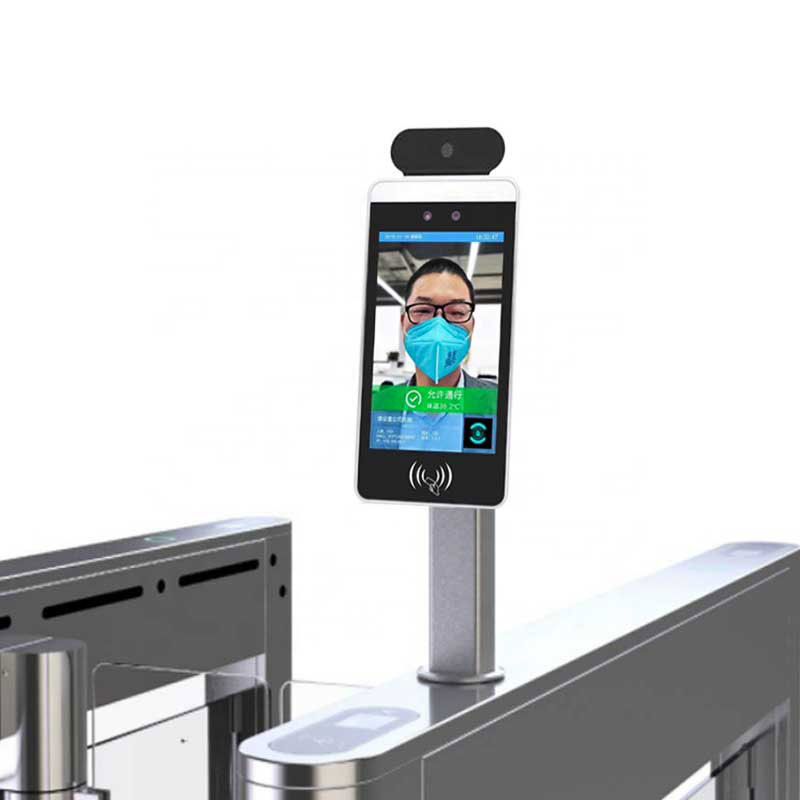

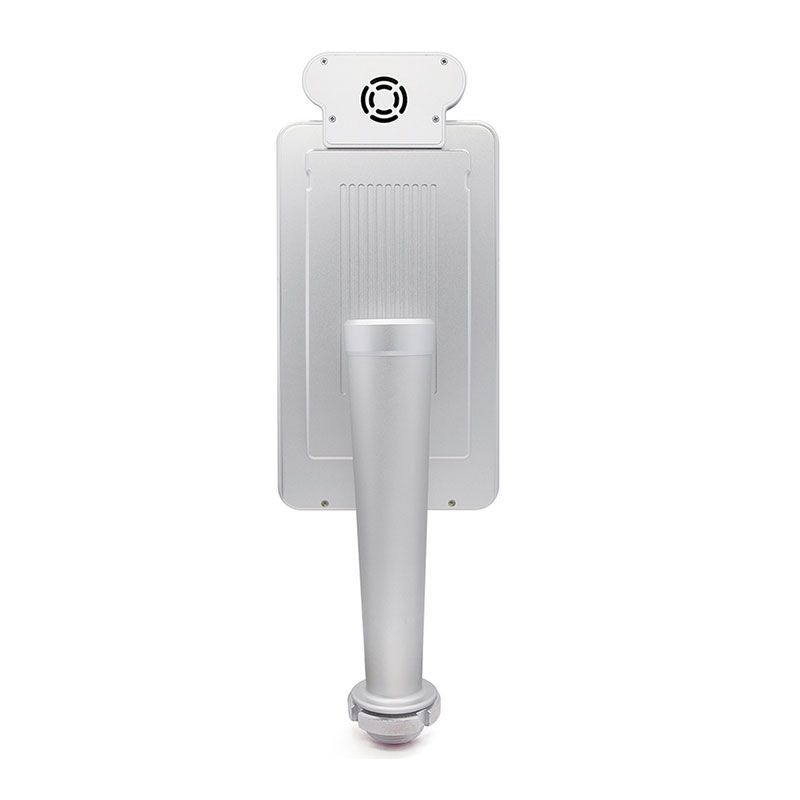

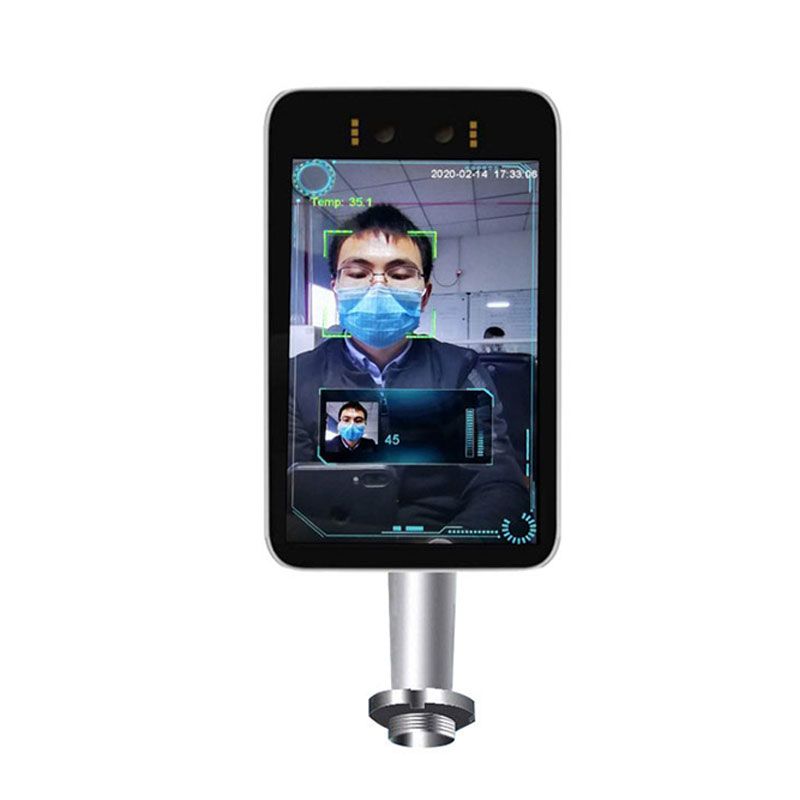

Face recognition Body Temperature Detection Kiosk

Quick Details:

CPURK3288Panel size8"
Detection Accuracy0.3℃Camera2MP
Detection Distance≤ 100 cmStorage8G
Detection  Range10℃~42℃OperatingAndroid


Features

1. 8-inch IPS full-view LCD display.

2. Industrial-class appearance, waterproof and dustproof design which is stable and reliable.

3. Supports 30,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1: N comparison recognition rate is more than 96.7%@0.1% misrecognition rate, and the live detection accuracy rate is 98.3%@1% misrejection rate. Face recognition pass speed is less than 1 second.

4. Supports accurate face recognition and comparison while wearing a mask.

5. Using industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp.

6. Support processors with strong performance: Rockchip RK3288 quad-core processor, Rockchip RK3399 six-core processor and Qualcomm MSM8953 octa-core processor.

7. Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.3 ℃.

8. It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.

9. Attendance temperature measurement data is exported in real time.

10. Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code reader, etc.

11. Supports secondary development.

12. Support system level, APP offline level, APP + background network level multiple API docking.


Specification

Model: SC08KC
CameraResolution2 million pixels
TypeBinocular wide dynamic camera
ApertureF2.4
Focusing distance50-150cm
White balanceauto
Photo flood lightLED and IR dual photo flood light
ScreenSize8.0 inch IPS LCD screen
Resolution800×1280
TouchNot supported (optional support)
ProcessorCPURK3288 (optional RK3399, MSM8953)
StorageEMMC 8G
InterfaceNetwork moduleEthernet and wireless (WIFI)
Audio2.5W / 4R speakers
USB1 USB OTG, 1 USB HOST standard A port
Serial communication1 RS232 serial port
Relay output1 door open signal output
WiegandOne Wiegand 26/34 output, one Wiegand 26/34 input
Upgrade buttonSupport Uboot upgrade button
Wired network1 RJ45 Ethernet socket
FunctionCredit card readerNone (optional IC card reader, ID card, ID card)
Face DetectionSupports detection and tracking of multiple people at the same time
Face libraryUp to 30,000
1: N face recognitionSupport
1: 1 face comparisonSupport
Stranger detectionSupport
Identify distanceSupport
UI interfaceSupport
Upgrade remotelySupport
InterfaceInterfaces include device management, personnel / photo management, record query, etc.
Deployment methodSupport public cloud deployment, privatized deployment,
LAN use, stand-alone use
Infrared thermal imaging moduleTemperature detectionSupport
Temperature detection distance1 meter (optimal distance 0.5 meter)
Temperature measurement accuracy≤ ±0.3℃
Temperature measurement range10℃~42℃
Thermal field of view32 X 32℃
Visitors' temperature is normal and released directlySupport
Abnormal temperature alarmSupport (temperature alarm value can be set)
PowerDC12V(±10%)
Operating temperature0℃~60℃
Storage temperature-20℃~60℃
Power consumption13.5W(Max)
Installation methodScrewed by wall mount bracket
SizeStandard:274.24*128*21.48(mm)
IC card / ID card:296.18*132.88*25(mm)
Packing listMachine * 1, power adapter * 1, manual * 1, certificate of conformity * 1
