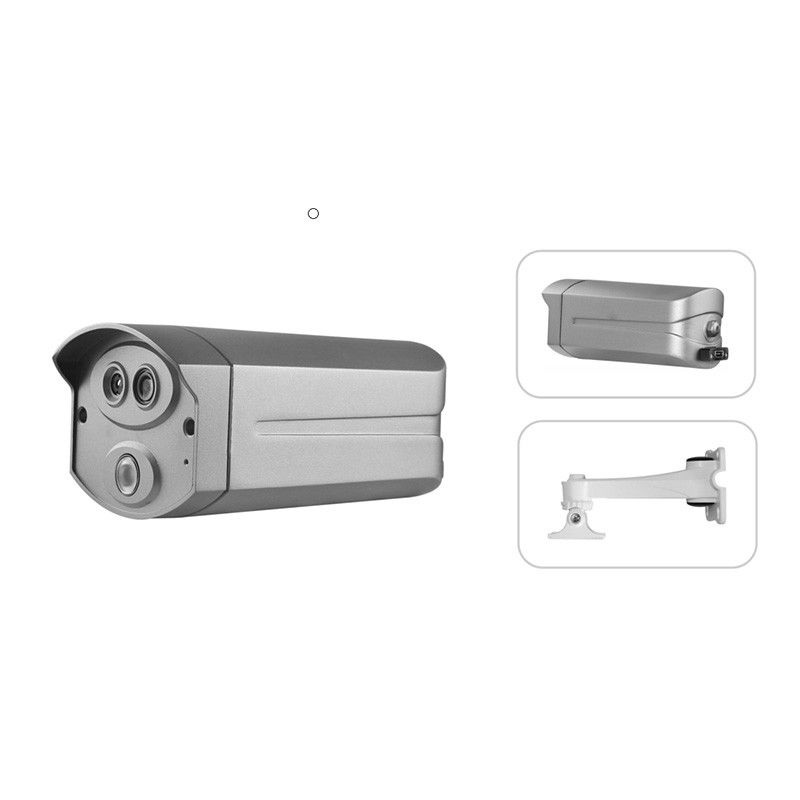

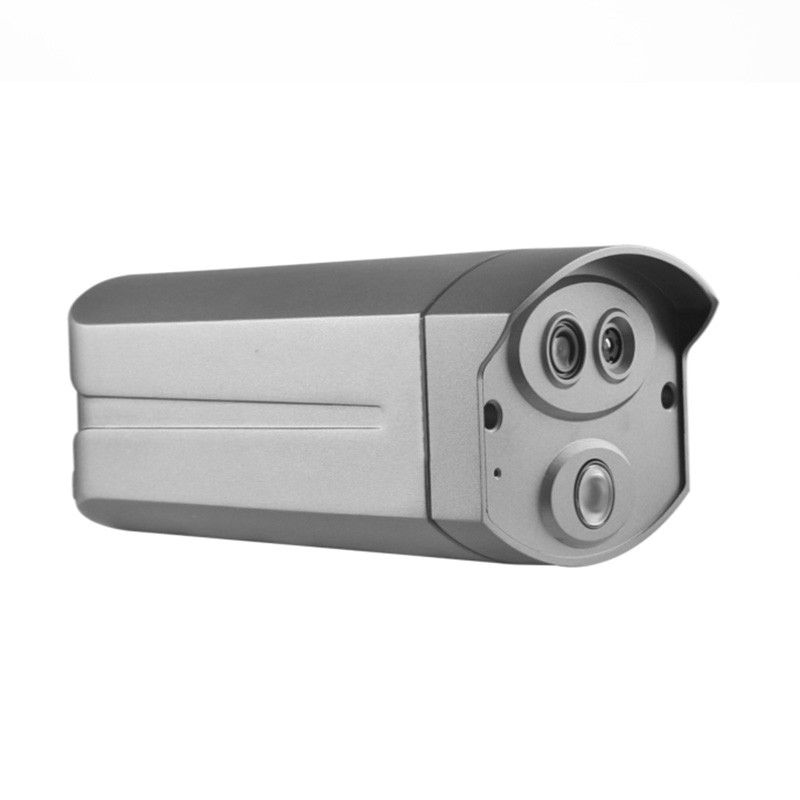

Built in CMS 16G Thermal imaging Camera HDMI output

Quick Details:

Resolution256x192Pixel size12μm
Accuracy± 0.3 ℃NETD≤60mk
Imaging Sensor1/2.8" CMOSFocal length4mm
Wide Dynamic≥80dBIP GradeIP65


Features

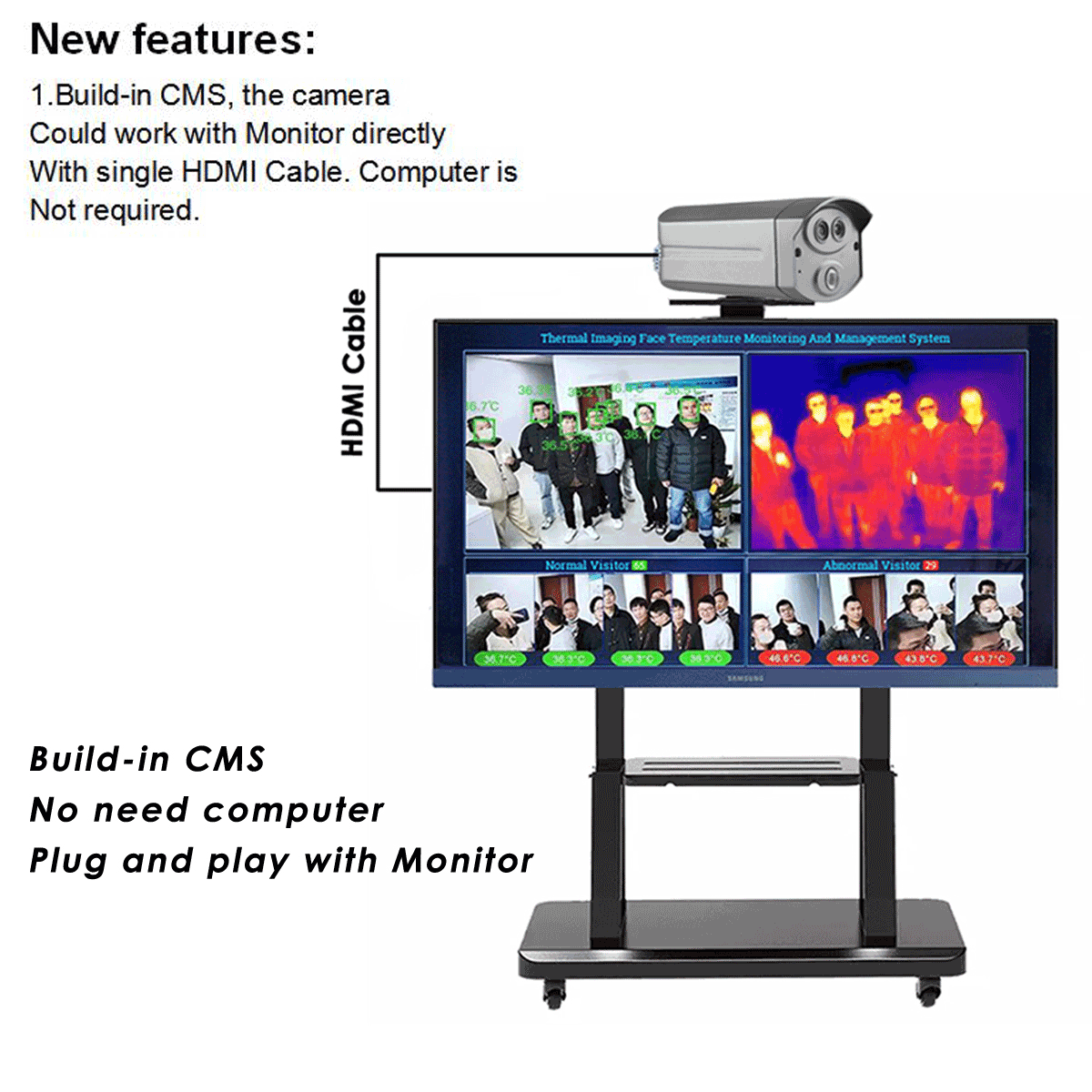

  1. Build-in CMS, the camera Could work with Monitor directly With single HDMI Cable. Computer is not required.

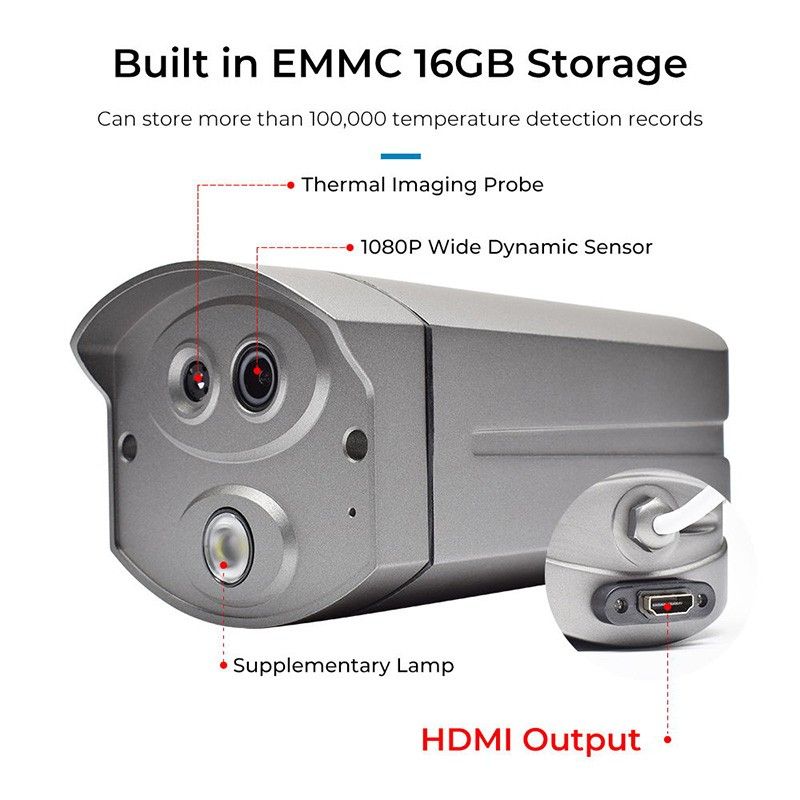

  2. Built in EMMC 16G storage support 100000 temperature records.

  3. The embedded deep learning algorithm supports simultaneous detection of 20-30 faces.

  4. Support customize language of software, need help to translate.

  5. Detection distance 1.5-3m.Detection height:1.5-3m.

  6. Support print LOGO on camera or customize LOGO on software GUI with MOQ required.

  7. CE,FCC, ROHS Certificate available.


Specification

Model: SH-C300T
Thermal Imagery Module
Sensor TypeSilicon oxide non-cooled VOx infrared detector
Resolution256x192
Size12μm
Temp Range-15℃~150℃
Temp Accuracy±0.2℃ target Temp 35℃~38℃;
±0.5℃ target Temp 20℃~33℃ or 38℃~50℃;
±2℃ The rest temp range;
Lens3.2mm
Picturewhite heat, black heat, fusion, rainbow, autumn, noon, iron red, amber and other pseudo-color
Visible Light module
Image sensor1/2.8”2.0M Pixel CMOS
Low lux0.005Lux F1.2(color),0.001Lux F1.2(B/W)
WDR Range≥80dB
S/N Rate≥46dB(AGC OFF)
Lens4mm
View AngleHorizontal 84°,Vertical 45°
AI
Face snapshotThe built-in deep learning AI algorithm supports simultaneous detection of 20-30 faces, face detection, exposure, scoring,
screening, capture upload, support FTP,HTTP and other ways to upload original picture and other pictures of faces.
Face RecognitionBuilt in 50000 Face database
EMMCBuilt in 16GB support max 100000 temperature detection records
Temperature Function
Temp DetectSupport global and regional temperature measurement
Temp abnormal AlarmHigh temp limitation,Low Temp limitation.abnormal temperature alarm
Network protocolSupport RTSP, RTP, TCP, UDP, UPNP, DHCP, PPPoE, ONVIF, GB/T 28181 Protocol etc.
Network Interface1CH 10/100BaseT Ethernet,RJ45
Alarm1 ch alarm out(Alarm linkage)

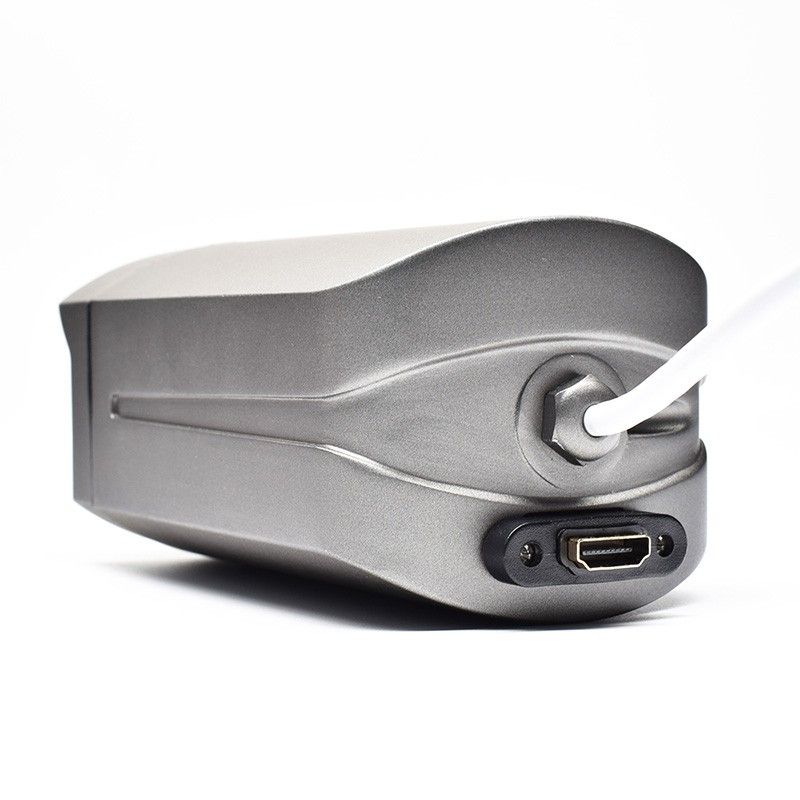

HDMI output1CH HDMI Interface
Audio1ch audio in/out
General
Working Temp-20℃~55℃
Working humidity0%-90% RH
Protect gradeIP65
Power supply12VDC
consumption≤5W
Product size246mm*101mm*78mm
Weight<1kg
