SC700M Embedded vehicle 4G Panel PC 12V TO 36V

Quick Details:

CPUIntel Celeron J1900RAM2GB
Hard Drive32G SSDPanel size7"-21.5"
TouchscreenCapacitive (10 points)PowerDC 12V-36V
MaterialAluminum alloyIP GradeFront IP65

Features

1. Fully enclosed design, the whole PC is dustproof.

2. Seamless design flat bezel, front panel IP65 waterproof.

3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.

4. Industrial LCD panel, wide viewing angle, high nits, true color.

5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

6. High performance motherboard, 7x24 continuous operation.

7. With Phoenix terminal input, it supports 12V-36V wide voltage.

8. With SIM card slot, it support 3G/4G optional. Support 2 RJ45/ 3 COM RS232/RS422/RS485 optional.

9. With waterproof rubber seal on the back side.


Specification


Model: SC700M
PC
CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
ChipsetIntel ValleyView SSA-CUnit
Memory2G DDR3 (4G, 8G optional)
Hard Drive Capacity32G SSD
Hard Drive OptionalSSD: 64G, 128GB, 256GB
HDD: 500GB, 1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI

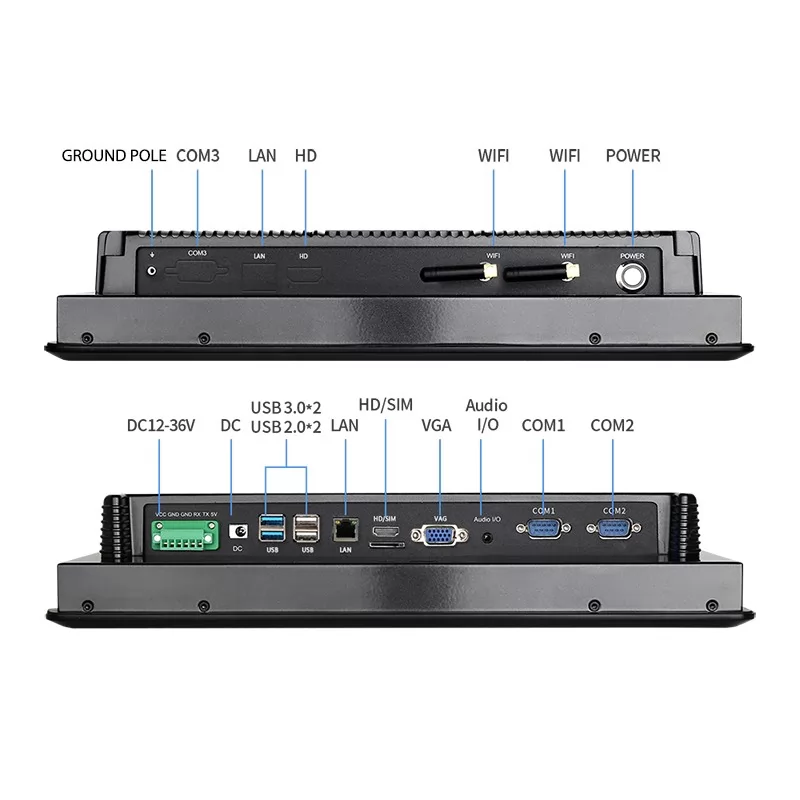

I/O Interface1xUSB 3.0, 3xUSB 2.0, 2xCOM RS232
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC/ Phoenix terminal
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size7", 8", 10.1", 10.4", 11.6", 12", 15", 15.6", 17", 17.3", 19", 21.5"
Resolution1024*600, 1024*768, 1280*800, 1280*1024, 1366*768, 1440*900, 1920*1080
Aspect ratio4:3, 5:4, 16:9, 16:10
Support Color16.7M colors
Brightness (cd/m²)300
Response time5ms
Contrast ratio800:1, 1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Working life>50 million times
Touch options(5 wire resistive touch optional)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V-36V
Power consumption19W-40W
Enclosure
MaterialAluminum Alloy
ColorBlack, Silver
VESA mounting75x75mm/100x100mm
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature RangeOperating: -10 to 60°C, storage: -20 to 70°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Other
Mounting (options)Embedded mounting screws
Wall mounting brackets (optional)
Desk stand holder (optional)
AccessoriesPower adapter, embedded screws, user manual, warranty card
Warranty1 year warranty
CertificateCE, FCC, RoHS


Available Sizes:

SizeResolutionAspect ratioTouch type
7"1024*60016:9capacitive/resistance

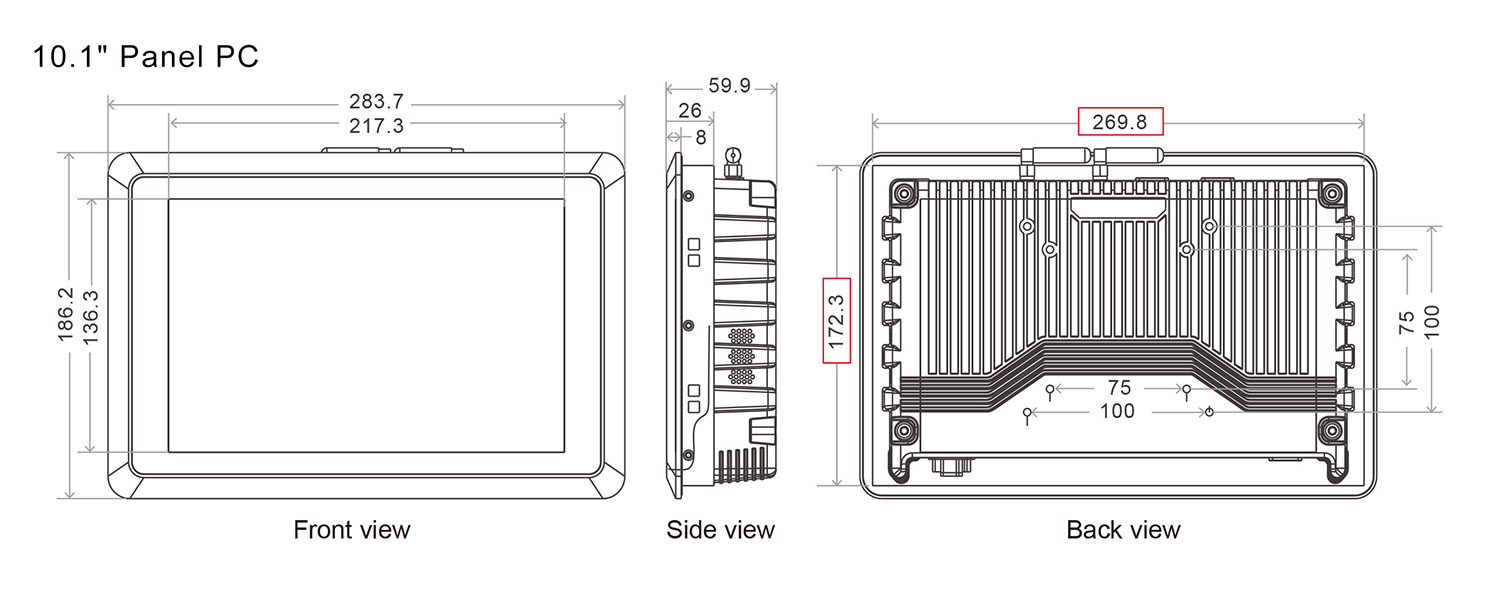

10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance

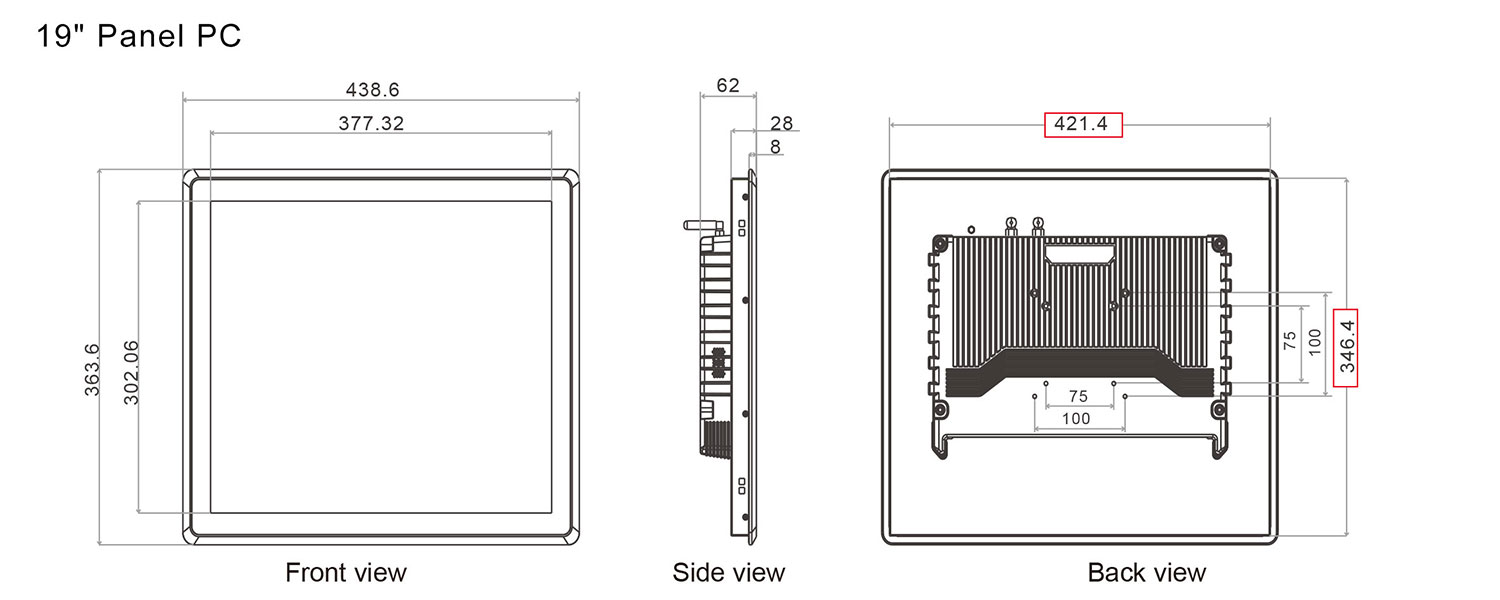

19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
