Industrial Touch Monitor

Home > Products > Touch Monitor > Industrial Touch Monitor

  • Touch Monitor SL400M
  • Touch Monitor SL400M
  • Touch Monitor SL400M
  • Touch Monitor SL400M
  • Touch Monitor SL400M

Touch Monitor SL400M

Quick Details:

Panel size8"-21.5''Brightness300nits
Touch TypeCapacitive TouchInterfaceVGA+DVI+HDMI
View angle85°/85°/85°/85°IP GradeFront IP65
MaterialAluminum AlloyPower SupplyAC 100-240V, DC 12V




Touch Monitor SL400M

Touch Monitor SL400M Feature:

1. Super thin and ultra narrow bezel, Fully enclosed design, the whole monitor is dustproof.

2. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.

3. Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.

4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

5. High performance mainboard, 7x24 continuous operation.

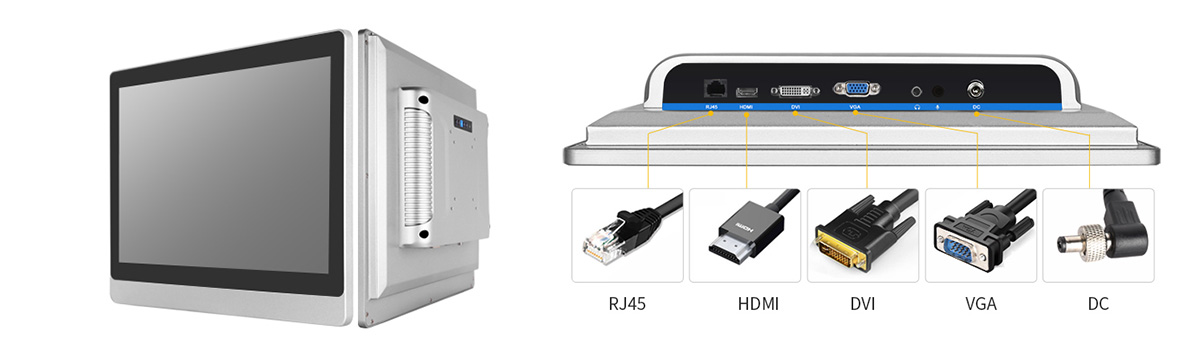

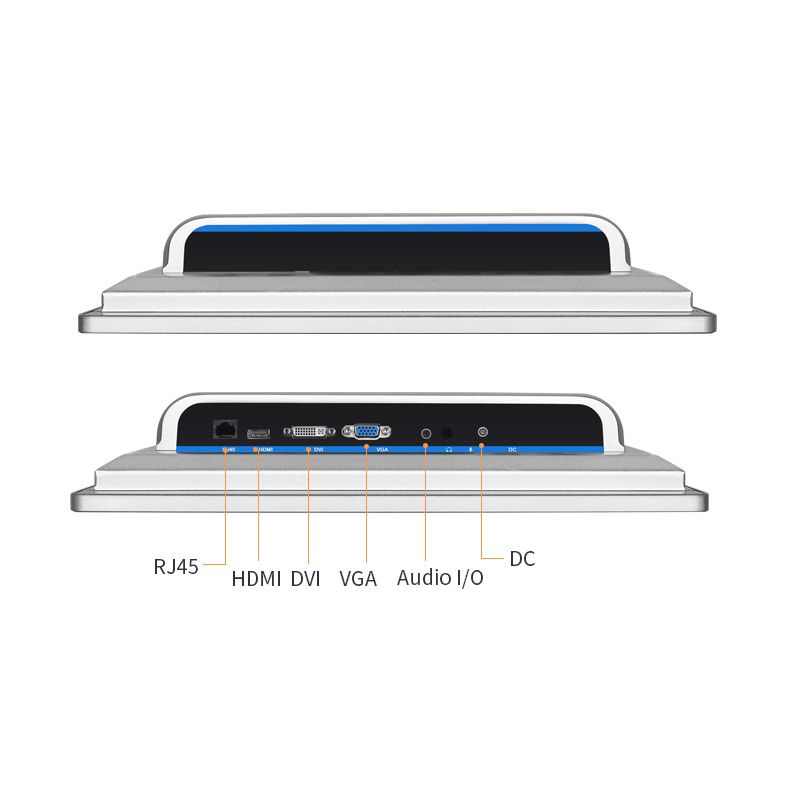

6. VGA+HDMI+DVI interfaces, USB for touch.

7. 12-24V wide voltage support.

8. Anti-interference.

9. Support wall mounting, desk stand, embedded mounting.


Touch Monitor SL400M Specification:

LCD panel
Panel size8"-21.5''
Support Color16.7M colors
Brightness (cd/m²)300+ nits
Backlight typeLED
Backlight life time≥50K hours
View angle85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Touch options5 wires restive touch
Signal Ports
VGA1x VGA
DVI1x DVI
HDMI1x HDMI
Audio in/outoptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OSWindows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power SupplyAC 100 - 240V, 50-60Hz
Working voltageDC 12V
Enclosure
MaterialAluminum Alloy
ColorBlack, Silver
VESA mounting75x75mm/100x100mm
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage: -20 to 80°C
Relative humidityoperating: 10% to 80%, storage: 5% to 90%
Other
Mounting Waywall mounting brackets (optional)
desk stand holder (optional)
AccessoriesPower adapter, Power cord, VGA cable, USB touch cable, user manual, warranty card
Warranty1 year warranty
CertificatesCE, FCC, RoHS

Product Series:

SizeResolutionAspect ratioTouch type
8"1024*7684:3no touch/capacitive/resistance
10.1"1366*76816:9no touch/capacitive/resistance
10.4"1024*7684:3no touch/capacitive/resistance
11.6"1920*108016:9no touch/capacitive/resistance
12"1024*7684:3no touch/capacitive/resistance
15"1024*7684:3no touch/capacitive/resistance
15.6"1920*108016:9no touch/capacitive/resistance
17"1280*10245:4no touch/capacitive/resistance
17.3"1920*108016:9no touch/capacitive/resistance
19"1280*10245:4no touch/capacitive/resistance
19"Widescreen1440*90016:10no touch/capacitive/resistance
21.5"1920*108016:9no touch/capacitive/resistance


Components:

-Package included: Industrial Panel PC SC400X, Power adapter, Power cord;

-Accessories or Parts: VGA/HDMI Video cable, Touch cable, user manual, warranty card;

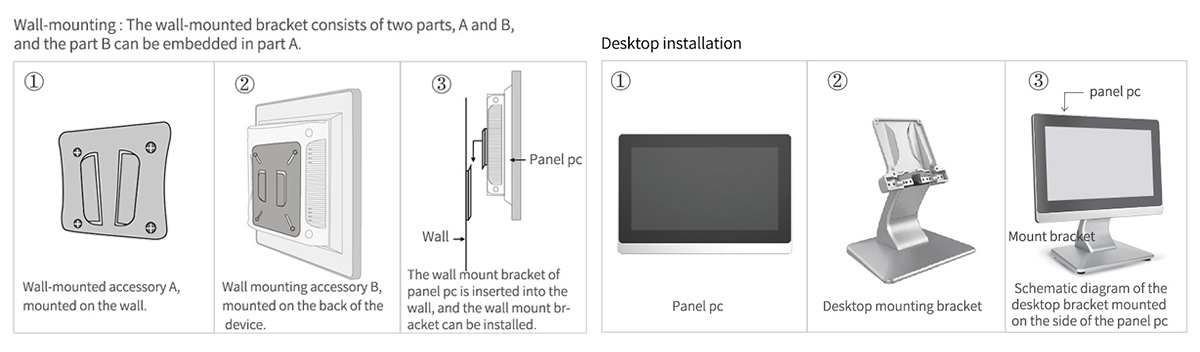

How to install Touch Monitor SL400M?

Touch Monitor SL400M

Certifications:

Touch Monitor SL400M


Touch Monitor SL400M Manufacturing process:

Touch Monitor SL400M

Where can Industrial Panel PC SC400X be used?

Touch Monitor SL400M


FAQ:

1)What is the MOQ?
A: MOQ is 1 pcs.
Sample is available for customer to check the quality before bulk order.

2)Do you accept OEM?
A: Yes,OEM and ODM is warmly welcomed.
It is our company’s strength,we can customize the LCD monitor so that can fully meet customers’ requirements.

3)What payment methods does your company accept?
A: T/T, Western Union and Paypal;

4)What’s the delivery time?
A: Sample:5-15 working days. bulk order 15-30 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.

5)What are the shipping ways?
A: We will ship the goods according to customer’s demand.
Normally by DHL,UPS,Fedex,TNT.
For bulk order,we also can ship by air,by sea.


Touch Monitor SL400M

None

None
Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
