Features
1. Robust and durable, all-metal enclosure, sealing design.

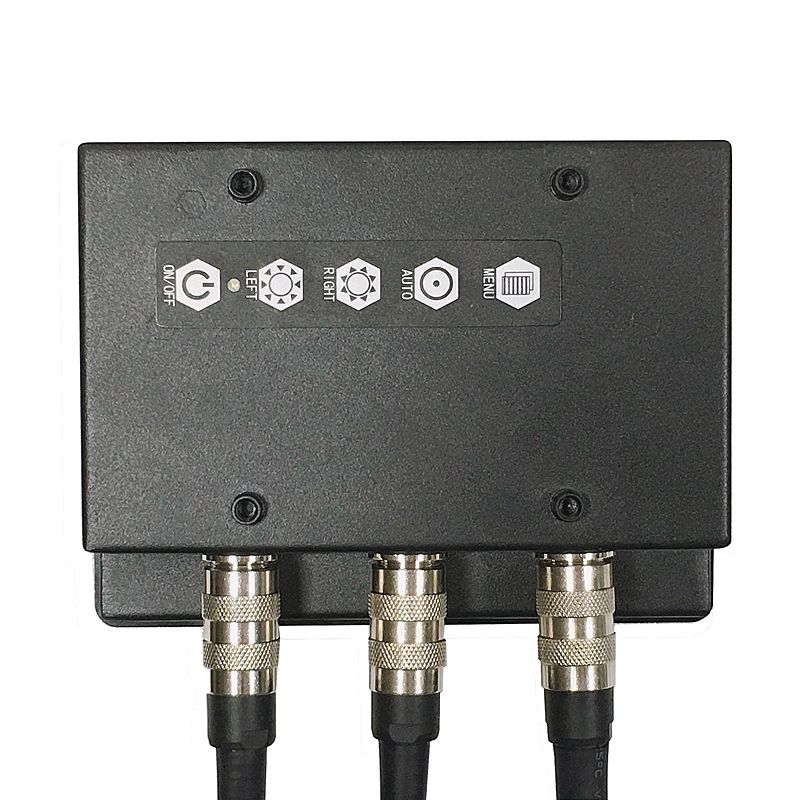

2. Full IP67 waterproof, Sealed I/O with cable set included.
3. 24 inch Industrial LCD panel 1200 nits, sunlight readable.
4. With light sensor for auto dimming.
5. With Optical Bonding 3MM Anti-Glare tempered glass.
6. High performance mainboard, 7x24 continuous operation.
Specification
| Model:SL24W, SL27W | |
| LCD panel | |
| Panel size | 24" 27" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1200 nits, sunlight readable |
| Brightness control | Light sensor |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Singal Ports | |
| HDMI | 1xHDMI |
| VGA | optional |
| DVI | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤50W |
| Enclosure | |
| Material | aluminium alloy front bezel + High strength cold rolled steel back case |
| Color | Black, white, Silver, color can be customized |
| VESA mounting | 100x100 mm |
| IP-grade | Full IP67 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 8 kg(24"), 10.5 kg(27") |
| Gross weight | 10 kg(24"), 12.5 kg(27") |
| Product Dimension | 58.84x35.56x6.7 cm(24"), 67.7x41.52x6.4 cm(27") |
| Packing size | 68x48x19 cm(24"), 81x53x19 cm(27") |
| Accessories | Power adapter, Waterproof Power cord, Waterproof HDMI cable |
| Other | |
| Mounting (options) | 1) wall brackets for wall-mounting, VESA 100×100 mm |
| 2) stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
