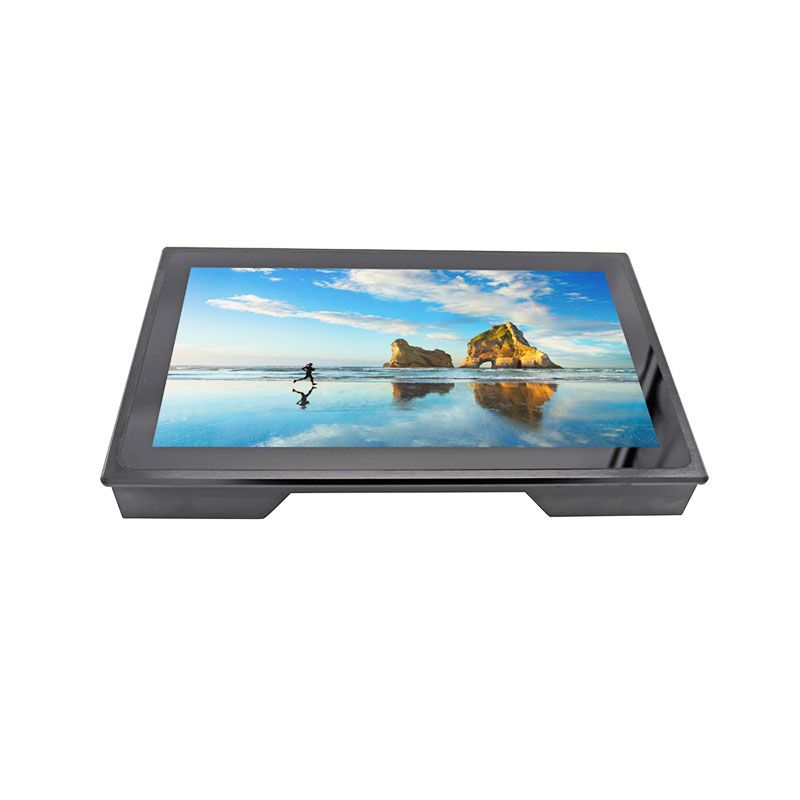

Full IP65 High Brightness Touch Monitor

Home > Products > Touch Monitor > Full IP65 High Brightness Touch Monitor

  • 10.1
  • 10.1
  • 10.1
  • 10.1

10.1" - 24 Inch 1000 nits IP67 Waterproof Monitor LCD

Quick Details:

Panel size10.1" - 24"Operating -20 to 70°C
Singal PortsHDMIColors16.7M
Brightness1000 nitsPower SupplyDC 9-36V
IP gradeFull IP67MaterialAluminium Alloy



1000 Nits Waterproof Screen

Welcome to Sihovision, a leading manufacturer specializing in industrial computers. Designed to endure extreme temperature fluctuations, our 1000 nits waterproof screen is built to thrive in a wide range of environments, from freezing cold to scorching heat. The operating temperature range is -20 to 70°C and the brightness is 1000 nits, ensuring clear visibility even in direct sunlight, so it can be used well in outdoor environments.

At Sihovision, we integrate our abundant resources and cutting-edge technologies to deliver tailor-made solutions. Whether you require specific dimensions, specialized connectors, or specific certifications, we have the expertise to deliver customization.


Contact us today to discuss your unique requirements and embark on a journey toward optimized productivity and efficiency.


Features

1. Aluminum alloy face frame sandblasted oxidation process, anti-UV and anti-discoloration treatment, full IP67 waterproof.

2. Industrial LCD panel, full view angle, 1000nits sunlight readable.

3. 10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.

4. EETI waterproof solution, the touch function can work well with drop water on the screen.

5. Optical bonding between touch screen and LCD.

6.The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C  (-4°F ~158°F)

7. The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.


Specification

Model:SL300W
LCD panel
Panel size10.1" - 24"
Brightness (cd/m²)1000 nits sunlight readable
Brightness controlOSD, Light sensor for auto dimming optional
Support Color16.7M
BacklightWLED, 50K hours
Touch panel
Touchscreen TypeProjected Capacitive Touch (up to 10 points )
Surface Hardness7H
Surface treatmentAnti glare (chemical etching)
Luminousness≥85%
Touch controller ICEETI  81
Available touch driversWindows, Linux, Android, Mac, etc
Touch bondingOptical bonding
Touch optionalResistive touch, IR touch Optional

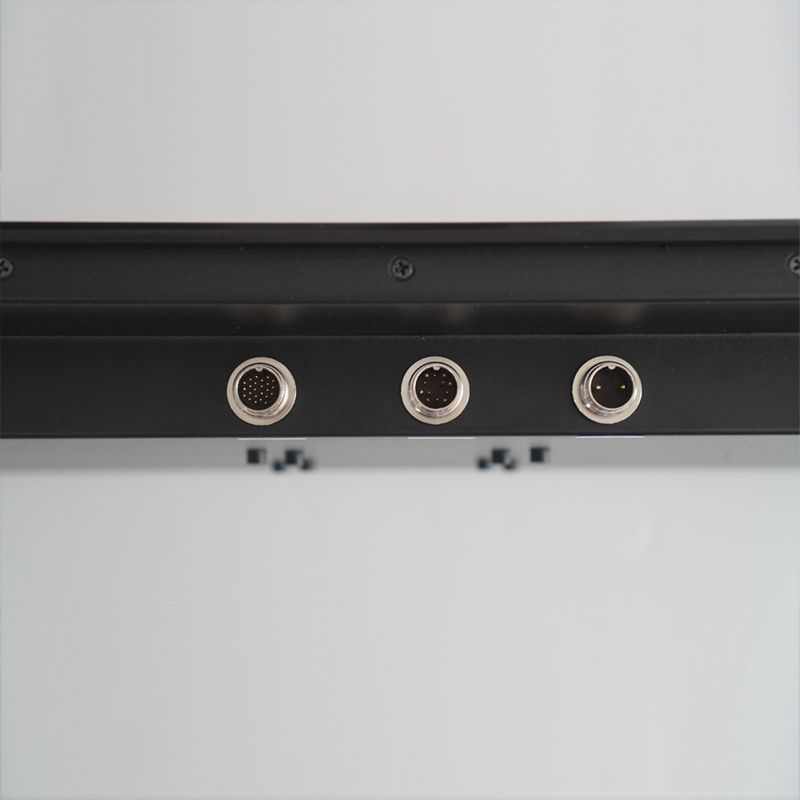

External I/O Ports
Video input1×IP65 HDMII
Touchscreen interface1*IP65 USB
Power connector1*IP65 DC 9-36V
Power Supply
Working voltageDC 9-36V
Power adapterAC 100 ~ 240V input and DC +12V@8A MAX output, 96W
OSD
Function Keys5 Keys: Power/Menu/Up/Down/Return
Menu FunctionsBrightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc.
Support languagesEnglish, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文,简体中文
Enclosure
MaterialAluminium alloy bezel+ Zinc Plating cold rolled steel rear housing
FinishFront bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment
Rear housing: powder coated
ColorBlack, others optional
MountingVESA mount 75/100mm, Panel mount
IP ratingFull IP67 waterproof
Cooling systemPassive - Fanless
Operating Environment
Temperature RangeOperating: -20 °C ~ 70°C  (-4°F ~158°F), Storage: -30 °C~80°C  (-22°F ~176°F)
Relative humidityUp to 100% at all relevant temperatures, non-condensing
VibrationGB/T 2423.10-2019
ShockGB2423.5
EMCClass B
Other

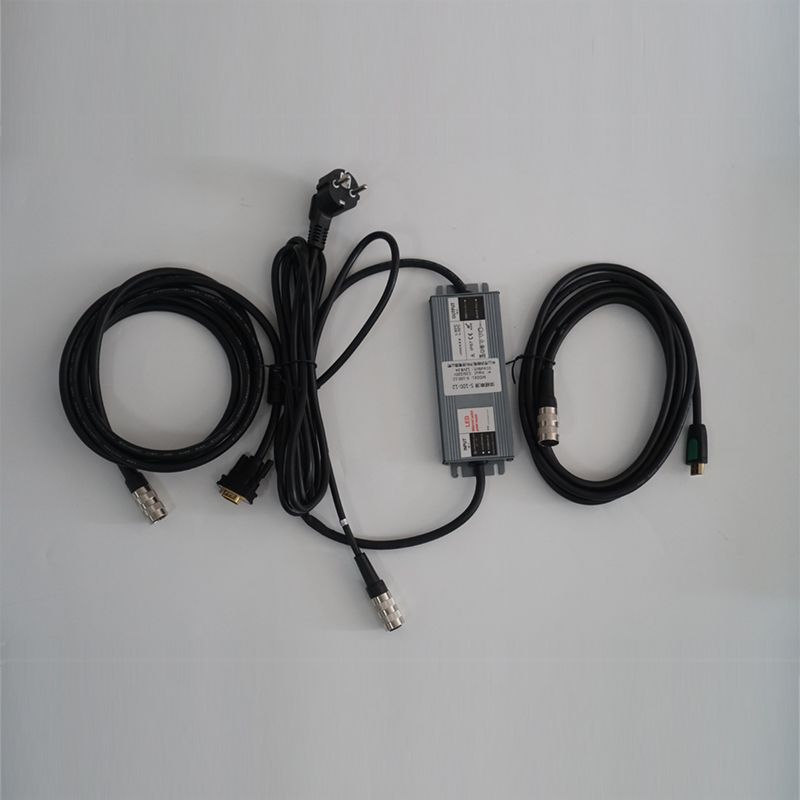

AccessoriesWaterproof Power supply, Waterproof USB touch cable, Waterproof HDMI cable
Warranty1 year warranty
CertificatesCE, FCC, RoHS


Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance






10.1"IP67 waterproof monitor


12"IP67 waterproof monitor


13.3"IP67 waterproof monitor


15" IP67 waterproof monitor


15.6"IP67 waterproof monitor


17" IP65 waterproof monitor


19" IP67 waterproof monitor


21.5"IP67 waterproof monitor


24" IP67 waterproof monitor


1000 nits 24" IP67 Waterproof Monitor LCD

Request a Quote
">
For better quotation, pls include:
Size / Application / Quantity / Special requests
