Features
1. Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , Full IP65 waterproof and dustproof.
2. Industrial LCD panel, full view angle, 1000nits sunlight readable, OSD diming brightness
3. HDMI, USB, DC in one cable.
4. EETI waterproof solution, the touch function can work well with drop water on the screen.
5. The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F).
6. The front frame and the rear shell are sealed with waterproof tape, which can be disassembled for inspection and maintenance without affecting the waterproof performance.
Specification
| Model:SL05W | |
| LCD panel | |
| Panel size | 5" |
| Display active area | 5寸：108(W)×64.8(H) mm / 4.252x2.551 in |
| Resolution | 800*480 |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | OSD |
| Contrast ratio | 800:1 |
| View angle | 70°/70°/60°/70° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Resistive touch |
| Surface Hardness | 3H |
| Surface treatment | Anti glare |
| Luminousness | ≥80% |
| Touch controller IC | EETI ETR4000 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air Bonding |
| Touch optional | Capacitive touch, IR touch optional |
| External I/O Ports | |

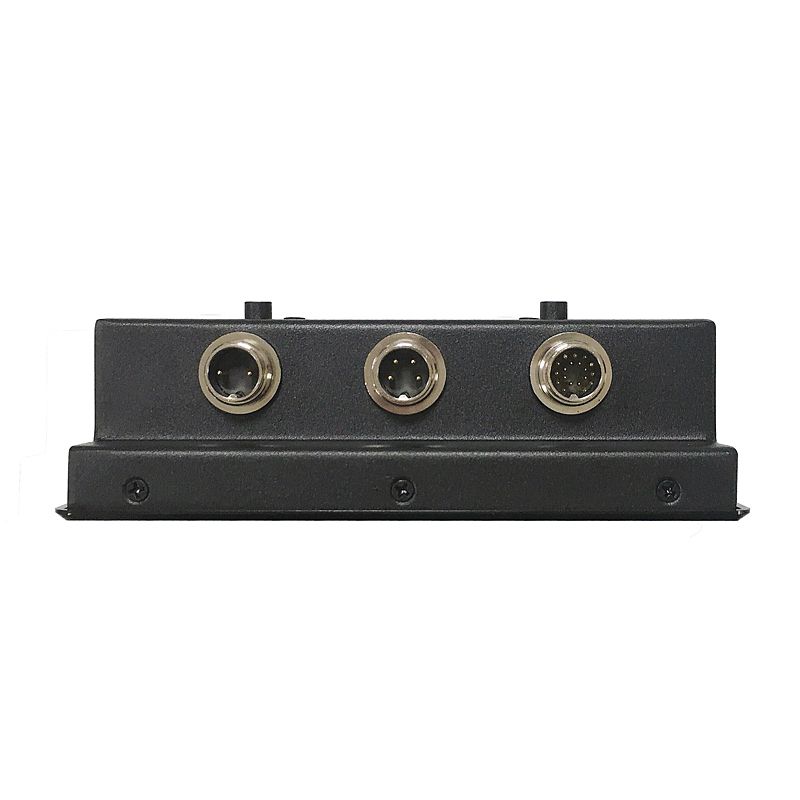

| Video input | 1× IP65 HDMI |
| Touchscreen interface | 1×IP65 USB |
| Power connector | 1×IP65 9~36V DC |
| Power Supply | |
| Working voltage | DC 9~36V |
| Power consumption | 10W |
| Power adapter | AC 100 ~ 240V input and DC [email protected] MAX output, 40W |
| OSD | |
| Function Keys | 2 Keys: Up/Down |
| Menu Functions | Brightness |
| Support languages | English |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| Mounting | VESA mount 75*75mm |
| IP rating | Full IP65 |
| Cooling system | Passive - Fanless |
| Design | Open frame design(3mm bezel design optional) |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Weight | Net weight 0.8kg (1.76 lb) Gross weight 1.8kg (3.96 lb) |
| Product Dimension | 205mm*125mm*35mm (8.07×4.921×1.378 in ) |
| Packing info | 1pcs/ctn 24×21×11.5cm (9.44×8.26×4.52 in ) 1.8kg (3.968 lb) 10pcs/ctn 58×26×44cm (22.83×10.23×17.33 in ) 20kg (44.09 lb) |
| Accessories | Power adapter, power cord |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
5" IP65 waterproof monitor
