Professional Industrial Marine Display Monitor - IP67 Waterproof 1500 Nits Sunlight Readable LCD Screen with Optical Bonding Technology
Premium Ultra-Narrow Bezel Design for Enhanced Visual Performance
Experience exceptional viewing clarity with our cutting-edge ultra-narrow bezel architecture, engineered to maximize screen real estate while delivering an immersive visual experience ideal for marine navigation and industrial monitoring applications.
Complete IP67 Waterproof and Dustproof Protection
Featuring comprehensive IP67-certified environmental sealing, this monitor provides absolute protection against water ingress and dust contamination. The waterproof connector system ensures reliable signal transmission even in the harshest marine and industrial environments.
Industrial-Grade LCD Panel with Superior Sunlight Visibility
Equipped with a professional-grade industrial LCD panel offering full viewing angle capability and extraordinary 1500 nits brightness for exceptional sunlight readability. The integrated ambient light sensor enables intelligent automatic brightness adjustment, optimizing visibility while conserving power across varying lighting conditions.
Advanced 10-Point PCAP Touchscreen with Military-Grade Protection
The precision 10-point projected capacitive (PCAP) touch panel features a robust 2mm chemically strengthened tempered glass cover achieving 7H surface hardness rating. Premium anti-glare surface treatment minimizes reflections and enhances touch accuracy in direct sunlight conditions.
EETI Waterproof Touch Technology for Wet Operation
Incorporating advanced EETI waterproof touch solution, ensuring flawless touch functionality even with water droplets present on the screen surface—essential for marine applications and outdoor industrial environments.
Optical Bonding Integration for Enhanced Durability
Professional optical bonding technique seamlessly integrates the touchscreen with the LCD panel, eliminating air gaps to enhance contrast ratio, reduce parallax, improve impact resistance, and prevent moisture infiltration.
Industrial-Grade Construction for Continuous 24/7 Operation
Manufactured with premium industrial-grade components specifically engineered for continuous 7×24 operation reliability. Extended operating temperature range from -20°C to 70°C (-4°F to 158°F) ensures dependable performance across extreme environmental conditions.
Serviceable Waterproof Design with Maintenance Accessibility
The front frame and rear enclosure utilize precision waterproof tape sealing, enabling complete disassembly for inspection and maintenance procedures without compromising the IP67 waterproof integrity—reducing downtime and extending operational lifespan.

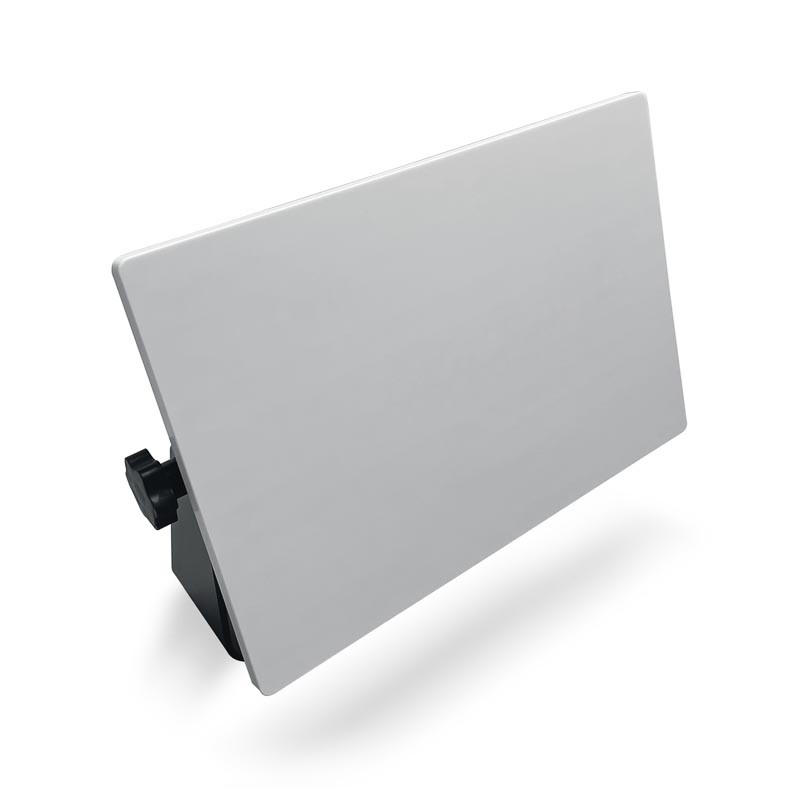

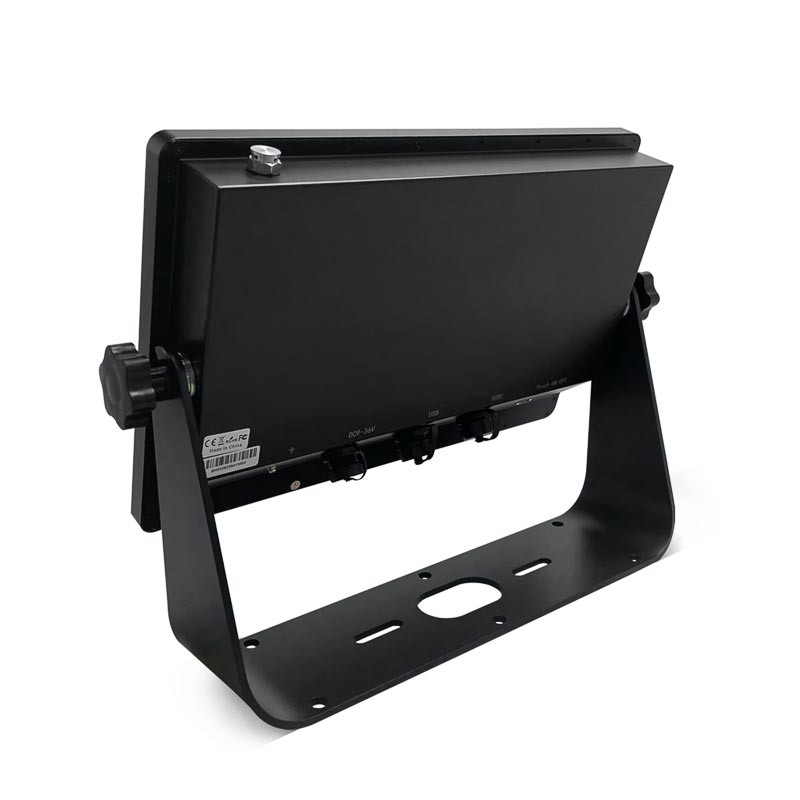

Versatile U-Shaped Mounting Bracket Included
Complete with a robust U-shaped mounting bracket system, facilitating flexible installation configurations for various mounting scenarios in marine vessels, industrial control rooms, and outdoor applications.
Specialized Garmin Equipment Integration
This monitor represents a purpose-engineered solution specifically designed for seamless integration with Garmin navigation systems, ensuring optimal compatibility, performance, and reliability for professional marine navigation applications.
Specification Marine Monitor IP67 with Industrial Touch Screen
| Model:SL600W | |
| LCD panel | |
| Panel size | 15.6",18.5", 21.5", 23.8" |
| Brightness (cd/m²) | 1500 nits sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |

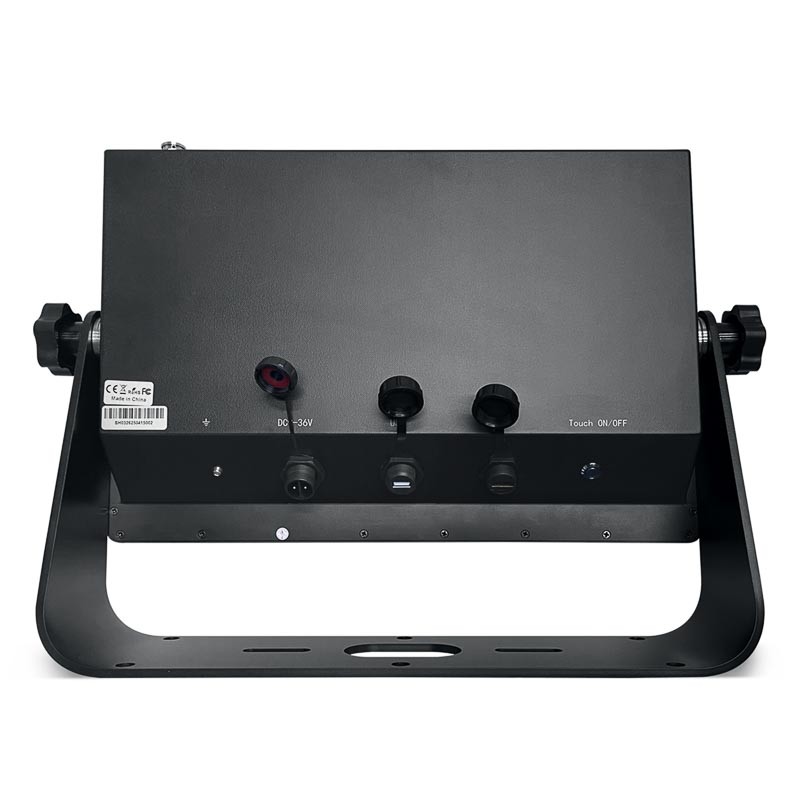

| External I/O Ports | |

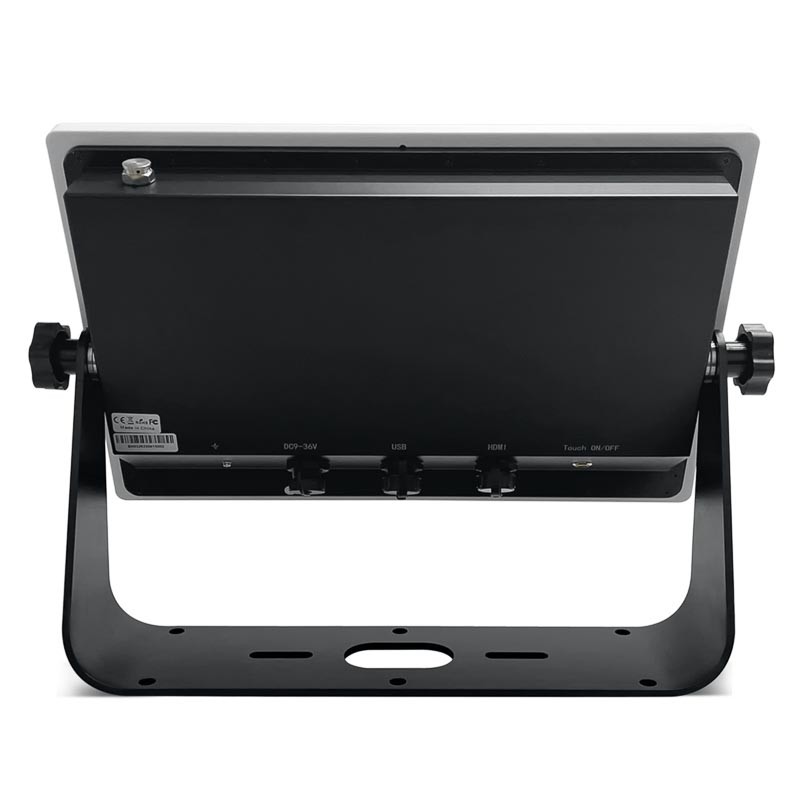

| Video input | 1*IP67 HDMI |
| Touchscreen interface | 1*IP67 USB |
| Power connector | 1*IP67 DC 9-36V |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power consumption | 30W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| OSD | |
| Function Keys | Front 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文，简体中文 |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black, others optional |
| Mounting | VESA mount 75/100mm, Panel mount |
| IP rating | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Accessories | Waterproof Power supply, Waterproof USB touch cable, Waterproof HDMI cable |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Features of Marine Monitor IP67 with Industrial Touch Screen
IP67 waterproof LCD screen
Sunlight readable 1500 nits
Optical bonding technology
PCAP touchscreen
24/7 continuous operation
Wide temperature operation
Garmin compatible monitor
Marine navigation display
Industrial-grade components
Contact us today to discuss your marine application and get a customized IP67 marine monitor solution.
Marine Monitor IP67 with Industrial Touch Screen is widely used in environments where waterproof protection, durability, and stable touch operation are essential.

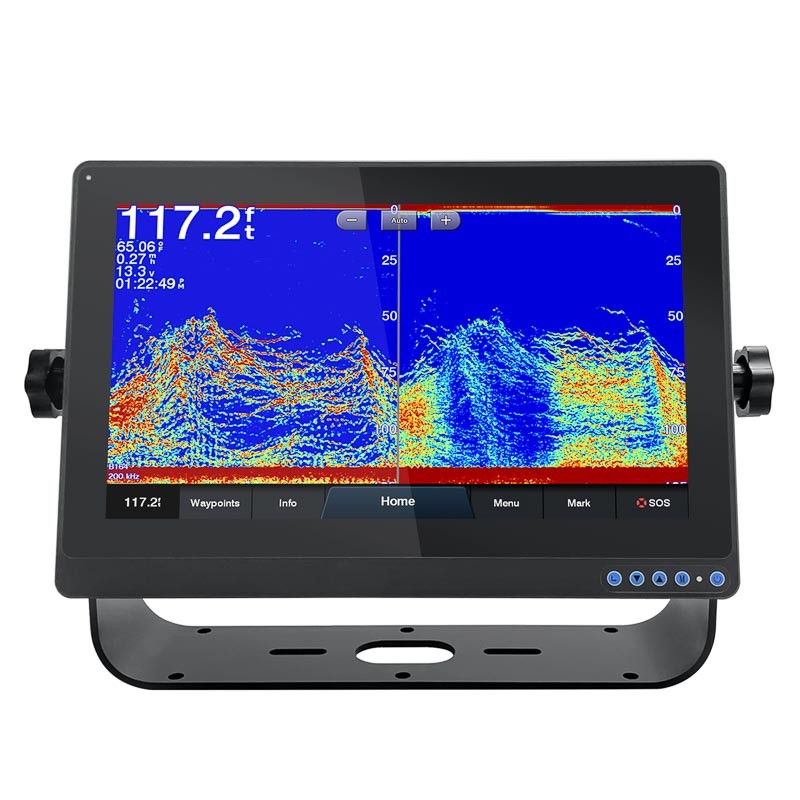

It is commonly applied in boat and yacht navigation systems as a secondary display for chartplotters, radar, and sonar data. With IP67 waterproof rating, the monitor operates reliably on open decks and helm stations exposed to rain, spray, and saltwater.
In commercial vessels and offshore platforms, the IP67 marine monitor supports real-time monitoring of navigation, engine status, and onboard systems, ensuring clear visibility and accurate touch control in harsh marine conditions.
The monitor is also suitable for marine control panels and bridge systems, where industrial-grade touch screens provide consistent performance under vibration, humidity, and temperature changes.
Overall, Marine Monitor IP67 with Industrial Touch Screen is designed for marine navigation, vessel monitoring, and onboard control applications, offering long-term reliability in demanding marine environments.
