Features
Stainless steel 316 material, Full IP65 waterproof.
Industrial LCD panel, full view angle, 1000nits sunlight readable, with a dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
Flat resistive touch screen with rounded corner design. Anti-glare surface treatment.
EETI waterproof solution.
The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F).
Optical bonding between touch screen and LCD.
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
Specification
| LCD panel | |
| Panel size | 7" - 21.5" |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | Dimmer/Knob for dimming |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Capacitive touch |
| Surface Hardness | 7H |
| Surface treatment | Anti glare |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch optional | Resistive Touch, IR touch Optional |

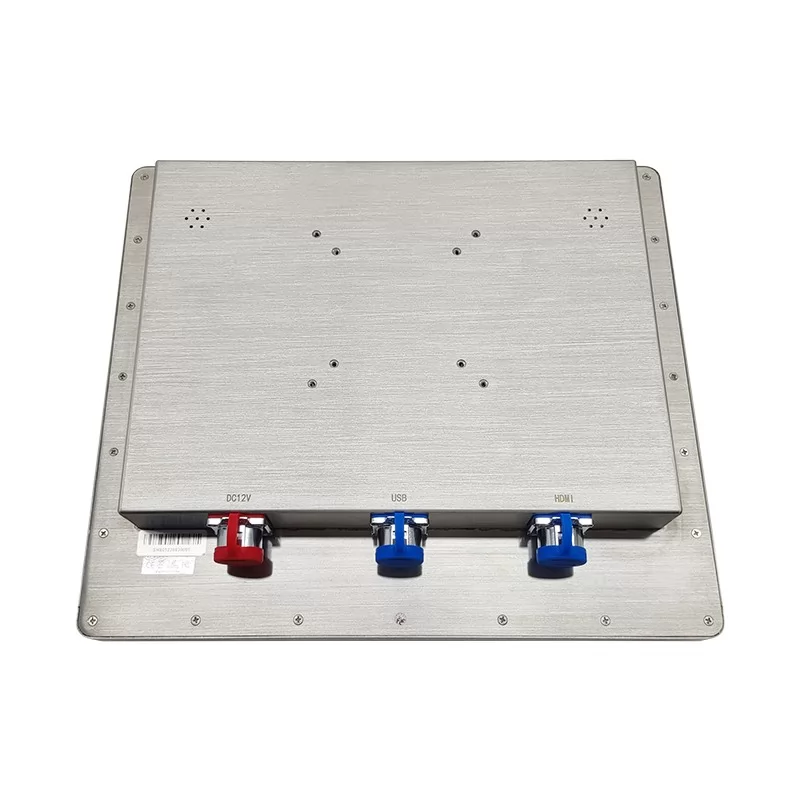

| External I/O Ports | |
| Video input | 1*IP65 HDMI |
| Touchscreen interface | 1*IP65 USB |
| Power connector | 1*IP65 DC12V |
| Power Supply | |
| Working voltage | DC 12V |
| Power consumption | 15W |
| Power adapter | AC 100 ~ 240V input and DC +12V@8A MAX output, 96W |
| OSD | |
| Function Keys | 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文，简体中文 |
| Enclosure | |
| Material | Stainless steel 316/304 |
| Finish | Wire drawing |
| Color | Silver |
| Mounting | VESA mount 75/100mm |
| IP rating | Full waterproof IP65/IP67 |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F), Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Other | |
| Accessories | Power supply, Waterproof USB touch cable, Waterproof HDMI cable |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |

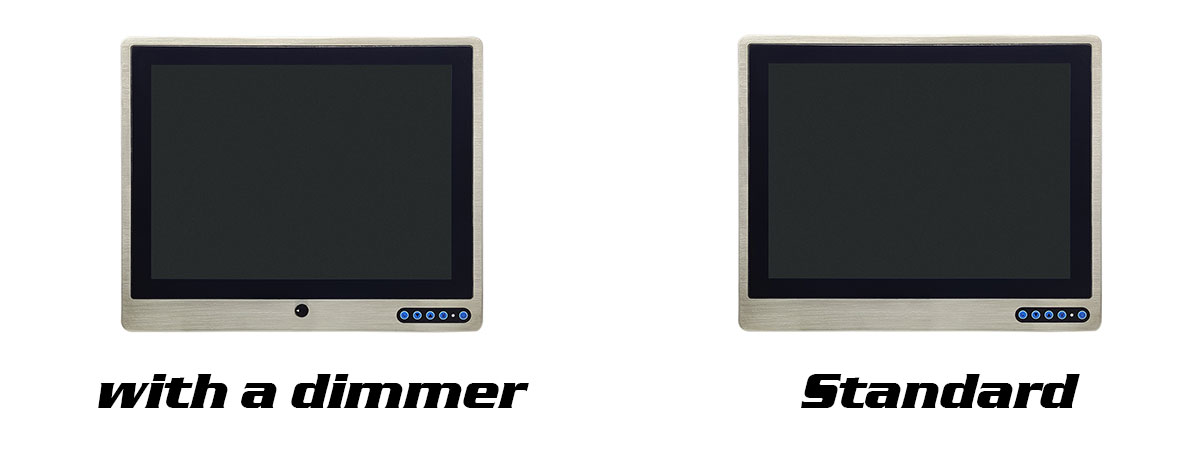

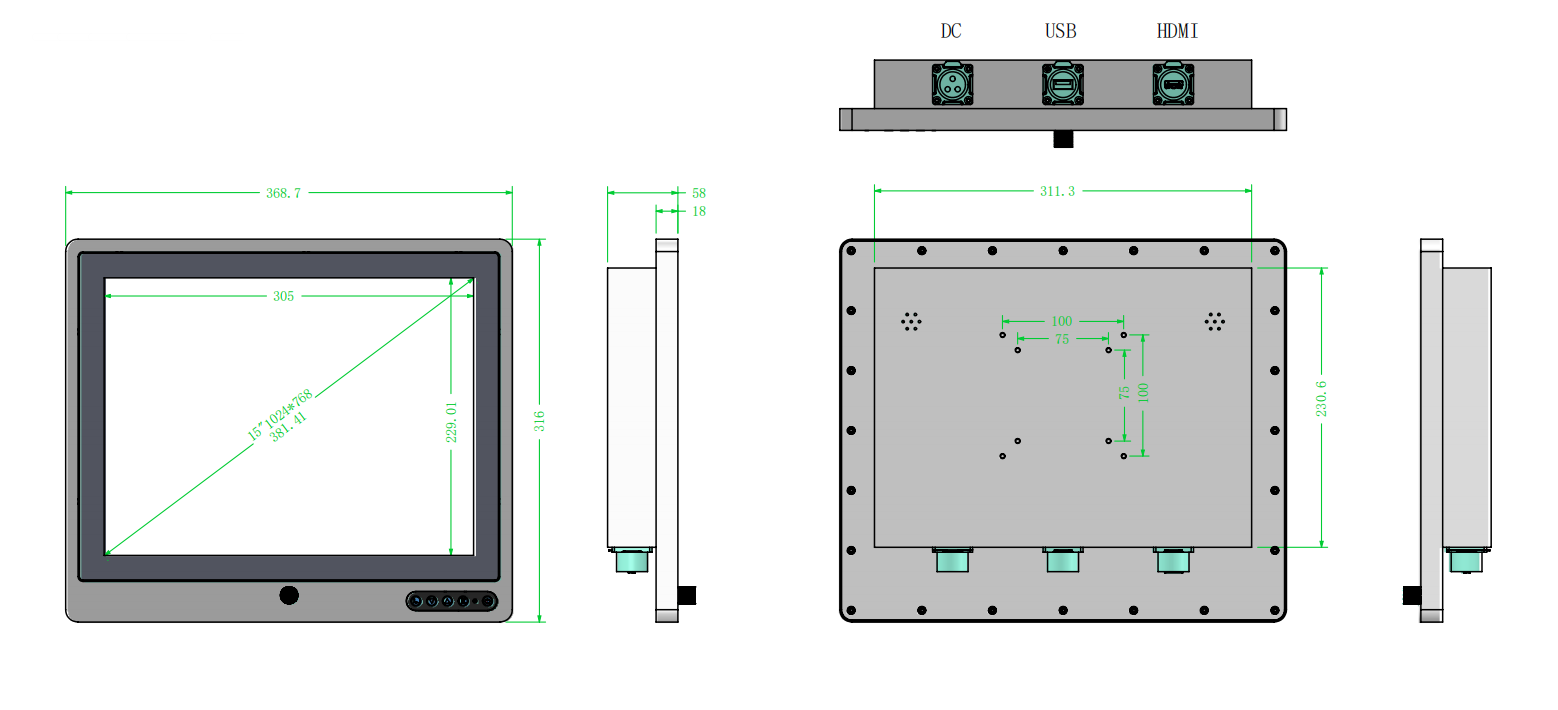

With a dimmer for controlling the brightness

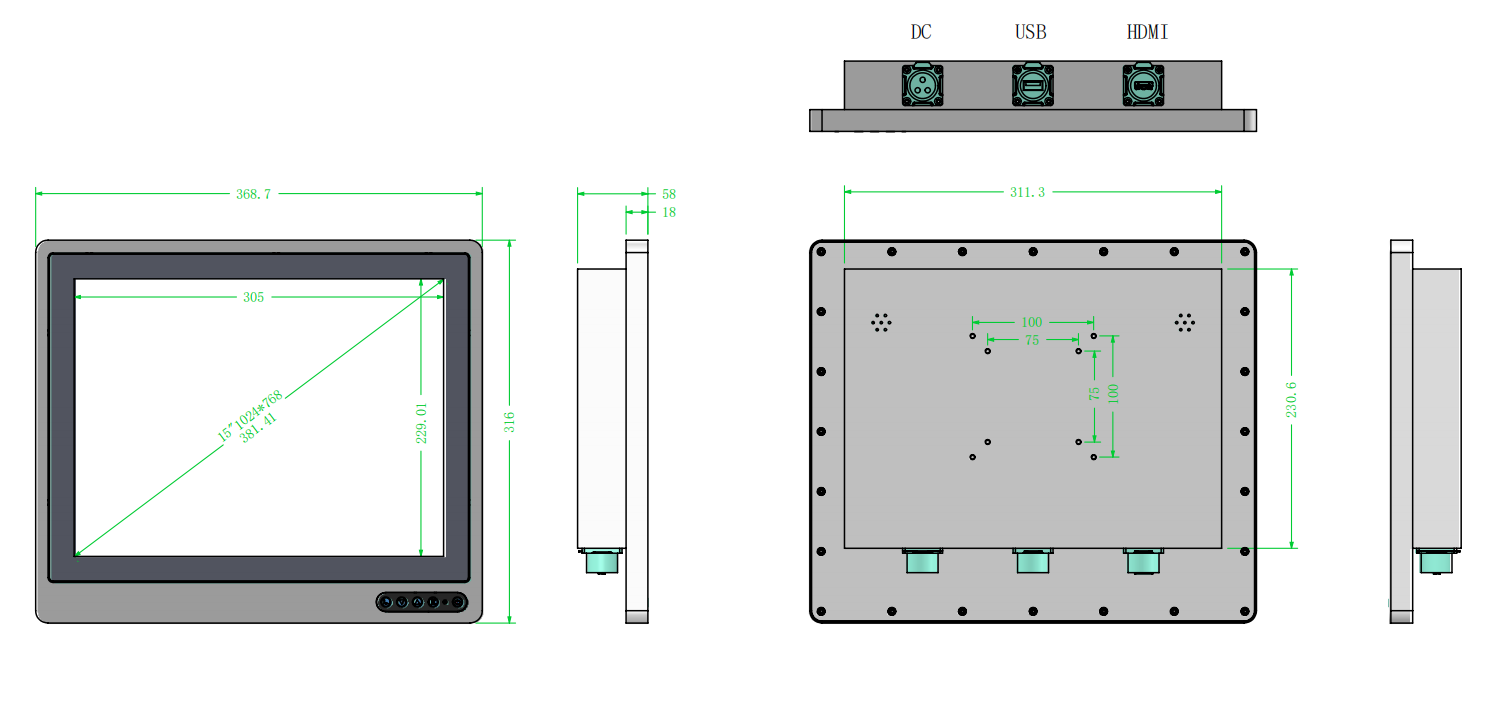

Standard version
