12.1 Inch EETI Touch Screen Monitor with Raspberry Pi 4B

Quick Details:

Panel size12"Brightness1000 nits
Touch TypeCapacitiveInterfaceUSB,GPIO,LAN
MaterialMetalIP gradeFront IP65
Warrantyone yearCertificateCE, FCC, RoHS


1. Aluminum alloy frame and heat sink plate are sandblasted and oxidized, anti-UV and anti-discoloration treatment, the whole machine is IP65 waterproof, and M12 metal waterproof interface

2. Industrial-grade LCD screen, full viewing angle, 1000 brightness visible under sunlight, knob to adjust brightness

3.10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface is treated with AG anti-glare treatment

4.EETI touch control solution, normal touch when there are water droplets on the touch screen

5. The touch screen and LCD screen are bonded using a full bonding process.

6. Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃

7. The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.

8. Built-in Raspberry Pi 4B, external 4 10pin GPIO interfaces


Model: SC121
CPUBroadcom BCM2711, 1.5 GHz, 64-bit, 4 cores, ARM Cortex-A72 architecture, 1MB shared L2 cache
Hard Drive Capacity16G
GraphicsBroadcom VideoCore VI @ 500 MHz
Network10/100/1000 Mbit/s
Wireless Networkb/g/n/ac dual-band 2.4/5 GHz Bluetooth 5.0
Expand port40pinGPIO
Preinstalled OSRaspbian
USB3* IP65 USB2.0
GPIO4* IP65 10pin GPIO
LAN1* IP65 RJ45
Power input1* IP65 12V DC
LCD panel
Panel size12.1"
Display active area262.32(W)×164.4(H) mm
Aspect ratio16:10
Support Color16.7M colors
Brightness (cd/m²)1000 nits
Brightness controlDimmer
Response time5ms
Contrast ratio1200:1
View angle85°/85°/85°/85° (R/L/U/D)
BacklightWLED, 50K hours
Touch panel
Touchscreen TypeProjected Capacitive Touch (up to 10 points )
Surface hardness7H
Surface treatmentAnti glare (chemical etching)
Touch controller ICILITEK2510
Available touch driversWindows, Linux, Android, Mac, Raspbian Etc.
Touch bondingOptical bonding
Touch options(5 wire resistive touch, non touch, IR touch optional)
Power Supply
Working voltageDC 12V
Power consumption15W
Power adapterAC 100 ~ 240V input and DC +12V@5A MAX output, 60W
MaterialAluminium alloy bezel+ Zinc Plating cold rolled steel rear housing
FinishFront bezel: Sandblasting+Hard Anodizing,
UV-protection and Anti-discoloration treatment
Rear housing: powder coated
MountingVESA mount 75*75mm
IP ratingFull IP65
Cooling systemPassive - Fanless
Operating Environment
Temperature RangeOperating: -20 °C ~ 70°C  (-4°F ~158°F)
Storage: -30 °C~80°C  (-22°F ~176°F)
Relative humidityUp to 90% at all relevant temperatures, non-condensing
VibrationGB/T 2423.10-2019
EMCClass B
Packing Details
Product weightNet weight 3.9kg   Gross weight 5.54kg

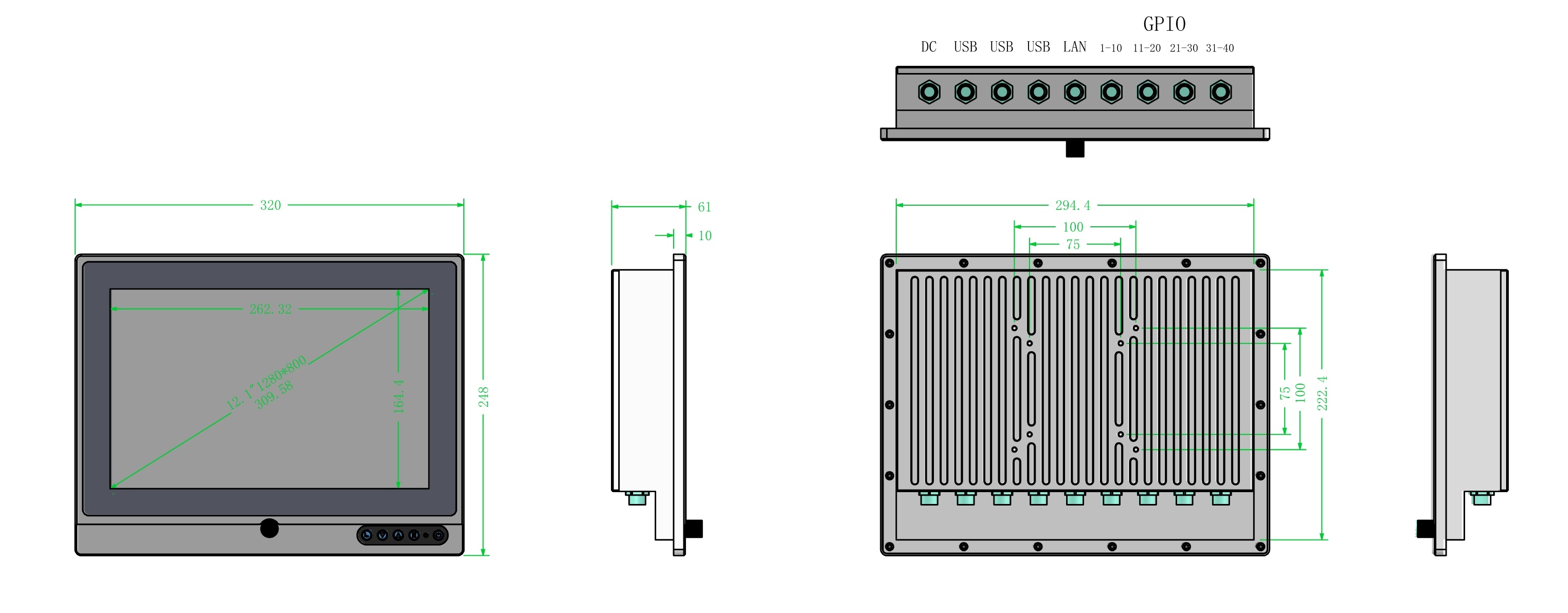

Product dimension320×248×61mm
Packing info1pcs/ctn  43×28×41cm  8kg
AccessoriesWaterproof adapter, waterproof USB cable, waterproof network cable, waterproof GPIO cable, 40pinGPIO, desktop mounting bracket
Warranty1 year
CertificateCE, FCC, RoHS
