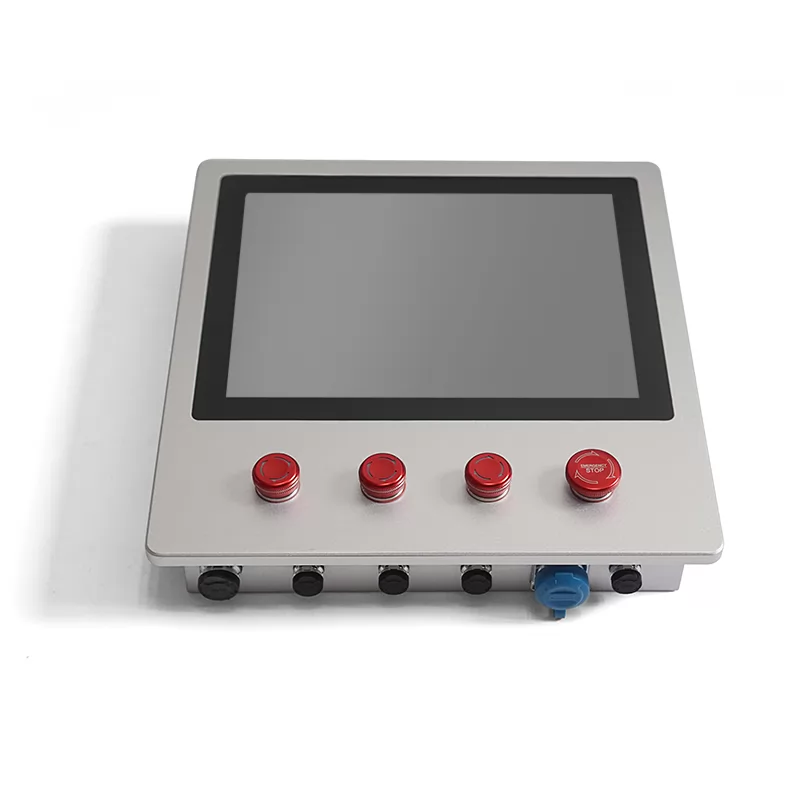

12 inch full IP65 waterproof Industrial control Monitor with 4 Buttons

Quick Details:

Panel size12.1"Resolution1024*768
Aspect ratio4:3InterfaceHDMI/VGA/RS232
Brightness300nitsPower SupplyDC 12V
Operating-20 to 70°CIP gradeFull IP65



Features

1. Robust and durable, all-metal enclosure, sealing design, full IP65 waterproof, Sealed I/O with cable set included.

2. 12.1'' Industrial LCD panel.

3. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.

4. High performance mainboard, 7x24 continuous operation.

5. Interfaces: HDMI, 3xUSB or RS232 for RFID.

3x Buttons for control, red green, yellow.


Specification

                                                                        Model:SL121W
LCD panel
Panel size12.1"
Resolution1024*768
Aspect ratio4:3
Support Color16.7M colors
Brightness (cd/m²)300 nits (1000nits, sunlight readable Optional)
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeNo Touch
Touch options(10points capacitive touch, or 5 wires restive touch optional)
Singal Ports
HDMI1x HDMI
VGA1x VGA
RS2323x USB or RS232 for RFID
Buttons3x Buttons for control, red green, yellow
Audio in/outoptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position,  language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Power consumption≤30W
Enclosure
Materialaluminium alloy front bezel + High strength cold rolled steel back case
ColorBlack, white, Silver, color can be customized
VESA mounting100x100 mm
IP-gradeFull IP65 waterproof
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityoperating: 10% to 90%, storage: 5% to 90%
Packing Details
Net weight3.3kg
Gross weight6.25 kg
Product Dimension32.2x34.2x6 cm
Packing size46.5x43x18 cm
AccessoriesPower adapter, Waterproof Power cord, Waterproof HDMI/USB cable, Wall mount
Other
Mounting (options)1) wall brackets for wall-mounting, VESA 100×100 mm
2) stable metal holder to support the monitor
Warranty1 year warranty
