Military Connnector D38999 21.5" LCD Monitor 1000 nits

Quick Details:

Panel size21.5"Resolution1920*1080
Aspect ratio16:9InterfaceMIL-DTL-38999
Brightness1000nitsIP GradeFull IP67
MaterialStainless steel 304Power SupplyAC 100 - 240V



Features

  1. Material: Stainless Steel 304, Full IP67 waterproof, Sealed I/O cables included.

  2. Black Powder coated Housing with front OSD buttons.

  3. 21.5" Industrial LCD panel, 1000 nits. sunlight readable.

  4. Covered with 3mm AF glass, anti-fogging, anti-fingerprint.

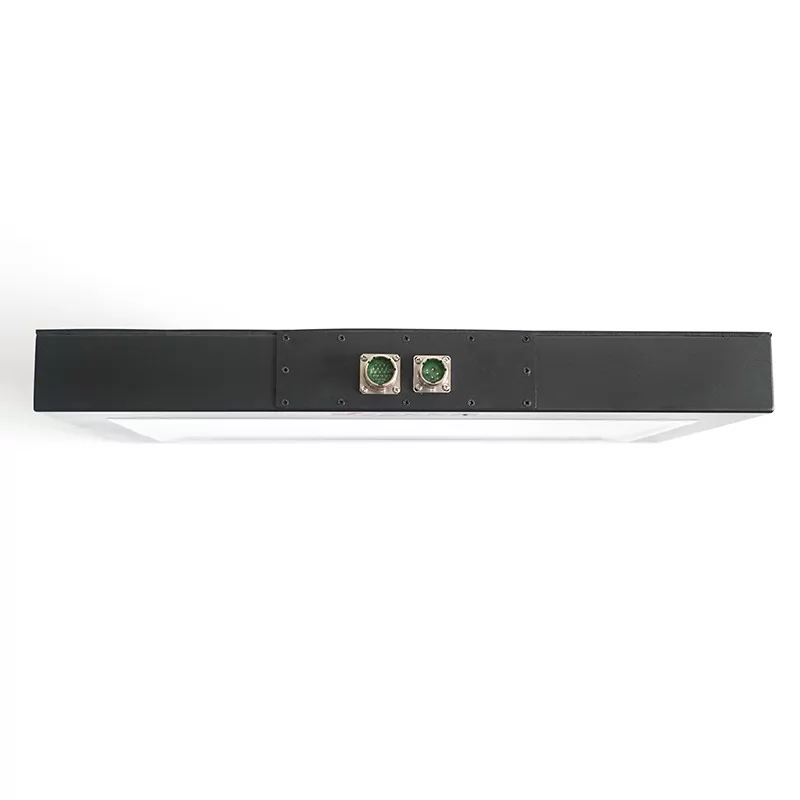

  5. Military grade connnector: DVI (D38999/20FD19PN) and DC power (D38999/20FC4PN).

  6. Wide range DC power input 9 to 36vdc with "Reverse Polarity Protection" .

  7. High performance motherboard, 7x24 continuous operation.


Specification

Model:SL215S
LCD panel
Panel size21.5"
Resolution1920*1080
Covered glassCovered with 3mm AF glass, anti-fogging, anti-fingerprint
Aspect ratio16:9
Support Color16.7M colors
Brightness (cd/m²)1000 nits, sunlight readable
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Signal Ports
DVI1x DVI  (D38999/20FD19PN)
VGAoptional
HDMIoptional
Audio in/outoptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OSWindows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power SupplyAC 100 - 240V, 50-60Hz
Working voltage9V-36V
Power consumption≤45W
Enclosure
Material304 Stainless steel
ColorBlack, Silver
VESA mounting100x100 mm
IP gradeFull IP67 waterproof
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityoperating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight11 kg
Gross weight12.7 kg
Product Dimension57x37.5x6.6cm
Packing size66*45*19 cm
AccessoriesWaterproof power adapter, power cord, DVI cable
Other
Mountingwall mounting brackets (optional)
desk stand holder (optional)
Warranty1 year warranty
CertificatesCE, FCC, RoHS


Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance


Military Connnector D38999 21.5" LCD Monitor 1000 nits

Military Connnector D38999 21.5" LCD Monitor 1000 nits

Request a Quote
">
For better quotation, pls include:
Size / Application / Quantity / Special requests
