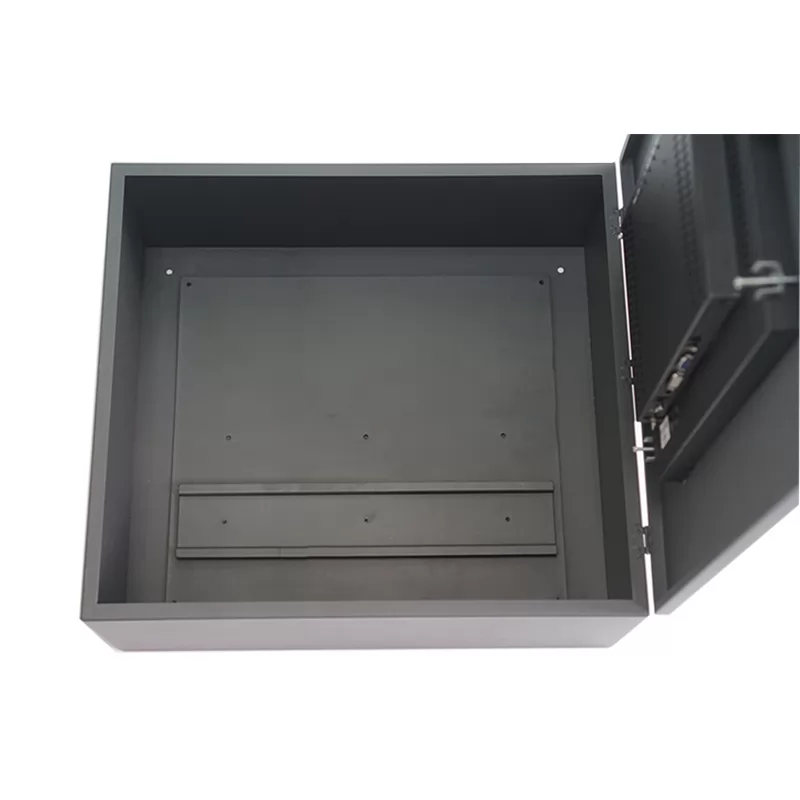

15 inch Touch Monitor With Cabinet Box

Quick Details:

Panel size15 inchResolution1024*768
Aspect ratio4:3InterfaceVGA+DVI+HDMI
Brightness400nitsTouch TypeCapacitive Touch
MaterialHigh strength steelPower SupplyAC 100-240V, DC 12V

Use the convenient 15 inch touch monitor as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system.  This 15 inch touch screen monitor offers the convenience of a touchscreen with the readability and functionality of a larger 15 inch panel screen size.  The 1500CSH boasts a native resolution of 1024x768, and has a contrast ratio of 1000:1.

Features of 15 inch Touch Monitor:

1. Robust and durable full metal case, shockproof, excellent heat dissipation.

2. Industrial LCD panel, wide viewing angle, high nits, true color.

3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.

4. High performance mainboard, 7x24 continuous operation.

5. Support wall mounting, embedded mounting, desk stand mouting etc.

15 inch Touch Monitor With Cabinet Box

Product Parameter:

Model: SL15
LCD panel
Panel size15"
Aspect ratio4:3
Support Color16.7M colors
Brightness (cd/m²)400+
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Surface Hardness7H
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Working Life>50 million times
Touch options(4 or 5 wires restive touch, IR touch optional)
Signal Ports
Audio in/outoptional
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP, Windows /7/8/10, Linux, Mac OS X, Android   ect.
Power Supply
External Power SupplyAC 100 - 240V, 50-60Hz
Working voltageDC 12V
Power consumption≤35W
MaterialHigh strength cold rolled steel
ColorBlack, white, Silver, color can be customized
VESA mounting75×75mm/100×100mm
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage: -20 to 80°C
Relative humidityoperating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight4.5kg
Gross weight5kg
Product Dimension38.63×31.1×5.5cm
Packing size46*44*18cm
AccessoriesPower adapter, VGA cable, USB touch cable, embedded screws, user manual,
warranty card
MaterialHigh strength cold rolled steel
Net weight8.5kg
Gross weight10kg
Product Dimension50.8×45.72×20.32cm
Packing size75*48*42cm
Accessorieslocker, removable plate
Mountingopen frame
embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty1 year warranty


Our 15 inch touch monitor are designed for applications such as but not limited to:

  1. Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo

  2. System Integration - Machinery Controls,Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home

  3. Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino

  4. Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View

  5. Broadcast & Production - Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production

If you are interested in our 15 inch touch monitor, please feel free to contact us.

15 inch Touch Monitor With Cabinet Box

The 15″ touch screen monitor has been used in projects such as POS systems, interactive display panels and retail interface displays. We can also provide customized monitor according to your requirements. Just contact us

15 inch Touch Monitor With Cabinet Box

Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
