Waterproof Protection
Full IP67 waterproof and dustproof certification
EETI waterproof touch solution with On/Off control to eliminate false touches from waves, rain, and splashing water
Sealed construction with removable panels for maintenance without compromising waterproof integrity
Protective screen cover included for additional protection during rough seas
Crystal Clear Visibility in Any Condition
Ultra-bright 1500 nits display - perfectly readable in direct sunlight
Automatic light sensing for optimal visibility day and night
Industrial-grade LCD panel with full 85° viewing angles from all directions
Optical bonding technology prevents internal condensation and fogging
Anti-glare surface treatment (chemical etching) reduces reflections on the water
Robust Touch Performance
10-point PCAP capacitive touchscreen with 2mm chemically strengthened tempered glass
7H surface hardness resists scratches from tools, hardware, and harsh handling
<5ms touch response time for precise navigation input
Works with wet hands and in rainy conditions
Touch on/off control prevents accidental inputs during cleaning or heavy weather
Marine-Grade Durability
Extreme temperature operation: -30°C to 80°C (-22°F to 176°F)
24/7 continuous operation capability
Fanless passive cooling - no moving parts to fail
Aluminum alloy construction with anti-UV and anti-discoloration treatment
Resistant to saltwater, humidity, and marine environment corrosion
Vibration and shock resistant to GB/T standards
Powerful Performance
RK3568 Quad-core processor (4× Cortex-A55, up to 1.8GHz)
Android 13 operating system for compatibility with latest marine apps
2GB/4GB/8GB RAM options
16GB/32GB/64GB/128GB storage options
4K H.265/H.264/VP9 video decoding
1TOPs NPU for AI-enhanced applications
Comprehensive Connectivity
Gigabit Ethernet with POE support for stable network connection
Wi-Fi 6 + Bluetooth 5 for wireless device connectivity
Optional 4G/GPS module for offshore navigation
IP67-rated connectors: 2× USB, 1× RJ45, 2× HDMI (input/output)
HDMI input allows connection to chartplotters and fishfinders
HDMI output enables secondary display capability
Maritime Application Compatibility
Seamlessly integrates with popular marine electronics and navigation systems:
Garmin ActiveCaptain - Access charts, waypoints, and vessel monitoring
Lowrance - View sonar data, GPS plotting, and fishing information
Raymarine - Display navigation data, radar, and marine instruments
Compatible with most marine navigation apps and chartplotting software
Flexible Installation
VESA 75/100 mounting options
Included waterproof mounting stand

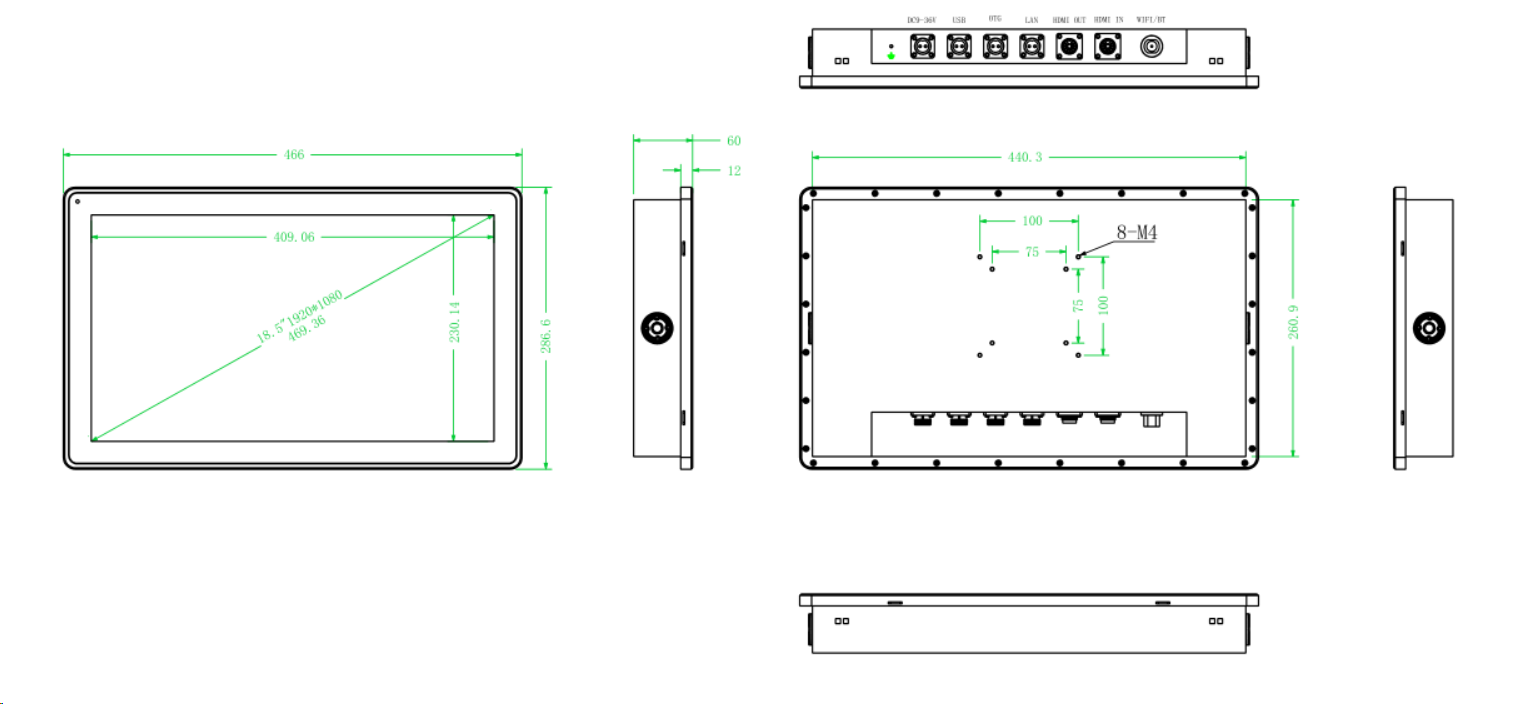

Compact dimensions: 462 × 303 × 61mm
Multiple mounting angles for optimal helm visibility
DC 9-36V wide voltage input with included waterproof power adapter
Technical Excellence
The tablet features optical bonding technology that eliminates the air gap between the LCD and cover glass, resulting in superior image clarity, enhanced durability, and elimination of internal condensation - critical for marine environments where temperature and humidity fluctuate dramatically.
The specialized EETI waterproof touch controller includes intelligent touch on/off functionality, addressing one of the biggest challenges in marine touchscreens: false touches caused by water spray, rain, or waves washing over the screen. This ensures reliable operation even during rough weather conditions.
Built for Professional Marine Use
Every component is selected for marine-grade reliability. The aluminum construction provides excellent heat dissipation while maintaining a sealed environment. The front frame and rear shell are sealed with marine-grade waterproof tape, and the design allows for maintenance access without compromising the waterproof seal.
The tablet operates reliably in temperatures from -30°C to 80°C, making it suitable for tropical fishing grounds to arctic waters. The fanless design eliminates failure points and reduces maintenance requirements for commercial fishing operations
Specification
| Model:SC700AW | |
| PC | |
| CPU | RK3568 4× Cortex‑A55 cores, up to 1.8 GHz, L2 cache 2 MB. |
| GPU | ARM G52-2EE; OpenGL ES1.1/2.0/3.0/3.1/3.2, Vulkan 1.1, OpenCL 2.1 |
| NPU | 1TOPs@INT8; Support INT8/INT16/FP16/BFP16; Support deep learning frameworks: TensorFlow, Caffe, Tflite, Pytorch, Onnx, Android NN, etc |
| Memory | 2G/4G /8G Optional |
| Storage | eMMC 16G/32G/64G/128G Optional |
| Vedio | Support 4k H.265/H.264/VP9 video decoder; 1080p@60fps H.264/H.265 video encoder |
| Display | Multiple display engine, max 3 screen support; HDMI 2.0; eDP 1.3; Dual MIPI-DSI, combo with single LVDS; 24bit RGB/BT1120; EBC interface |
| Video input | 8MB Pixel ISP with HDR&3DNR; 1*4lanes or 2*2lanes MIPI CSI-2 and DVP interface |
| Network | 1 port 10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE header |
| Operation System | Android 13 |
| Wireless Network Support | Wi-Fi 6 + Bluetooth 5 (optional 4G/GPS) |
| RTC Real Time Clock | YES |
| I/O | |
| USB | 2*IP67 USB (1*Host, 1*OTG) |
| LAN | 1*IP67 RJ45 |
| Video | 2*IP67 HDMI (1*Input, 1*Output) |
| Power | 1*IP67 DC |
| Other | 1*IP67 Antenna |
| LCD panel | |
| Panel size | 15.6" - 23.8" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1500 nits, sunlight readable |
| Brightness control | Automatic light sensing, OSD, (Optional dimming knob) |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Surface hardness | 7H |
| Touch response time | <5ms |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch options | 5 wire resistive touch, non touch, IR touch optional |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power consumption | 50W |
| Power adapter | AC 100 ~ 240V input and DC +12V@8A MAX output, 96W |
| Enclosure | |
| Material | Aluminum alloy panel, heat sink plate + galvanized cold-rolled plate back shell |
| Finish | Aluminum frame, aluminum heat sink: sandblasting oxidation, anti-UV and anti-discoloration treatment Rear shell: electrostatic powder spraying |
| Color | Black, other color optional |
| Mounting | VESA mount 75/100 |
| IP grade | Full IP68 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C Storage: -30 °C ~ 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Net weight | Net weight: 9.4 kg (18.5") Gross weight: 13.5 kg (18.5") |
| Product Dimension | 462 x 303 x 61 mm (18.5") |
| Packing info | 1pc/ctn 73 x 50 x 20 cm 13.5kg (18.5") |
| Accessories | Waterproof adapter, waterproof network cable, waterproof USB cable, waterproof HDMI cable, antenna stick |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
18.5" Marine Monitor
Sport Fishing Boats
Display live sonar and fishfinder data from Garmin, Lowrance, or Raymarine units
Run fishing apps like Fishidy, Navionics, or FishTrack simultaneously with chartplotters
Monitor multiple fishing zones with chart overlay
Access weather data and fishing forecasts in real-time
Log catch data and GPS coordinates of productive fishing spots
Share fishing information with crew via Wi-Fi connectivity
Charter Fishing Operations
Provide clients with clear display of fishing action and underwater sonar
Run booking and scheduling apps while on the water
Display educational content about local fish species
Stream underwater camera feeds for client entertainment
Process credit card payments dockside via secure connection
Maintain digital logbooks and reporting for regulations compliance
Commercial Fishing Vessels
24/7 reliable operation for extended fishing expeditions
Monitor multiple fishing gear deployments simultaneously
Track vessel position and fishing zones with GPS overlay
Weather monitoring and storm tracking for safety
Communicate with shore operations via 4G connectivity (optional)
Durable enough for harsh commercial fishing environment
Marine Navigation & Chartplotting
Helm Station Integration
Primary or secondary navigation display at helm
View electronic nautical charts from popular providers (Navionics, C-MAP, etc.)
Display AIS data for traffic awareness
Integration with autopilot systems
Tide and current information overlay
Navigate with ActiveCaptain for Garmin ecosystem users
Multi-Display Systems
HDMI input receives signal from dedicated chartplotter
HDMI output sends display to additional screens
Create comprehensive helm station with multiple information sources
Backup navigation display for safety redundancy
Synchronize with existing marine electronics
Boat Monitoring & Management
Vessel Systems Monitoring
Run marine monitoring apps for engine parameters
Battery bank monitoring and management
Tank level monitoring (fuel, water, waste)
Bilge pump status and alerts
NMEA 2000 network integration via compatible interfaces
Shore power and onboard systems control
Marina & Dockside Applications
Access marina Wi-Fi for trip planning
Download weather updates and navigation chart updates
Entertainment system for crew during docking
Video streaming from onboard cameras
Communication via VoIP or messaging apps
Offshore & Blue Water Sailing
Ocean Passage Making
Reliable operation in extreme offshore conditions
Weather routing and GRIB file display
Satellite communication integration (via optional 4G/GPS)
Long-range cruising navigation
Emergency communication backup device
Resistant to saltwater spray and constant sun exposure
Racing & Performance Sailing
Display tactical sailing data
Wind and current overlays on charts
Race committee communication apps
Performance analysis software
Video replay of race starts and maneuvers
Workboat & Commercial Maritime
Tugboats & Workboats
Rugged operation in industrial marine environment
Job tracking and documentation
Communication with port operations
Pilot chart and harbor chart display
24/7 continuous operation capability
Research Vessels
Data collection and logging applications
Integration with scientific instruments
Marine biology and oceanography research tools
Underwater camera and ROV feed display
Research documentation and photo/video recording
Law Enforcement & Coast Guard
Patrol operations mapping
Incident documentation and reporting
Real-time communication with command centers
Radar and sensor data display
Search and rescue coordination
Aquaculture & Marine Farming
Fish Farm Monitoring
Monitor underwater feeding cameras
Track environmental parameters (temperature, oxygen, salinity)
Feeding schedule management
Harvest planning and logistics
Remote farm monitoring via 4G (optional)
Marine Tourism & Water Sports
Dive Boats
Display dive site charts and information
Weather and sea condition monitoring
Customer entertainment and education
Underwater camera feeds from divers
GPS marking of dive sites
Water Sports Centers
Equipment rental management
Safety zone monitoring
Customer instruction videos
Weather monitoring for safe operations
Booking and schedule management
Across all these scenarios, industrial panel PCs and IP-rated touch monitors provide a stable and reliable display solution where consumer-grade screens cannot perform. Whether for waterproof environments, outdoor installations, embedded automation, or mobile systems, these industrial displays are designed to support continuous operation and demanding usage conditions.
