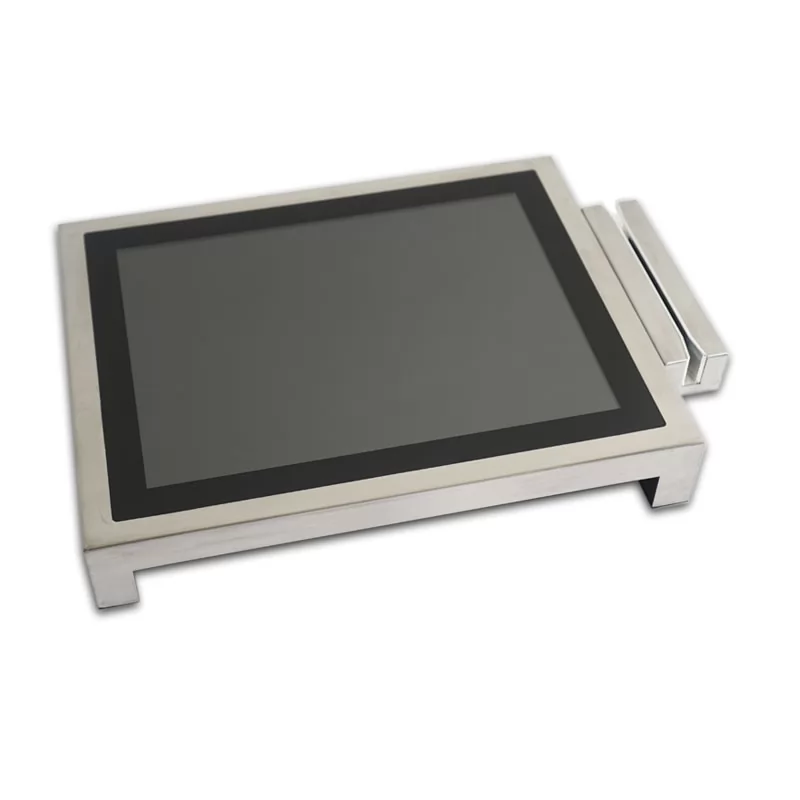

15 inch stainless steel all in one computer with IC card reader

Quick Details:

Panel size15"ProcessorIntel Core i7
Touch TypeCapacitiveMemory8 GB
Resolution1024*768Hard Drive512G SSD
MaterialStainless SteelNetworkWiFi/RJ45



Features

1. Stainless steel enclosure, true flat panel design, front panel IP66 waterproof.

2. Industrial LCD panel, wide viewing angle, high nits, true color.

3. Adopt high sensitive multi-points PCAP touch panel, covered with 2mm tempered glass for vandalproof.

4. High performance motherboard, 7x24 continuous operation.

5. Integrated with magnetic stripe card reader for customer identification

6. RS232 convert to RJ45 (10pins) ports


Specification


Model:SC15
PC
CPU Intel® Core I7-4500u, quad core, 1.8GHz, fanless
RAM: 8GB DDR3
Memory8G
Hard Drive Capacity512G SSD
Hard Drive OptionalSSD: 32G, 64G, 128GB, 256GB
HDD: 1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI
I/O Interface2xUSB 2.0, 2xUSB 3.0, 4xCOM RS232(convert to RJ45)
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Card Reader Magnetic stripe card for  customer identification
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size15"
Resolution1024*768
Aspect ratio4:3
Support Color16.7M colors
Brightness (cd/m²)400
Response time5ms
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type10 point capacitive touch
Touch InterfaceUSB   (RS232 optional)
Touch response time<8ms
Luminousness90%
Surface Hardness7H
Working Life >50 million times
Touch options( 5 wire resistive touch optional)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Power consumption≤45W
Enclosure
MaterialStainless steel
ColorSilver, Black, white, color can be customized
VESA mounting100x100mm
IP gradeFront panel IP66 waterproof
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight7.5kg
Gross weight9 kg
Product Dimension43.17x30.7x6.27cm
Packing size47x43x18cm
AccessoriesPower adapter, embedded screws, user manual, warranty card
Other
Mounting (options)wall mounting brackets (optional)
desk stand holder (optional)
Warranty1 year warranty
CertificateCE, FCC, RoHS


Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance
