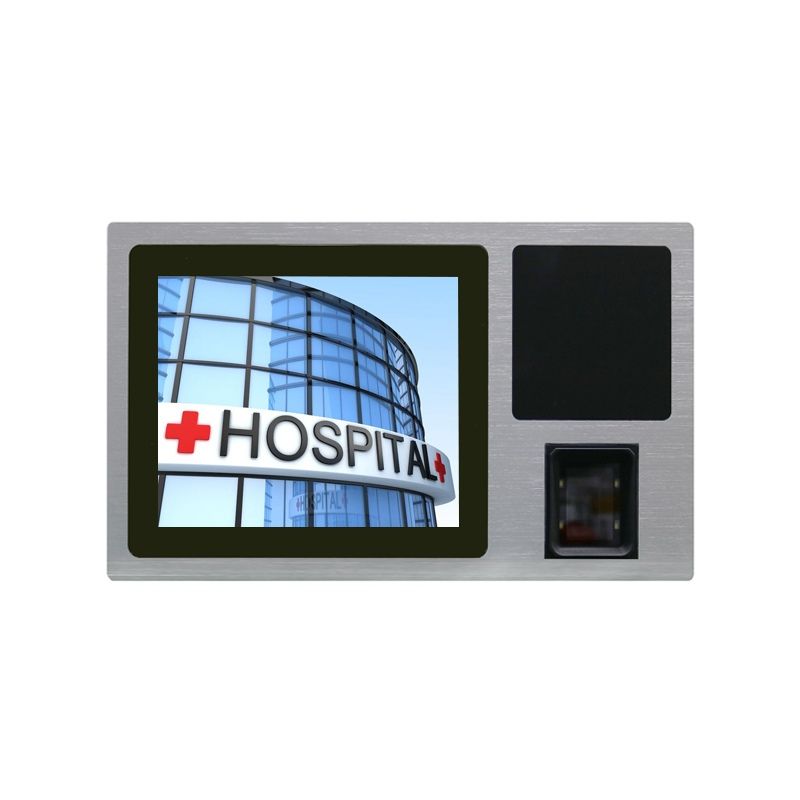

10.4 inch Touch Panel PC with RFID Reader and QR Scanner

Quick Details:

CPUIntel Celeron J4125RAM4GB
Hard Drive128GB SSDPanel size10.4"
Brightness400nitsTouch TypeCapacitive Touch
MaterialAluminum AlloyIP GradeFront IP65



Features:

1. Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment, front IP65 waterproof and dustproof.

2. Seamless design flat bezel, front panel IP65 waterproof.

3. Industrial LCD panel, wide viewing angle, 400 nits brightness.

4. 10 points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 6H surface hardness.

5. The PC is built with industrial-grade components, 7x24 continuous operation, wide operation temperature  -20 to 70ºC.

6. Built in RFID Reader(13.56MhzMifare)and QR code.  High compatibility, super reading ability.


Specification:

Model: SC104
PC
CPUIntel® J4125 Processor 4 core, 4 Threads, 2.0 GHz~2.7 GHz,TDP10W
ChipsetCemini lake
Memory4G DDR4 (8G,16G optional)
Hard Drive Capacity128G SSD
Hard Drive OptionalSSD: 64G, 256GB
HDD: 500GB, 1TB
GraphicsIntel® UHD Graphics 600
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1x1*Realtek RTL8106E Ethernet controller
Wireless NetworkWIFI,Intel®WIFI Link 5300
Expansion slot1*MiniPCIe,Bluetooth /4G Extension module

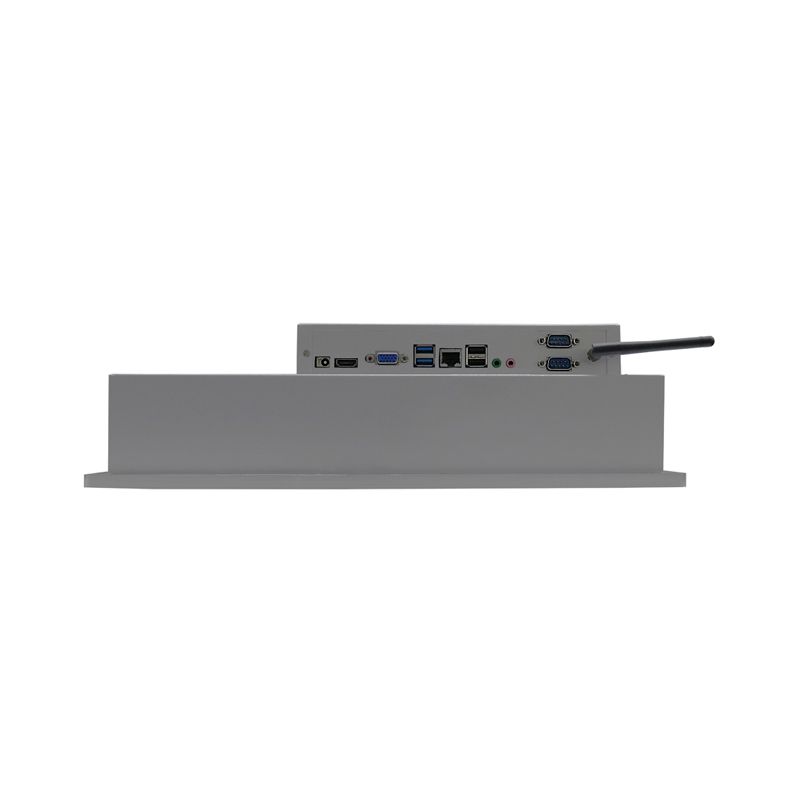

I/O Interface2xUSB 3.0, 2xUSB 2.0, 1xCOM RS232
1xVGA/HDMI/RJ45/3.5mm Line-out/3.5mm Line-in/12V DC jack/ Power on/off button
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Screen diagonal10.4"
Display active area211.2(H) x 158.4(V) mm
Resolution1024*768
Aspect ratio4:3
Brightness (cd/m²)400 nits
Brightness controlPWM Brightness control
Contrast ratio900:1
View angle85°/85°/85°/85° (R/L/U/D)
Support Color16.7M colors
BacklightWLED, 50K hours
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Surface Hardness7H
Surface treatmentN/A
Luminousness≥90%
Touch controller ICWeida
Available touch driversWindows, Linux, Android, Mac
Touch bondingAir bonding
Power Supply
Working voltageDC 12V-36V
Power consumption20W
Power adapterAC 100 ~ 240V input and DC +12V@5A MAX output, 60W
Enclosure
MaterialAluminium alloy bezel+ Zinc Plating cold rolled steel rear housing
FinishFront bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment
Rear housing: powder coated
ColorBlack

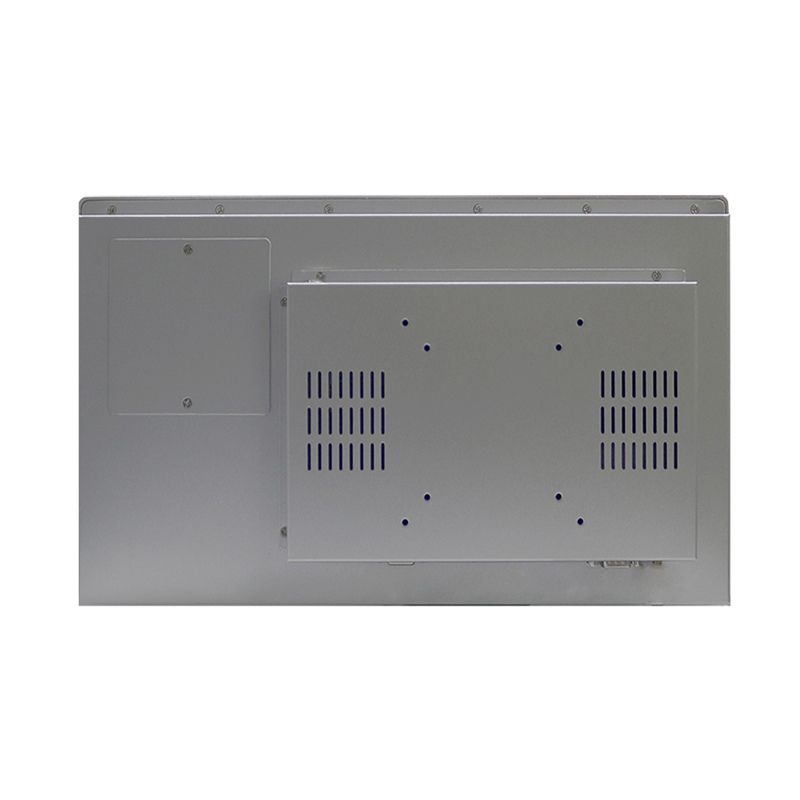

VESA mountingVESA mount 75x75mm,  Panel mount
IP gradeFront panel IP65 waterproof
Cooling systemPassive - Fanless
Operating Environment
Temperature RangeOperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityUp to 90% at all relevant temperatures, non-condensing
VibrationGB/T 2423.10-2019
ShockGB2423.5
EMCClass B
Packing Details
Product weightNet weight 3.12kg   Gross weight 4.42kg
Product Dimension370×225×55mm
Packing info1pcs/ctn 52×16×39.5cm 5.01kg, 2pcs/ctn  52×30×39.5cm 9.5kg;
AccessoriesPower adapter, power cord, embedded mounting screws, wifi antenna
Other
RFID Reader13.56Mhz Mifare
Barcode scanner1-dimensional bar code,2-dimensional bar code, PDF417, DataMatrix(ECC200)
Warranty1 Year Warranty
CertificateCE, FCC, RoHS



Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance
