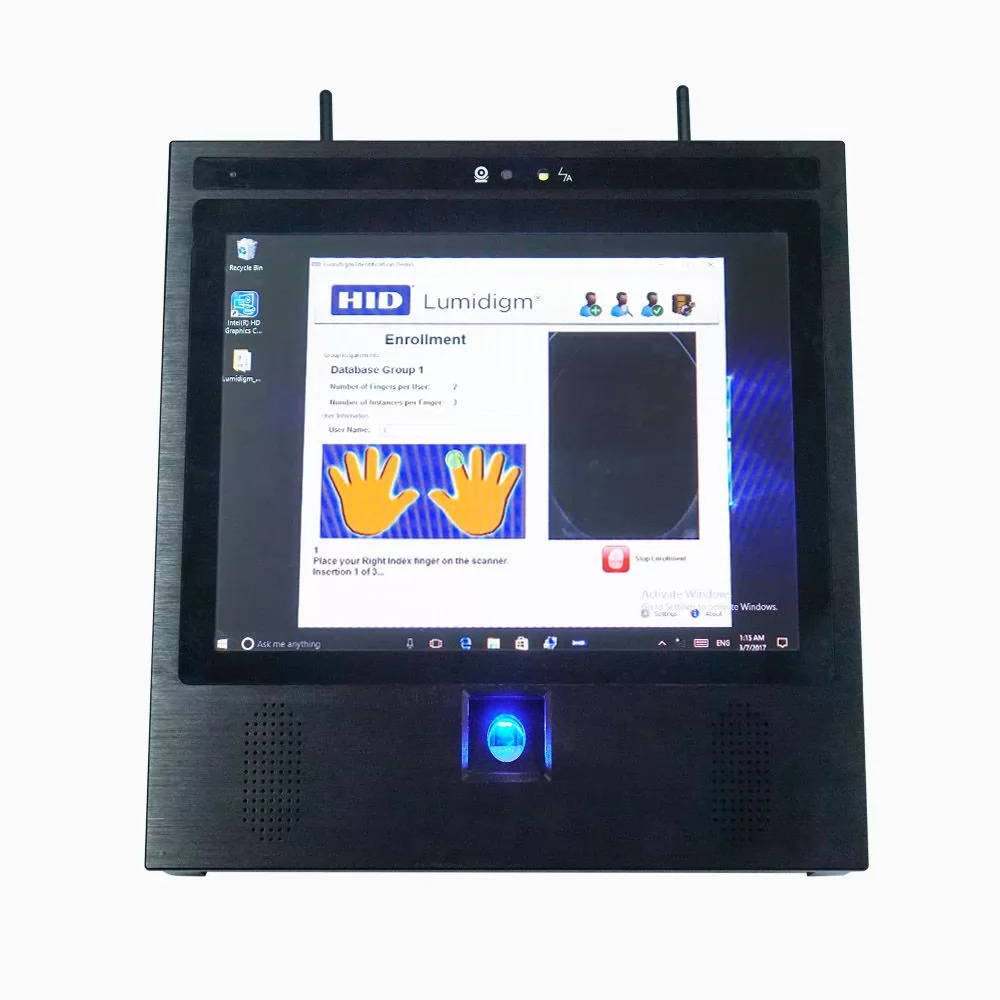

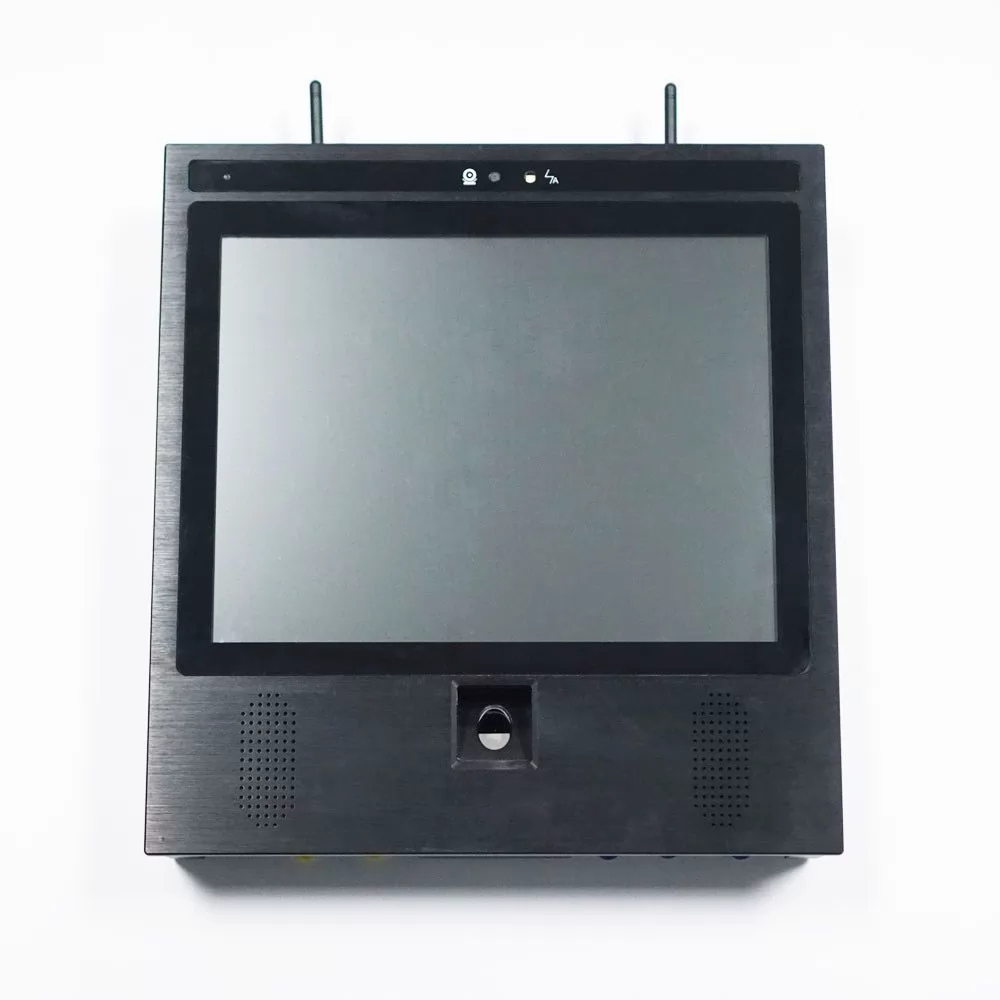

15 inch Touch Panel PC with Fingerprint Reader

Quick Details:

CPUIntel Celeron J1900RAM4G
Hard Drive128GPanel size15"
Brightness1000nitsTouch TypeCapacitive Touch
MaterialAluminum AlloyIP GradeFull IP65



Features:

1. Full sealed and fanless design, IP65 waterproof, used as a Time and Attendance device in factory.

2. Industrial LCD panel, 1000cd/m² sunlight readable, auto adjust brightness.

3. High sensitive 10-points PCAP touch panel, cover with 3mm tempered glass, vandalproof.

4. High performance motherboard, 7x24 continuous operation.

5. 4G/3G + WIFI + 5 million pixels webcam + Fingerprint Reader.

6. Built-in Battery, 9000mah, keep the PC running for 3 hours in case power cut.

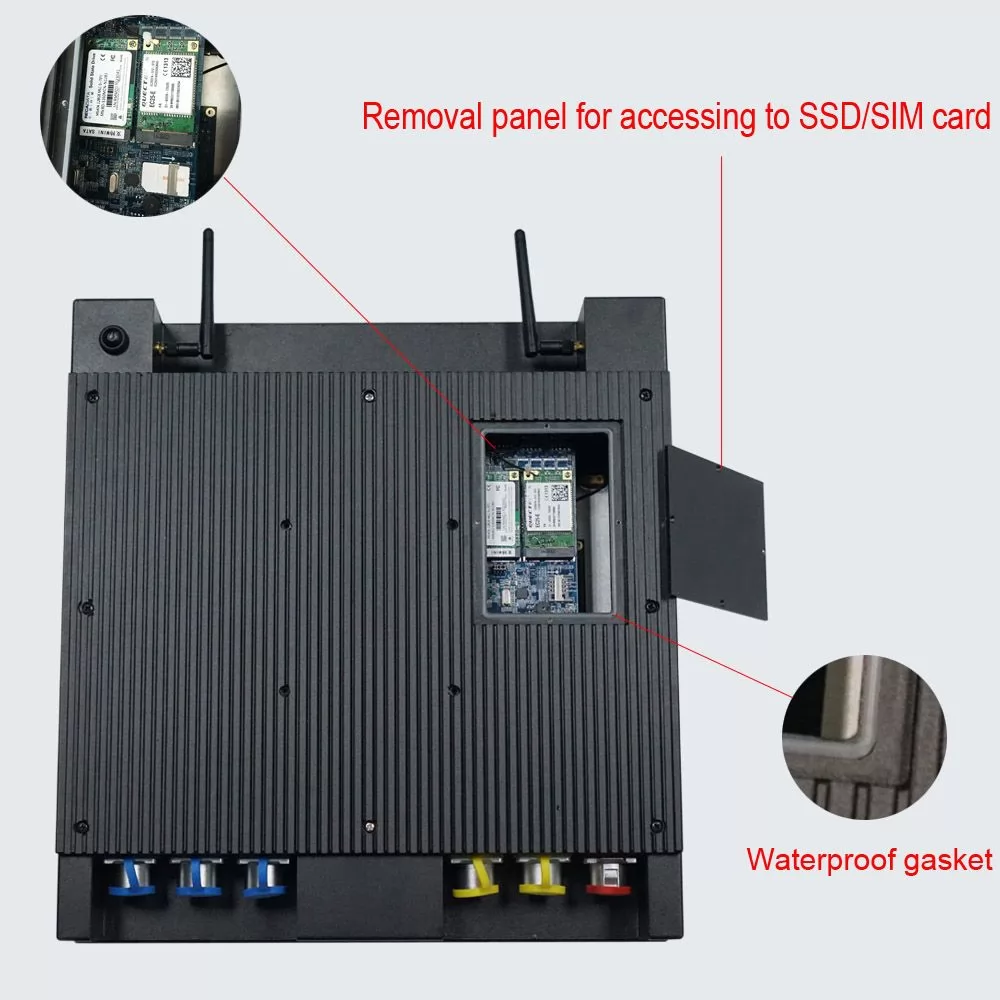

7. Access to SSD/ Sim Card by removable panel.


Specification:

PC
CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
ChipsetIntel Valley View SSA-CUnit
Memory4G DDR3
Hard Drive Capacity128G SSD
Hard Drive OptionalSSD: 16GB, 32GB, 64GB, 128GB, 160GB
HDD: 160GB, 320GB, 500GB, 1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Ethernet2×Realtek RTL 8111E Gigabit Ethernet controller
Wireless4G/3G + WIFI
Webcam5 million pixels webcam
Fingerprint ReaderLumidigm V310 (optional )
Built-in Battery9000mah, keep the PC running for 3 hours in case power cut, uninterruptible power supply

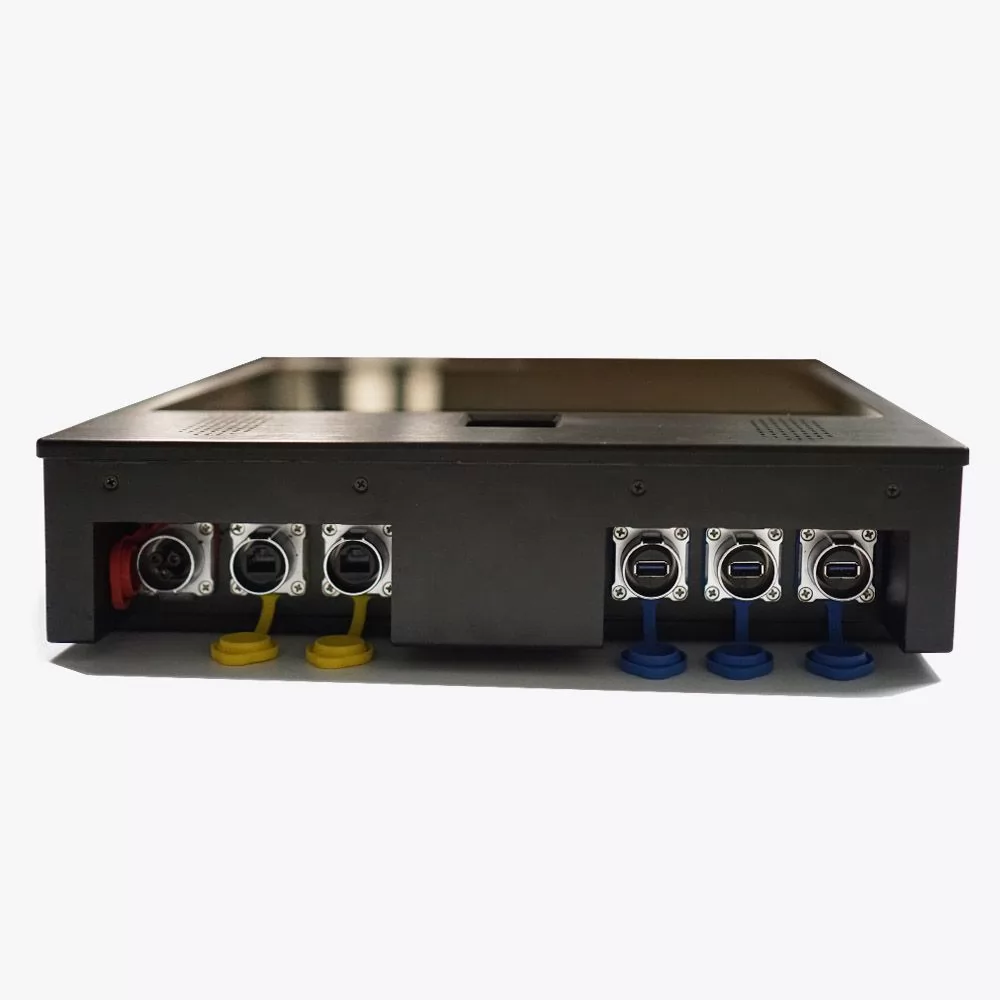

I/O Interface1×Power AC, 2×LAN, 3×USB
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size15"
Resolution1024*768
Aspect ratio4:3
Support Color16.7M colors
Brightness1000 cd/m², with light sensor, auto adjust brightness
Response time5ms
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type10-points Project Capacitive Touch Panel
Tempered glass cover3mm
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Working life>50million times
Touch options( 4/5 wires resistive touch, IR , SAW touch optional)
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption≤45W
Enclosure
MaterialAluminum Alloy front bezel + High strength cold rolled steel back case
ColorWhite, Black, Silver, color can be customized
VESA mounting100×100mm
IP-gradeFull IP65
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage: -20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight10kg
Gross weight14kg
Product Dimension37×39×9 cm
Packing size58×29×52 cm
AccessoriesPower adapter, embedded screws
Other
Warranty1 year warranty

Available Sizes:

SizeResolutionAspect ratioTouch type
10.1"1280*80016:10capacitive/resistance
12.1"1024*7684:3capacitive/resistance
15"1024*7684:3capacitive/resistance
15.6"1920*108016:9capacitive/resistance
17"1280*10245:4capacitive/resistance
19"1280*10245:4capacitive/resistance
21.5"1920*108016:9capacitive/resistance
22"1920*108016:9capacitive/resistance
24"1920*108016:9capacitive/resistance
27"1920*108016:9capacitive/resistance
