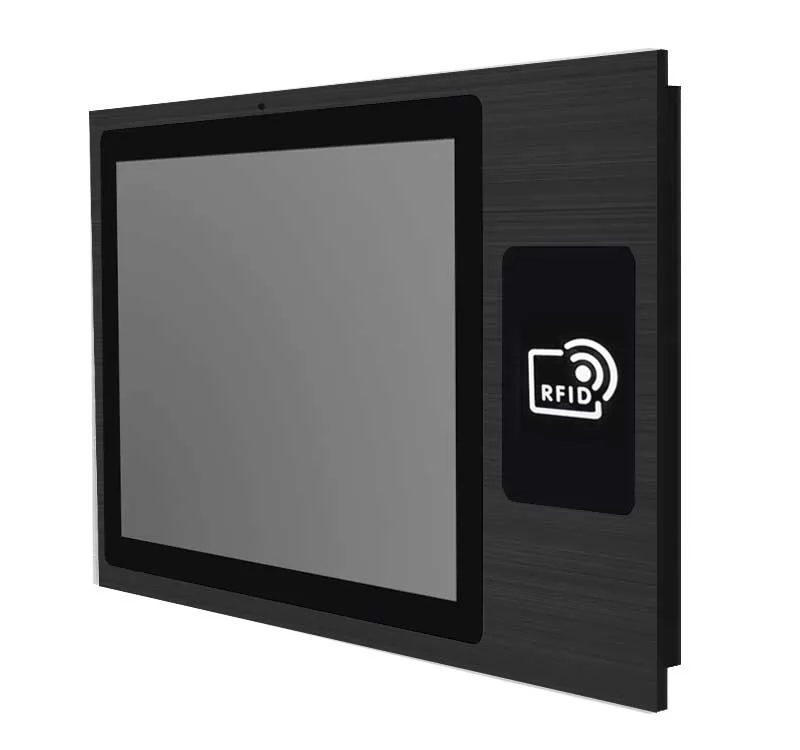

Features:
1. Robust and durable aluminium alloy enclosure, front panel IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10 point capacitive touch screen, high precision, durable, anti-interference.
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, embedded and rackmount etc. apply to a wide range of industrial application.
6. With wifi, bluetooth, 5 mega-pixel webcam and RFID reader.
Specification:
| Model: SC17A | |
| PC | |
| CPU | RK3188, Cortex-A9, quad core, 1.6GHz |
| Memory | 2G, (Max. 4G) |
| Storage | eMMC 8G, (Max. 16G) |
| Decoding Resolution | Support maximum 2048*1536 |
| Operation System | Android 4.4.2 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | RJ45, WIFI, 3G, 4G, TD-LTE (optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc. |
| Audio Format | MP3, WMA, AAC, etc. |
| RTC Real Time Clock | YES |
| I/O Interfaces | |
| USB | 2×USB (up to 5) |
| COM | 2×COM |
| LAN | 1×RJ45, 10M/100M adaptive ethernet |
| HDMI | 1×HDMI, support 1080p |
| DC | 1×DC |
| Card Slot | 1×TF |
| LCD panel | |
| Panel size | 17" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 400 cd/m² |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Appearance | Flat panel |
| Material | Aluminum alloy |
| Color | Black, white, Silver, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front IP65 |
| Operating Environment | |
| Working temperature | -10°C to 55°C |
| Relative humidity | <85% |
| Vibration resistance | 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration, 11ms period |
| Packing Details | |
| Net weight | 5.5 kg |
| Gross weight | 6 kg |
| Product Dimension | TBD |
| Packing size | 55×47×18 cm |
| Accessories | Power adapter, embedded screws, warranty card, user manual |
| Other | |
| Customization | RFID Reader |
| Front 5 mega-pixel webcam | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Customization | 3G, 4G, reader etc. optioanal |
| Warranty | 1 year warranty |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
