Features:
1. Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , front IP67 waterproof and dustproof.
2. Industrial LCD panel, full view angle, 1000nits sunlight readable.
3. 10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.
4. EETI waterproof solution, the touch function can work well with drop water on the screen.
5.The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F).
Specification:
| Model: SC101A | |
| PC | |
| CPU | RK3568 quad-core 64-bit Cortex-A55 Base frequency 2.0Ghz Other CPU Optional |
| Memory | EMMC 2G (4G/8G Optional) |
| Storage | 16GB EMMC (32G/64G/128G Optional) |
| Graphics | ARM G52 2EE Suports OpenGL ES 1.1/2.0/3.2、OpenCL 2.0，Vulkan 1.1 |
| Audio | Support left and right channel output, built-in dual 8Ω/2W power amplifier |
| Display | Supports EDP/HDMI2.0/LVDS/ Vby1 |
| Multimedia | Supports 4K 60fps H.265/H.264/VP9 1080P 100fps H.265/H.264 |
| Network | 1xRJ45, 100Madaptive ethernet |
| Wireless | WIFI + Bluetooth 4.0, 4G Optional |
| RTC | Support |
| Preinstalled OS | Linux debian10 (Android 11 Optional) |

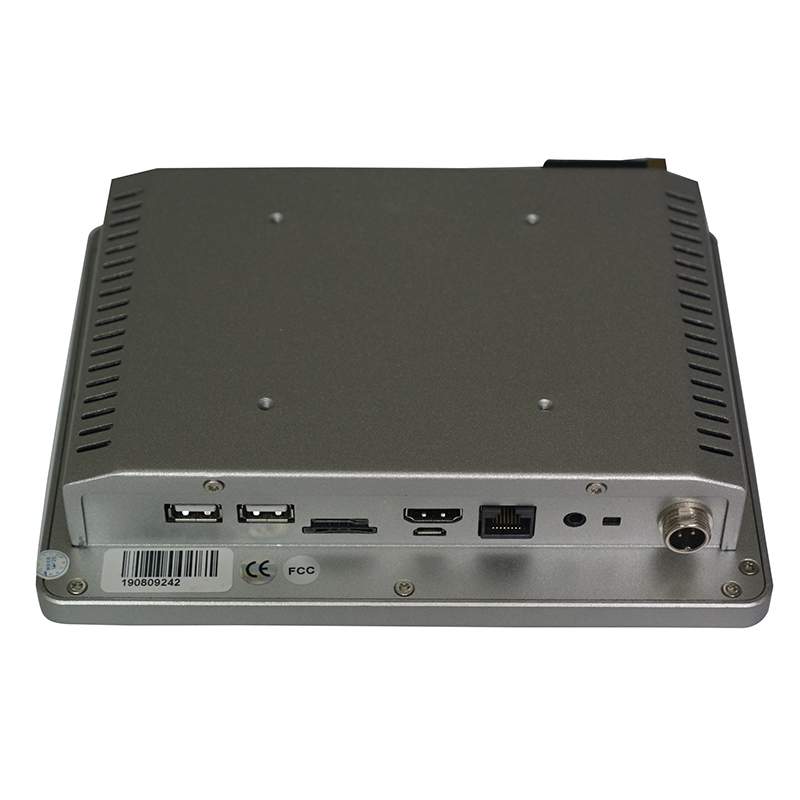

| I/O Interfaces | |
| USB | 2x USB (1x HOST, 1x OTG) |

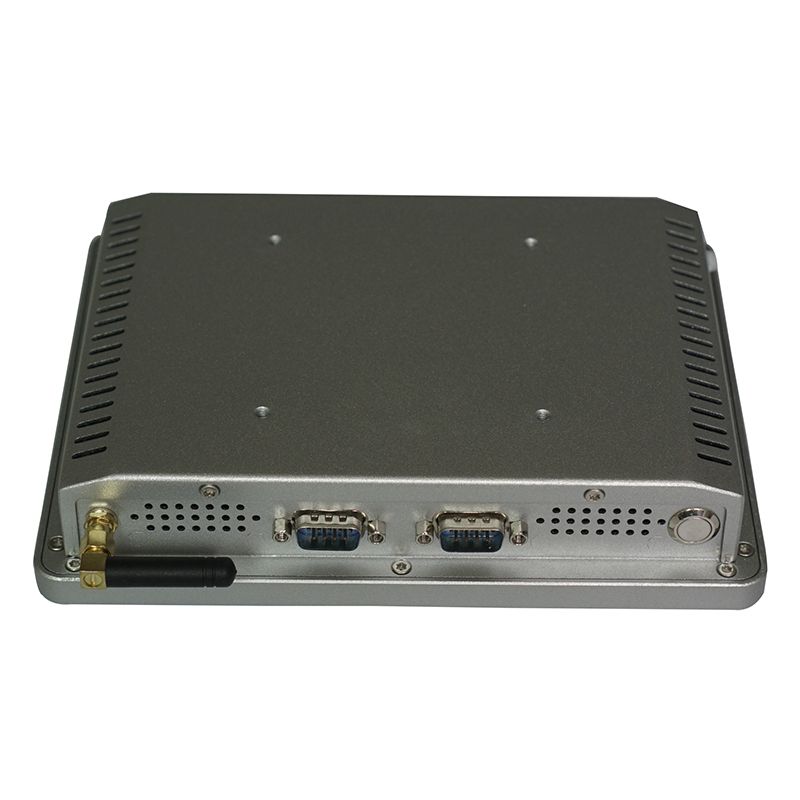

| COM | 2x RS232 |
| LAN | 1x RJ45 |
| Video Outputs | 1x HDMI |
| Audio | 1x 3.5mm Line-out, 2*8Ω2W Speaker |
| Power input | 1x 12V DC jack, 1× 3-pins terminal block connector (9-36V) |
| Other | 1x TF Card slot, 1x SIM Card slot |
| LCD panel | |
| Screen diagonal | 10.1" |
| Display active area | 217(W)×135.6(H) mm / 8.54 in × 5.34 in |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | PWM software for adjusting |
| Contrast ratio | 900:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Touch response time | <2ms |
| Touch bonding | Air Bonding (Optical bonding Optional) |
| Touch options | 5 wire resistive touch, non touch, IR touch optional |
| Power Supply | |
| Working voltage | DC 9~36V |
| Power consumption | 10W |
| Power adapter | AC 100 ~ 240V input and DC [email protected] MAX output, 40W |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black, Silver, White others Optional |

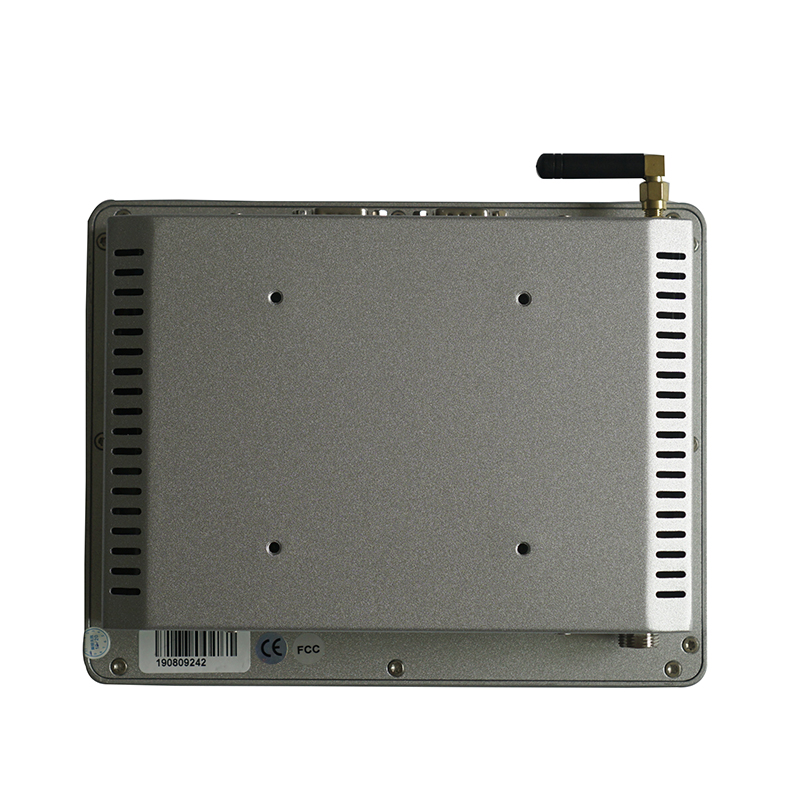

| Mounting | VESA mount 100*100mm, Panel mount |
| IP rating | Front panel IP67 |
| Cooling system | Passive - Fanless |
| Design | 3mm bezel design(Open frame design optional) |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 2.5kg |
| Product dimension | 270.2×188.2×44mm |
| Packing info | 1pcs/ctn 36×32×11cm 3.5kg 5pcs/ctn 53×36×33cm 18kg |

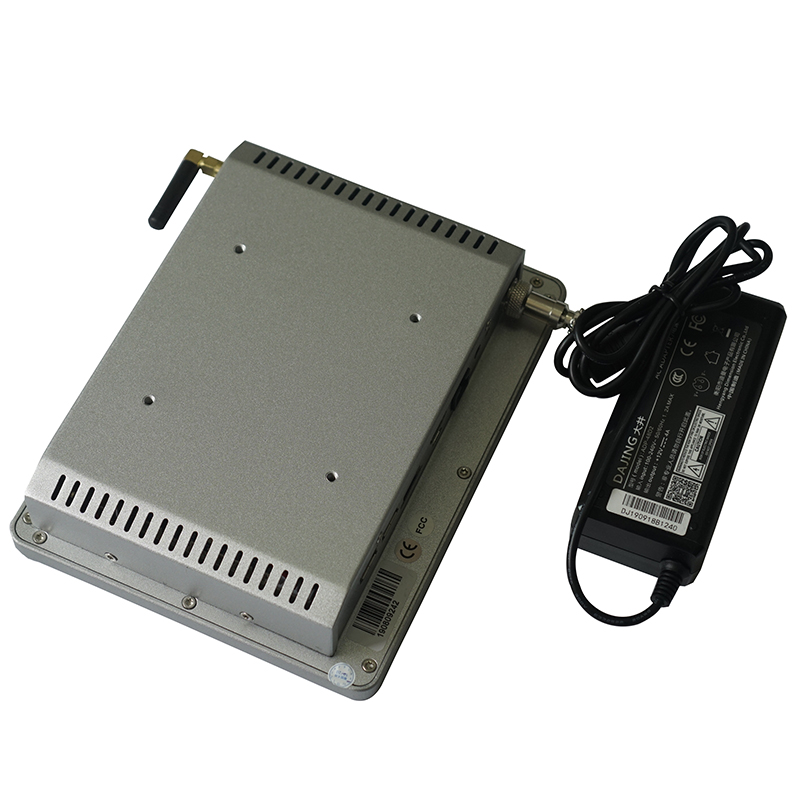

| Accessories | Power adapter, power cord, Phoenix terminal, embedded screws |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |

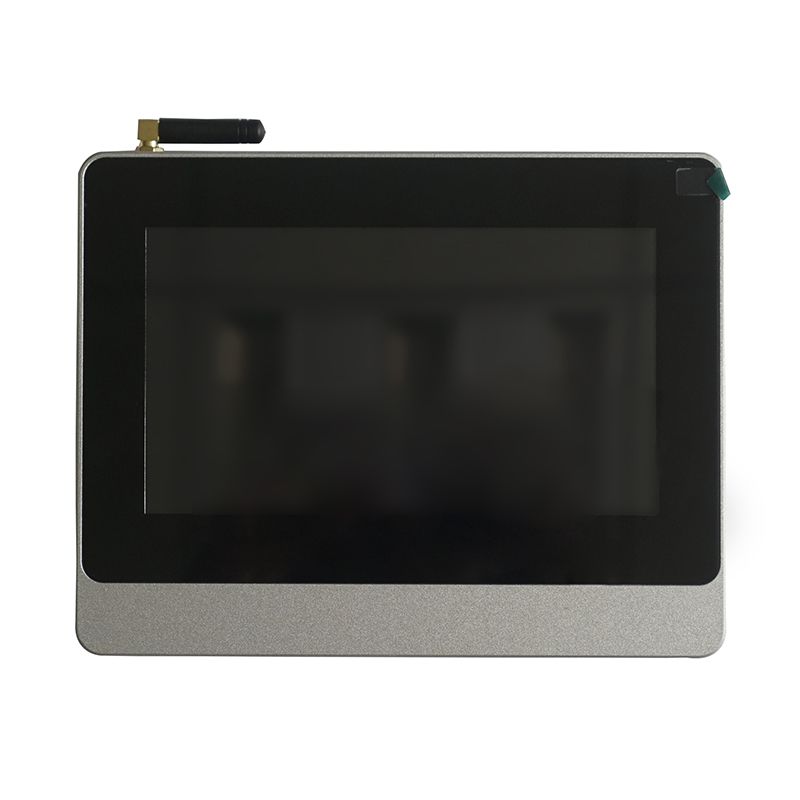

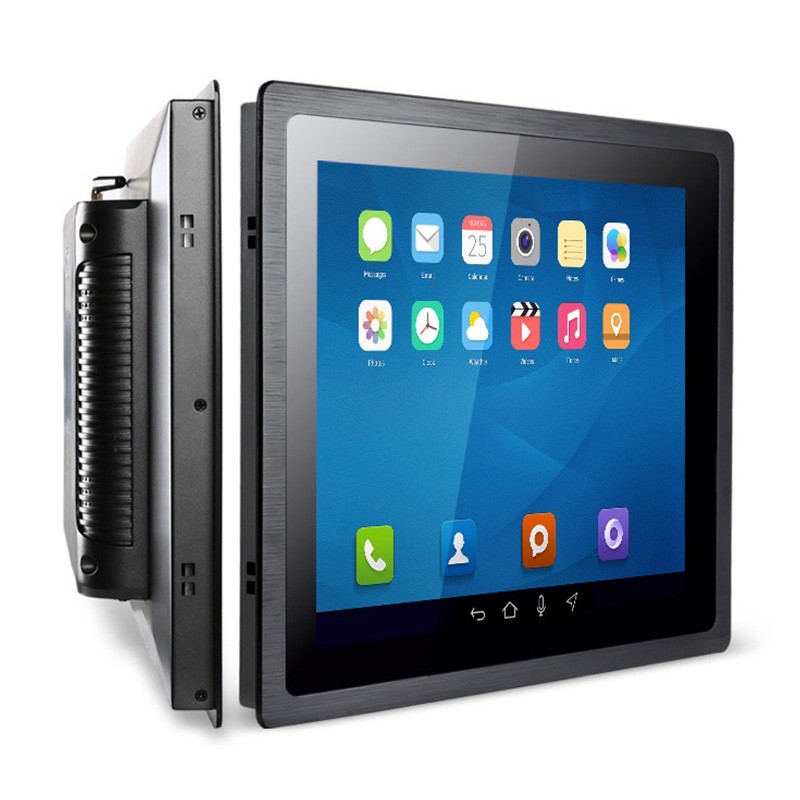

10.1" Android Panel PC
