  • 32 inch 1000nits outdoor touch panel pc with 3mm AF glass
  • 32 inch 1000nits outdoor touch panel pc with 3mm AF glass
  • 32 inch 1000nits outdoor touch panel pc with 3mm AF glass
  • 32 inch 1000nits outdoor touch panel pc with 3mm AF glass

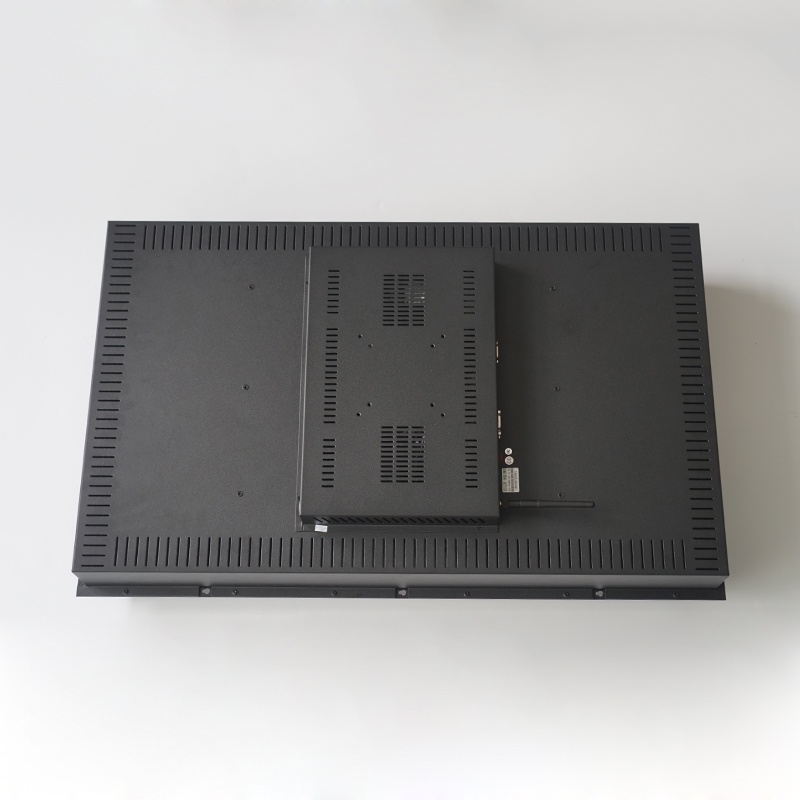

32 inch 1000nits outdoor touch panel pc with 3mm AF glass

Quick Details:

CPUIntel Celeron J1900RAM4GB
Hard Drive64G SSDPanel size32"
Brightness1000nitsView angle89/89/89/89
MaterialHigh strong steelIP-GradeFront IP65



Features:


1.Robust all-metal enclosure, shockproof  and durable, excellent heat dissipation.
2. Front panel IP65 waterproof.
3. Industrial LCD panel,  full viewing angle,  high nits and true color.
4. Covered with 3mm AF glass, anti-fogging, anti-fingerprint.
5. High performance motherboard, 7x24 continuous operation.
6. Brightness is1000 nits, sunlight readable.


 <

Model: SC32-H
PC
CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
ChipsetIntel ValleyView SSA-CUnit
Memory4G DDR3 (2G, 8G optional)
Hard Drive Capacity64G SSD
Hard Drive OptionalSSD: 32G, 128GB, 256GB
HDD: 500GB, 1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI
I/O Interface2xUSB 2.0, 2xUSB 3.0, 2xCOM RS232
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size31.5"
Resolution1920*1080
Aspect ratio16:9
Support Color16.7M colors
Brightness (cd/m²)1000+cd/m², sunlight readable
Response time5ms
Contrast ratio1000:1
View angle89°/89°/89°/89° (R/L/U/D)
Power Supply
External Power SupplyAC 110-240V
Working voltageDC 12V
Power consumption≤45W
Enclosure
MaterialHigh strong rolled steel
ColorSilver, Black, white, color can be customized
VESA mounting75x75mm/100x100mm
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -10 to 55°C, storage: -20 to 60°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight19.6KG
Gross weight21KG
Product Dimension78.422x48.42x11.3cm
Packing size90x61x27cm
AccessoriesPower cord
Other
Mounting Open frame edgings
Mounting (options)1) provide wall bracket for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
CertificateCE, FCC, RoHS



None

None
Request a Quote
For better quotation, pls include:
Size / Application / Quantity / Special requests
