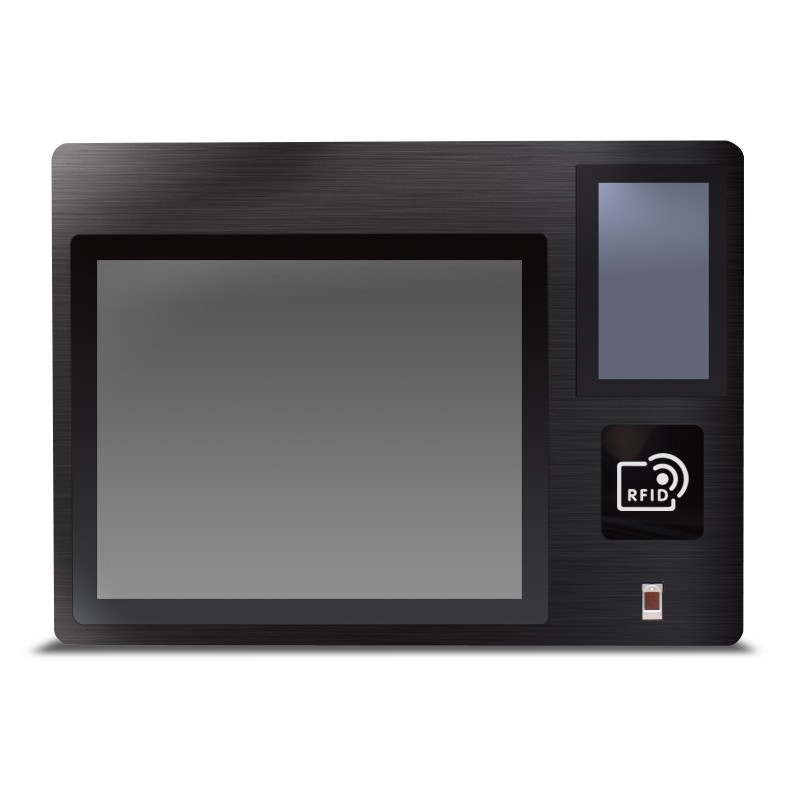

Features:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, embedded mounting, desk stand mouting etc.
6. Dual os windows android pc.
Specification:
| Model:SC17 | |
| Windows PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3, (Max. 8G) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2×USB 2.0, 2×USB 3.0, 2 x COM RS232 |
| 1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 17" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Android PC | |
| CPU | RK3188, Cortex-A9, quad core, 1.6GHz |
| Memory | 2G, (Max. 4G) |
| Storage | eMMC 8G, (Max. 16G) |
| Decoding Resolution | Support maximum 2048*1536 |
| Operation System | Android 4.4.2 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | RJ45, WIFI, (3G, 4G, TD-LTE optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc. |
| Audio Format | MP3, WMA, AAC, etc. |
| RTC Real Time Clock | YES |
| I/O Interfaces | |
| USB | 2×USB ( up to 5 ) |
| COM | 1×COM RS232 |
| LAN | 1×RJ45, 10M/100M adaptive ethernet |
| DC | 1×DC |
| Card Slot | 1×TF |
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness | 400 cd/m² |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 7.5kg |
| Gross weight | 8.5kg |
| Product Dimension | TBD |
| Packing size | 74×45×18 cm |
| Accessories | Power adapter, embedded screws, user manual, warranty card |
| Other | |
| built-in modules | RFID |
| Fingerprint Reader | |
| Mounting (options) | open frame |
| embedded mounting screws | |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
