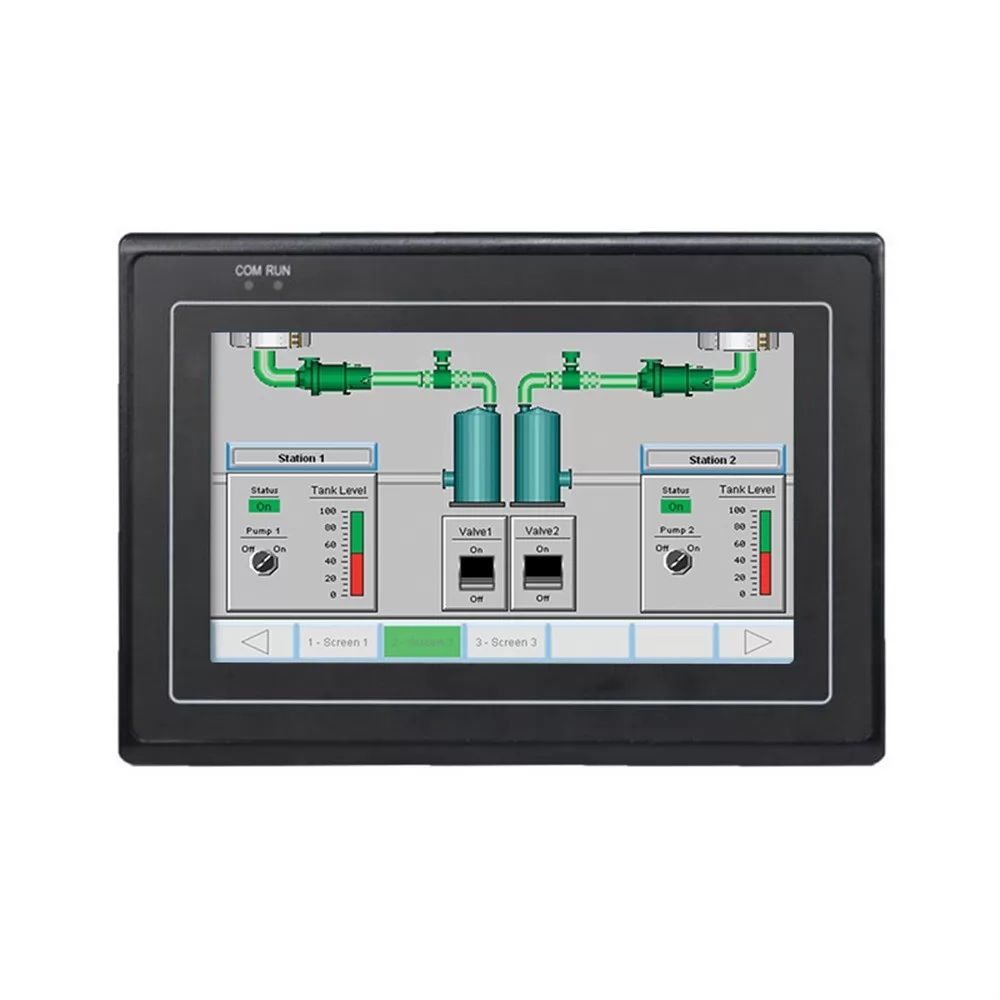

7" WinCE Industrial Panel 256MB Flash plc hmi touch screen

Quick Details:

Panel size7"Brightness400 nits
TouchResistiveInterfaceUSB*2, COM*4, RJ45
Resolution800*480Memory512MB DDR3
CPUCortex-A8Memory256MB NandFlash

Feature
1. 4 channel isolated 3-wire RS-232 serial port(COM1, COM2, COM3, COM4), 2 channel (COM1, COM2) multiplex as RS-485 bus.

2. 1 channel isolated CAN bus. (optional)

3. 1 channel WIFI module inside. (optional)

4. 1 channel USB device interface,support ActiveSync connect to PC to exchange data and debug application.

5. 2 channel USB Host interface, support mouse, keyboard, U disk ,etc.

6. 1 channel 100M Ethernet interface.

7. 1 channel SD/MMC slot,support SD/MMC card.

8. 1 channel 3.5mm audio output interface.

9. 1 channel DC12V~24V, industrial power solution, higher reliability.


Specification

Product model
SC07H
CPU
Cortex -A8 architecture,frequency 1.0GHZ
Memory
512MB DDR3
Flash
256MB NandFlash
Size
7 inch
Resolution
800*480, Wide-temperature type, 64K colors or 260K colors
LCD backlight
lifetime > 25000 hours
Touch screen
4-wire resistance touch screen (driver inside)

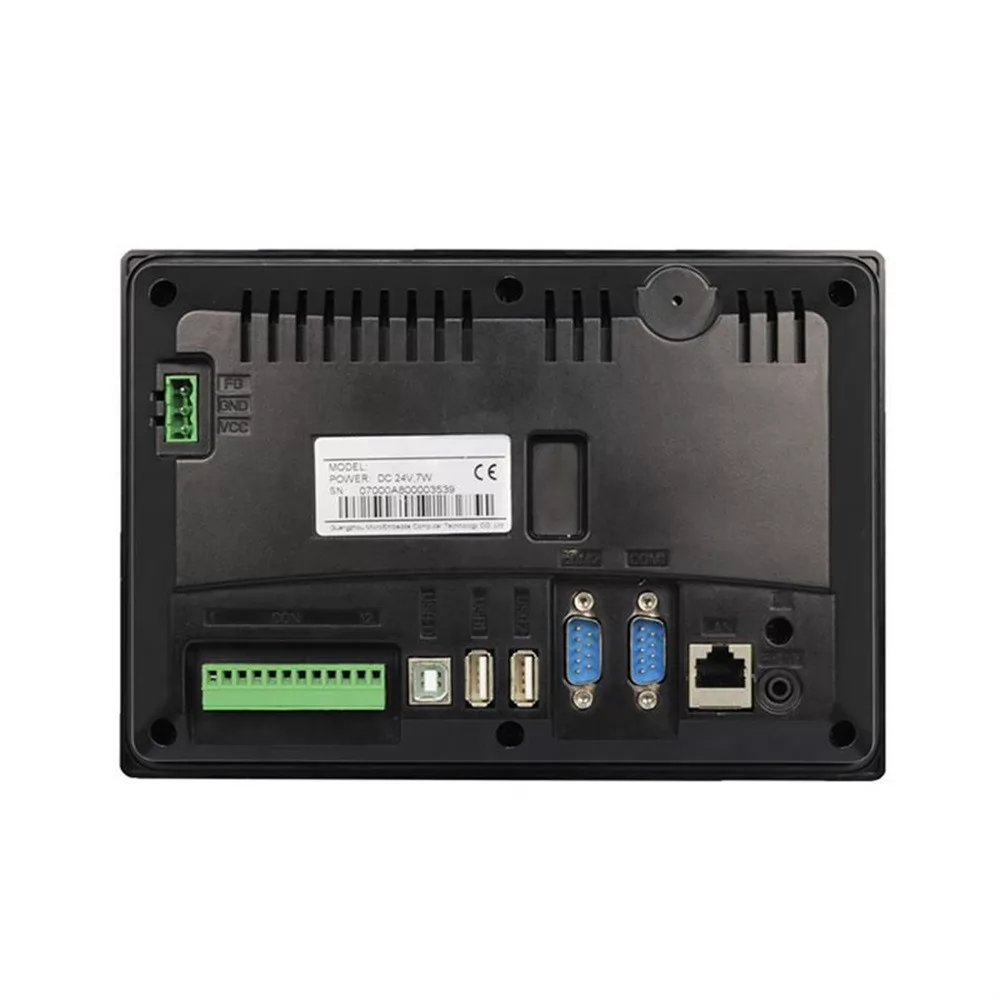

Hardware interface
4 channel isolated 3-wire RS-232 serial port(COM1, COM2, COM3, COM4), 2 channel(COM1, COM2) multiplex as RS-485 bus.
1 channel isolated CAN bus.(optional)
1 channel WIFI module inside.(optional)
1 channel USB device interface, support ActiveSync connect to PC to exchange data and debug application.
2 channel USB Host interface, support mouse, keyboard, U disk ,etc.
1 channel 100M Ethernet interface.
1 channel SD/MMC slot, support SD/MMC card.
1 channel 3.5mm audio output interface.
1 channel DC12V~24V, industrial power solution, higher reliability.
Attention
When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS
Windows CE 6.0 R3
Defend degree
IP65 (front panel)
Working environment
power
12V~24V DC ,600mA
working temperature
-20~55℃
storage temperature
-20~80℃
working humidity
10~90%RH
shell structure
plastic

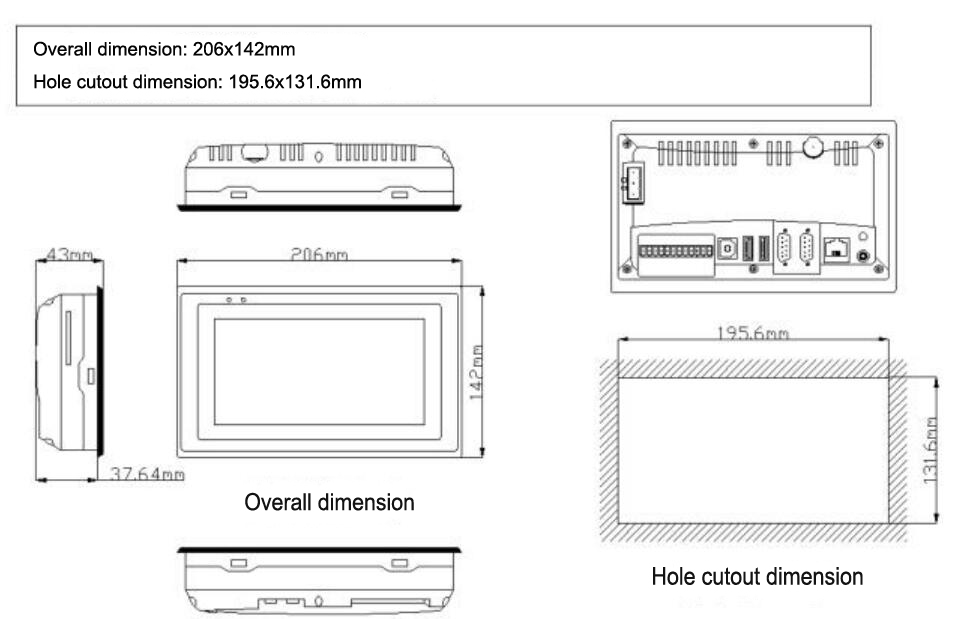

panel size
206*142(mm)
trepanning size
195.6*131.6(mm)
Application area
industrial control,detection device,instruments and meters,security monitoring , medical apparatus and instruments, intelligent terminals embedded high-end application.
Support CAN bus network deployment.
Software support
Flash power-down protection function.
IDE: Visual Studio 2005/2008.net (.net 2.0 Compact), EVC++ , Labview development.
Easy change the user-defined splash screen.
Support display screen rotation (degree: 0/90/180/270)




7" WinCE Industrial Panel 256MB Flash plc hmi touch screen

7" WinCE Industrial Panel 256MB Flash plc hmi touch screen

Request a Quote
">
For better quotation, pls include:
Size / Application / Quantity / Special requests
