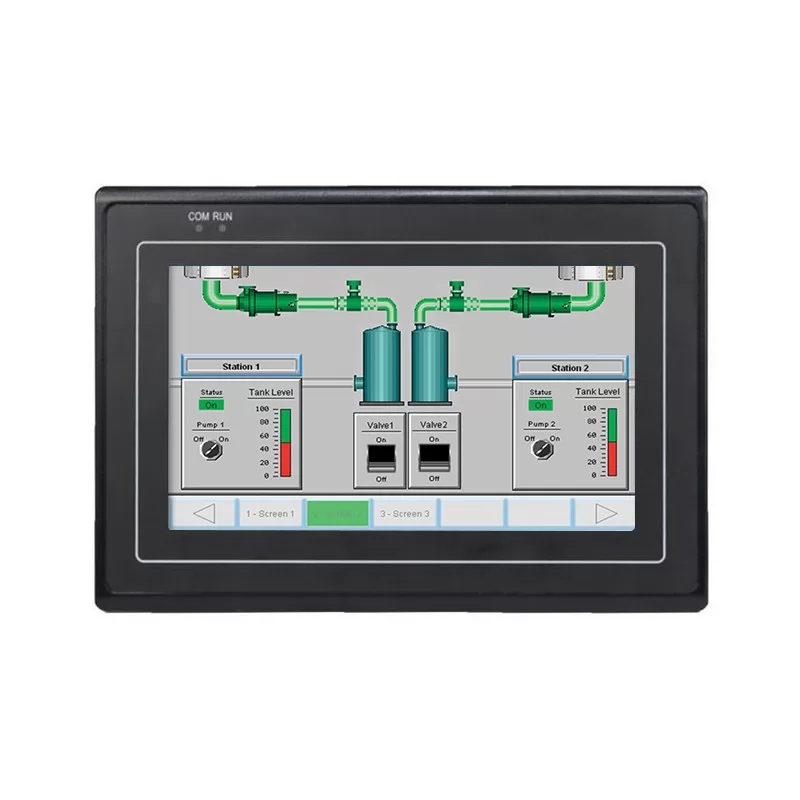

Industrial Control ARM Core Board Serial Screen

Quick Details:

Panel size7"Brightness450 cd/ m2
Touch TypeResistiveInterfaceUSB, COM*2
Resolution800*480BacklightLED
CPUARM9Memory128Mbyte FLASH

Feature

  1. DC24V(working range 10.8v-30v), anti reverse connection;

  2. 4-wire resistive touch screen; support capacitive touch screen;

  3. LCD resolution 800*480, 450cd/m2 support backlight adjustment;

  4. 128M byte SPI NAND FLASH, support power failure data saving;

  5. Download Type: SD card download, USB Download, U disk download;

  6. Support RTC clock.

  7. IO: Micro USB, USB TYPE-A; COM1: TTL,RS232,RS485 communication (optional); COM2: RS232, RS485 communication (optional).


Specification

Product specifications
Hardware Performance
Model
SMZ070P24
Display
7" TFT LCD
Resolution
800X480
Color
260,000
Brightness
450 cd/m2
Backlight
LED
LED life
20,000h
Touch screen
4-wire industrial electronic touch screen (surface hardness 4h), supporting capacitive touch screen.
CPU
32 bit 600MHz main frequency ARM9 with 32MB DDR memory
Memory
128Mbyte SPI NAND FLASH
RTC
Built-in real-time clock
Ethernet
Without
Power failure data storage
Support
USB port
1 USB2.0 Device port, 1 USB2.0 HOST port
Program download mode
USB,U disk,SD card
U disk
Support
Communication port
COM1: RS232, RS485, TTL optional
Com2: RS232, RS485 optional
Electrical
Specification
Rated power
3.5W
Rated voltage
DC 24V
Power protection
With + / -2KV lightning surge protection ability
Allowable power failure
<5ms
CE&ROHS
According to EN61000-6-2:2005, EN61000-6-4:2007 standards,
lightning surge +/- 2KV, group pulse +/- 4KV,
electrostatic contact discharge +/- 4KV,
electrostatic air discharge +/- 8KV
Environmental Specification
Working temperature
-20℃~50℃
Storage temperature
-40℃~70℃
Environmental humidity
10~90%RH(no condensation)
Vibration resistance
10-25Hz(X,Y,Z direction,2g/30 minutes)
Cooling mode
Natural air cooling
Other
Effective display area
153mm*85mm
Opening size
180mm*80mm
Dimensions
189mm*105mm
net weight
280g
