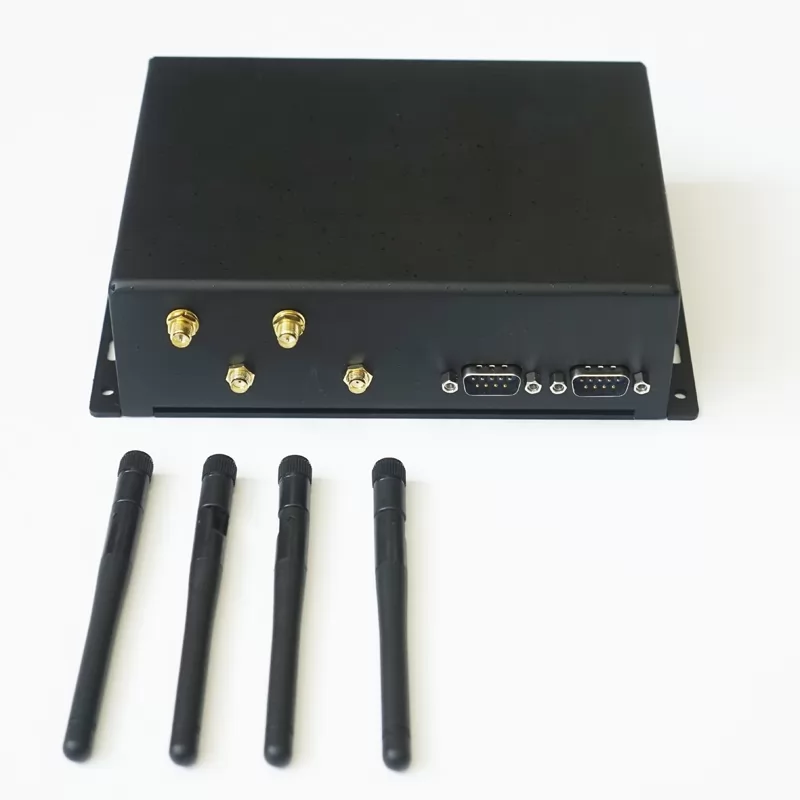

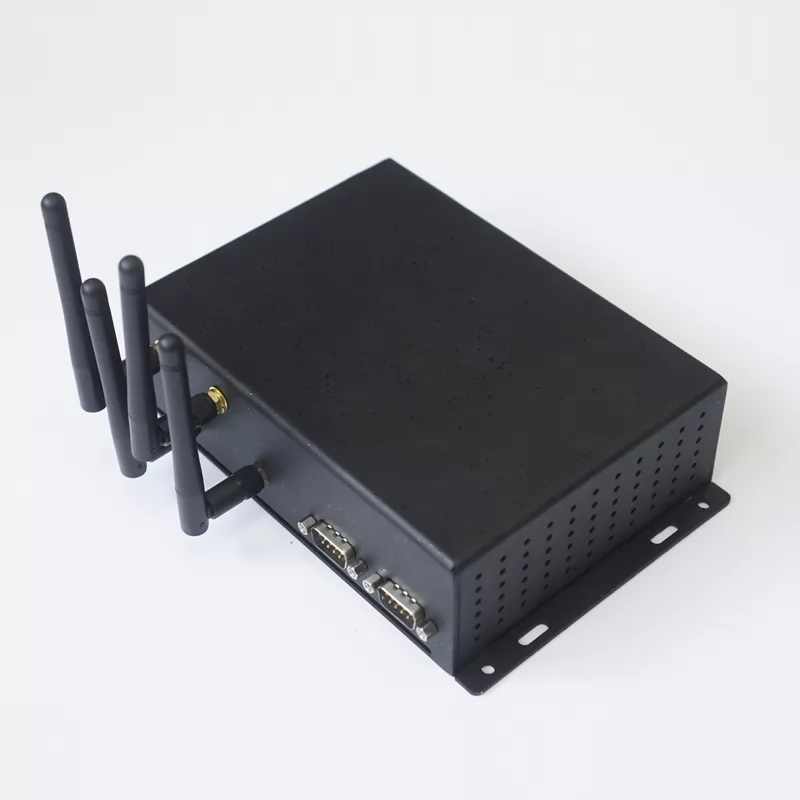

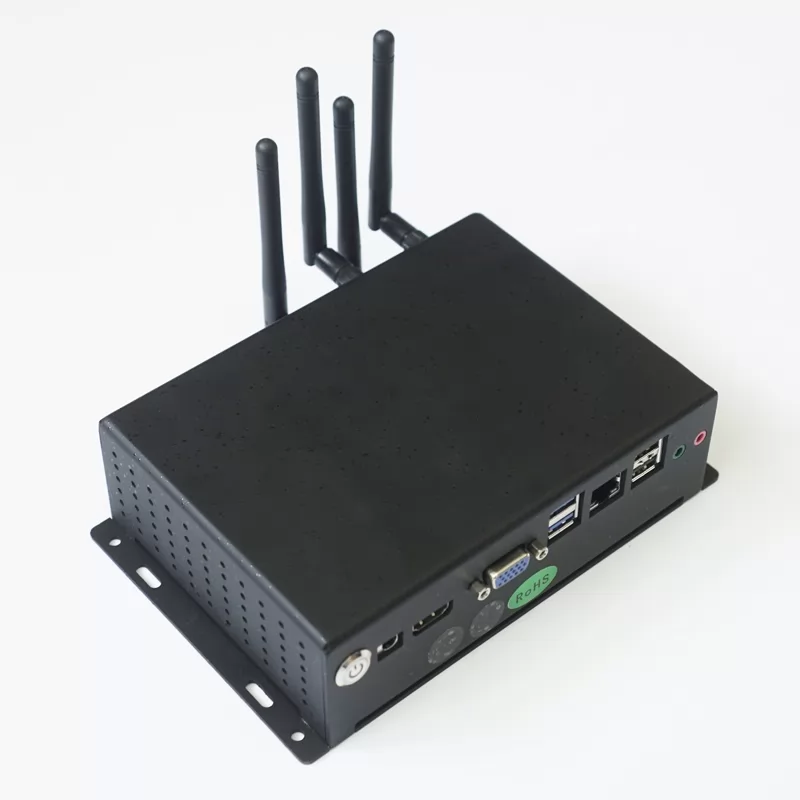

Fanless Mini BOX PC with XBEE PRO S2C Modules

Quick Details:

CPUIntel Celeron J1900RAM2G
Hard Drive32GWireless NetworkWIFI
BluetoothBLE4.0XBEE2*XBEE
Case MaterialAluminum alloyWarranty1 year



Features:

1. Sealed construction with fanless design, noiseless, low-power consumption design.

2. Aluminum alloy brushed metal craft, compact, low weight design, excellent heat dissipation.

3. Suitable for harsh operating environment, dustproof, anti-corrosion, shockproof, anti-vibration.

4. High performance motherboard, 7x24 continuous operation.

5. Wide operating temperature support.

6. With high electromagnetic compatibility and anti-interference capacity.

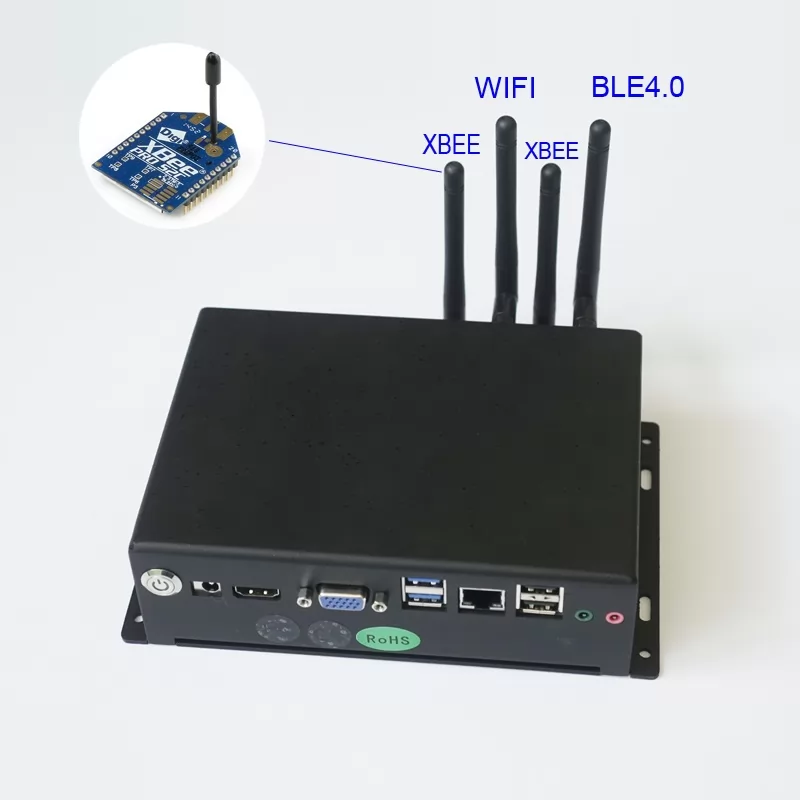

7. With 2*XBEE PRO S2C modules, apply to IOT


Specification:

PC
CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
ChipsetIntel Valley View SSA-CUnit
Memory2G DDR3 (4G, 8G optional)
Hard Drive Capacity32G SSD (64G, 128GB, 256GB optional)
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI
BluetoothBLE4.0

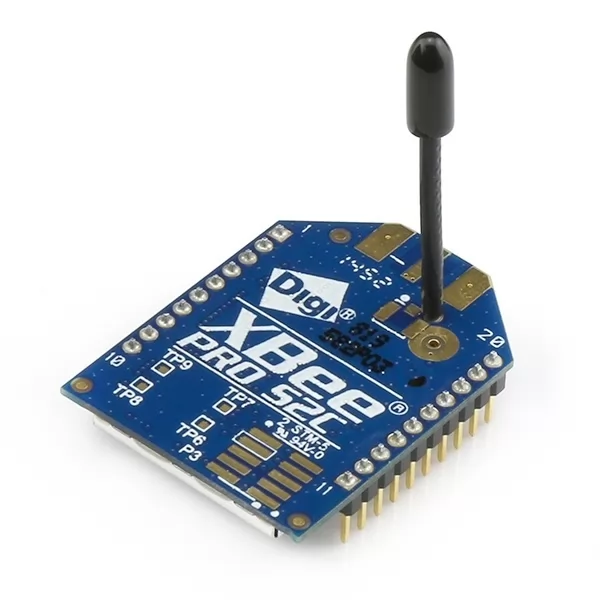

XBEE2*XBEE PRO S2C 63mW wire antenna Zigbee

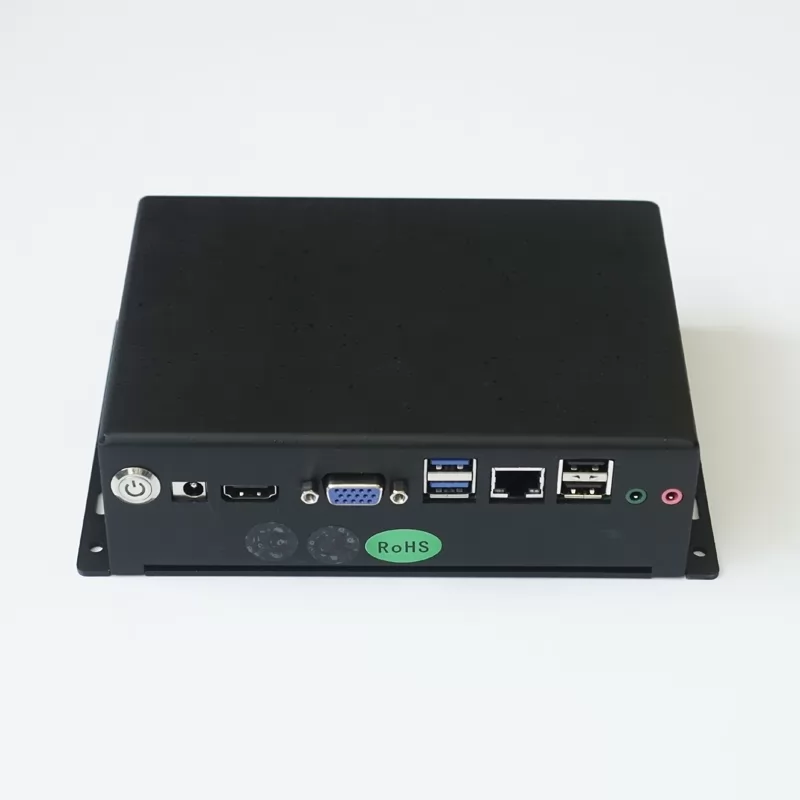

Front I/O Ports1*DC, 1*HDMI, 1*VGA, 2*USB3.0, 2*USB2.0, 1*RJ45, 1*Audio IN/OUT, 1*Power Button
Rear I/O Ports2*RS232
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption≤30W
Enclosure
MaterialAluminum Alloy
ColorSilver, Black, white, color can be customized
VESA mounting75×75mm
Operating Environment
Temperature Rangeoperating: -20 to 65°C, storage: -40 to 80°C
Relative humidity20%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight0.65kg
Gross weight1.5kg
Product Dimension188*122*52mm
Packing size240*200*110mm
AccessoriesPower adapter, embedded screws, user manual, warranty card
Other
Mounting (options)embedded mounting screws
wall/desk mounting brackets (optional)
Warranty1 year warranty

Mini BOX PC with XBEE Modules
