Specification
| Model:R-Q15SV | |
| PC | |
| CPU | MSM 8953, 2.0GHZ |
| GPU | Adreno 506 1920 × 1200 @ 60 fps |
| RAM | 4GB/ LPDDR3 |
| SSD | 64GB |
| Indicator light | Indicator light of charge, red light will flash when device has low power. red long light when charging, green long light when full power |
| Compass | 1*Compass Sensor |
| Gyro Sensor | 1*Gyro Sensor |
| G_sensor | G_sensor |
| WIFI | WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v) |
| Bluetooth | BT4.2 (BLE) class 1, Transmission distance: 10m |
| 2/3/4G | LTE FDD: B1/B3/B5/B7/B8/B20/B28A; LTE TDD: B38/B40/B41; WCDMA: B1/B2/B5/B8; GSM: 850/900/1800/1900MHz |
| GPS | Support: GPS+Glonass; Capture sensitivity: -140 dBm; Cool Start Time: <50s, Hot start time: <5s, GPS frequency: 1575.42MHz,Glonass frequency: 1602MHZ |
| Camera | Front:5.0MP, Rear: 13MP auto-facus with flashlight |
| Speaker | 8Ω/0.8W waterproof BOX speaker*1 |
| Mic | Sensitivity:-42db, output impedance 2.2kΩ |
| Operation System | Android 9.0 |
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 800*1280 IPS |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | Minimum 700cd/m2 |
| Touch panel | |
| Touchscreen Type | 10 points capacity TP, G+G |
| Surface Hardness | 7H |

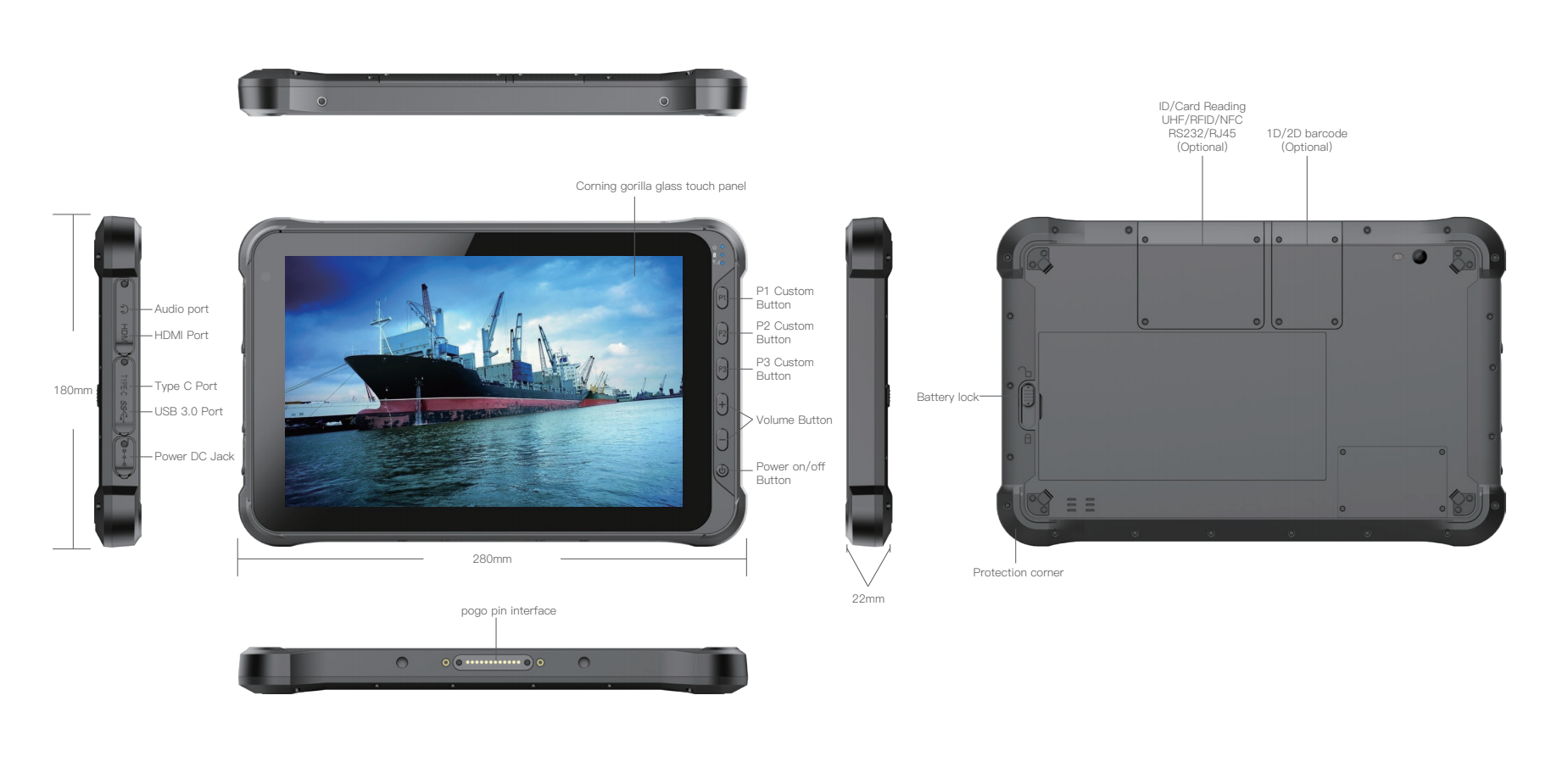

| Interface | |
| USB | 1*USB 2.0 |
| Type C | 1*USB OTG/chargeing |
| Audio Output | 1*3.5mm |
| HDMI | 1*Mini HDMI |
| TF Slot | 1*TF Slot, support SDHC/SDXC*1 max: 64G |
| SIM | 2*SIM |
| Power | 1*DC 5.5V 4A |
| Pogo Pin | 1*12pin Pogo Pin |
| OTG cable | USB OTG to MICRO USB cable length:45mm |
| USB cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Supply | |
| Power Adaptor | AC100V ~ 240V, 50Hz/60Hz, Output DC 5.5V/4A |
| Battery | build in polymer li-ion battery |
| Capacity: 3.7V/10000mAh | |
| nearly 7 hours(50% volume sounds,50% brightness, 1080P HD video display by default) | |
| Operating Environment | |
| IP grade | IP65 waterproof |
| Drop Height | 1.22cm composite wood floors, in operation status |
| Operate Temperature | -20 °C to 60 °C |
| Store Temperature | -30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| Packing Details | |
| Net weight | 1085g |
| Gross weight | 2118g |
| Product Dimension | 280*180*22 mm |
| Packing size | 384*208*90mm |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
| Color | black |
| Module extension (Optional) | |
| One-dimension barcode | Honeywell N4313, optical resolution:5mil, scan speed:50/s, Support code system: UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11 |
| Two-dimension barcode | Zebra SE4710, optical resolution:5mil, scan speed:50/s, support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
| Fingerprint | 070-Hello fingerprint module, FPC1020(sensor，capacity press type) fingerprint effective area: 10mm x10mm more high resolution: 192x192pixel/508DPI |
| NFC | NFC-ST21 |
| Serial | 1*RS232 |
| Ethernet interface | 1*(10/100M self-adaption) with indicator light |
| UHF-RFID | UFH, Working spectrum range 902Mhz-928Mhz, inventory tag peak velocity > 50 pcs /second |
| ID Module | support reading the fingerprint information in the 1st and 2nd ID card Port: USB or TTL serial port optional power 5v or 3.3v, size: 53mm*52mm*10mm |
| Optional Accessories | |

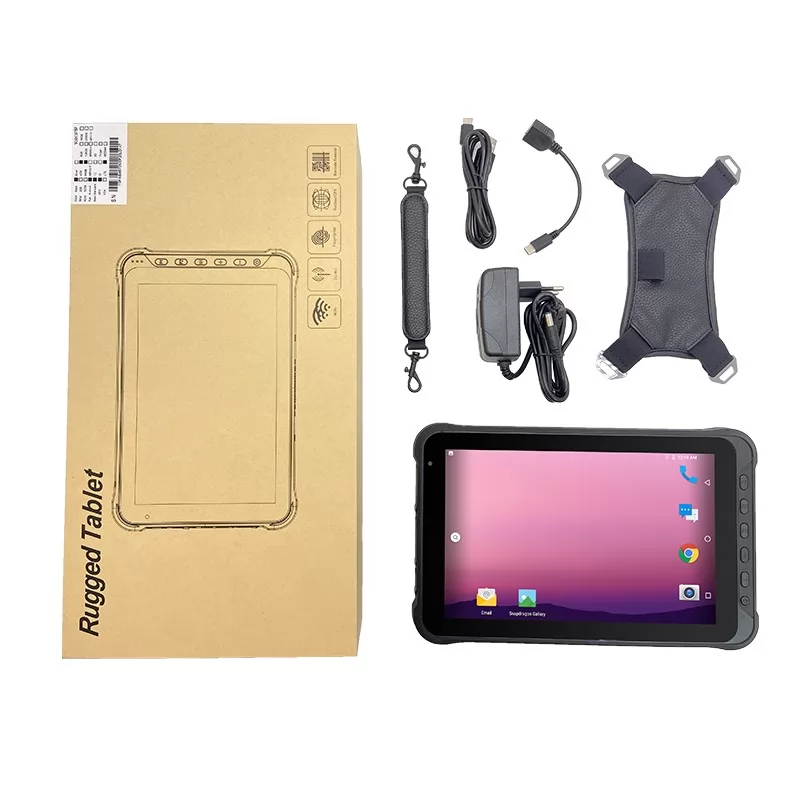

| Accessories | Docking Charger, Hand-strap, Vehicle Mount, Removable Battery |
