Features
1. Multiple target tracking (Be able to check 20 perspm together).
2. Fast readings (suitable for lot of people walking through).
3. Support both thermal image and normal image of the person on the same screen.
4. Temperature measure range from -15℃ ~ 150℃.
5. Temperature readings is easy to cross check with standard Excel temperature plate.
6. Reliable temperature-anomaly color.
7. NETD is less than 60 mk (@25℃,F#=1.0).
8. Support contrast adjustment.
9. Support multiple languages: English, Korean, Japanese, Spanish, Portuguese, French, Italian, German, etc.
Specification
Model: SH-C200T | |
Thermal imaging module | |
Sensor type | Silicon oxide uncooled infrared focal plane detector |
Resolution | 256x192 |
Pixel size | 12μm |
NETD | ≤60mk @25℃,F#=1.0 |
Temperature measurement accuracy | Object temperature35℃~38℃: accuracy ± 0.3 ℃ |
Object temperature 20℃~33℃ or 38℃~50℃:accuracy ± 0.6 ℃ | |
Other temperature range: ± 2 ℃ | |
Image model | Black hot/White hot/iron red/iridescence etc. |
Visible light module | |
Imaging sensor | 1/2.8”2.0M Pixel CMOS |
Minimum illumination | 0.005Lux @F1.2(Color mode), 0.001Lux @F1.2(Black/white mode) |
Wide dynamic range | ≥80dB |
Signal to Noise Ratio | ≥46dB (AGC OFF) |
Focal length | 4mm |
AI function | |
Automatic face capture | Built-in deep learning AI algorithm, support simultaneous detection of 20-30 faces, face detection, exposure, scoring, screening, snapshot upload, support FTP, HTTP and other methods to upload faces, head and shoulders, upper body, full body, original image, etc. |
Temperature measurement | Support whole and part temperature measurement |
Abnormal temperature alarm | High temperature limit, Low temperature limit ,Zone temperature difference alarm |
Functions | |

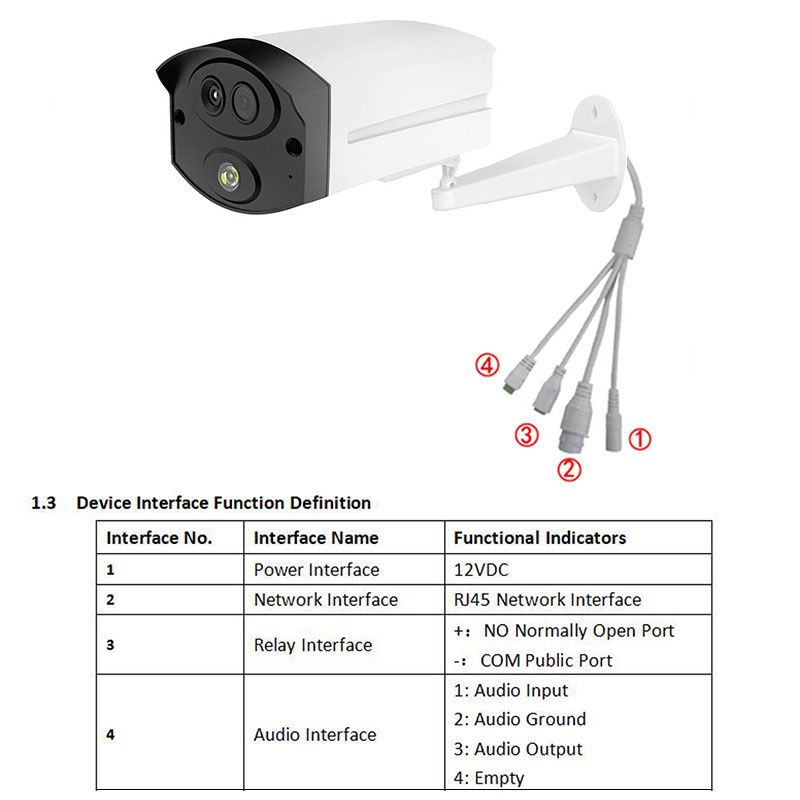

Network protocol | Support RTSP, RTP, TCP, UDP, UPNP, DHCP, PPPoE, ONVIF, GB / T 28181 protocol, etc. |
Network port | 1 channel 10 / 100BaseT Ethernet, RJ45 interface |
Alarm interface | Reserved |
Audio port | Reserved |
General specifications | |
Operating temperature | -20℃~55℃ |
Working humidity | 0% -90% RH (no condensation) |
IP grade | IP67 |
Power supply | 12V DC |
Power consumption | ≤5W (without heating) |
Product dimension | 246mm * 101mm * 81mm (with bracket) |
Weight | <1kg |
Other | |
Accessories | Tripod (Optional) |
LCD display (self-provided ) | |
Warranty | 1 year warranty |
Face and temerature detection camera applied to public equipment sanitation
